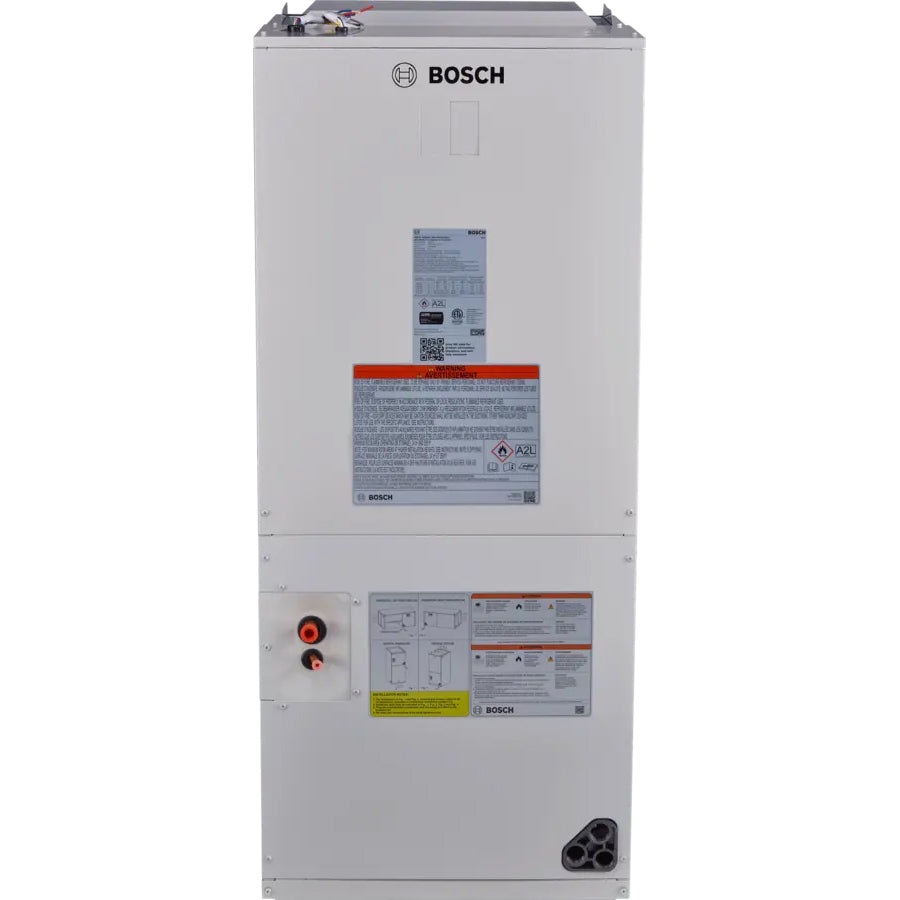

Bosch 8733965418 Premium Air Handler Unit 5 Ton

Product Description

The Bosch 8733965418 multi-position air handler delivers maximum efficiency while keeping sound levels to a minimum. Designed for horizontal, vertical, or counterflow installation, this unit pairs with the BOVA15 outdoor condensing unit to form the IDS Plus or BOVA20 for the IDS Premium Connected. It uses the A2L refrigerant R-454B, meeting low-global warming potential requirements.

• Pairs with BOVA15 or BOVA20 outdoor units
• Features an all-aluminum coil for superior corrosion resistance
• Equipped with a standard ECM Constant Torque Fan Motor with 5 speeds

Product Highlights

The BIVA20 air handler features an all-aluminum coil, a two-stage ECM motor, and a painted galvanized steel cabinet. It also has integrated horizontal and vertical primary drain pans.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733965418

Technical Specifications

• Manufacturer Name: Bosch Thermotechnology
• Manufacturer: Bosch
• Product Type: Air Handler
• Tonnage: 5
• Refrigerant Type: R-454B
• Cabinet Width: 22"
• Air Handler Type: Singular (1-Piece)
• Brand: Bosch
• Coil Construction: Aluminum
• Configuration: Multi-Position
• Electrical Characteristics: 208-230V 1Ph, 60Hz
• Mfg. Part #: 8-733-965-418
• Motor Type: Multi-Speed Constant Torque (MCT) ECM
• Nominal Capacity: 5.0 Ton
• Refrigerant: R454B
• Thermostat: 24V
• Cooling: Two
• Filter Size: 20" x 22" in.
• Liquid Line Size: 3/8" in.
• Return Air Opening: 18-13/16" x 23-7/8" in.
• Series: IDS Premium Series
• Suction Line Size: 7/8" in.
• Supply Air Opening: 19-1/2" x 10-5/16 in.
• Unit Dimensions (W x D x H): 22" x 24" x 54-1/2" in.
