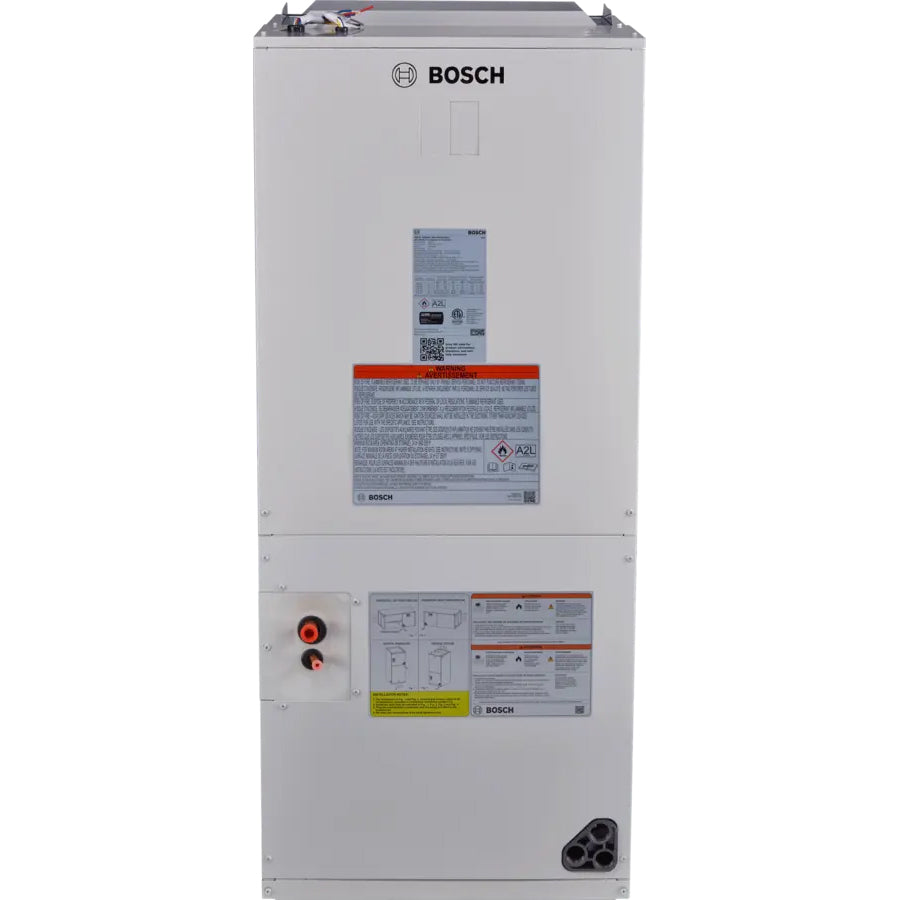

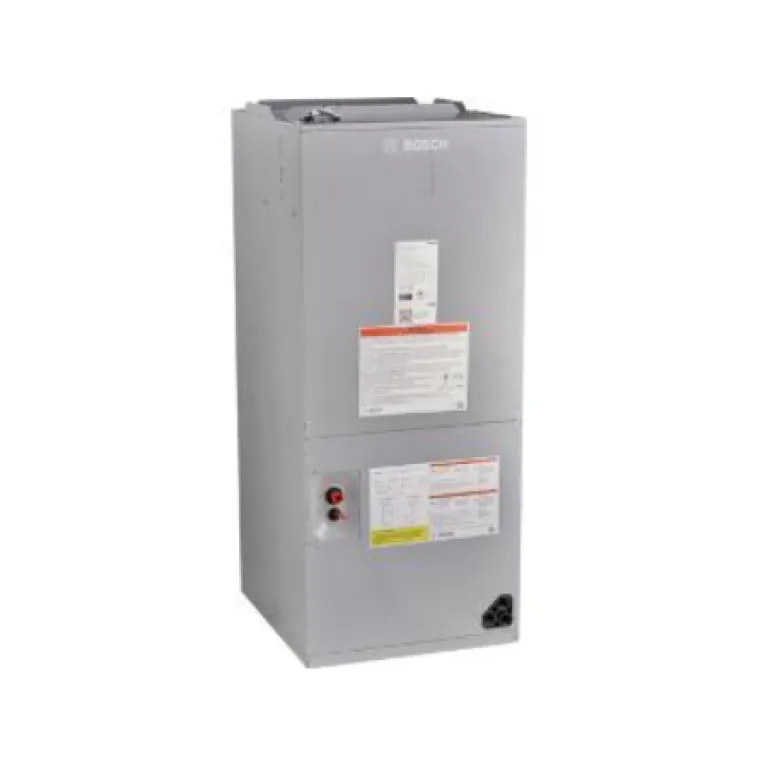

Bosch 8733965416 3 Ton Premium Air Handler Unit 20 SEER2 R454B

Product Description

The Bosch 8733965416 BIVA20 pairs with the BOVA15 outdoor condensing unit to form the IDS Plus or the IDS Premium Connected, systems, meeting low-GWP requirements. The Bosch Multi-Position Air Handler can be installed with ease. The BIVA20 comes equipped with foil-faced insulation, a five-stage ECM Constant Torque fan motor, and an all-aluminum air coil.

• Pairs with the BOVA15 outdoor condensing unit for IDS Plus (up to 18 SEER2) or the BOVA20 for IDS Premium Connected (up to 20 SEER2)
• Aluminum coils for superior corrosion resistance
• Standard ECM Constant Torque Fan Motor with 5 available speeds

Product Highlights

The Bosch 8733965416 air handler delivers maximum efficiency while keeping sound levels to a minimum. Ideal for upflow, horizontal left or right, and downflow installation.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733965416

Technical Specifications

• Cooling Capacity: 34,200 Btu/hr
• Heating Capacity: 34,200 BTU/hr
• Nominal Capacity: 3 ton
• Filter Size: 18 x 20 in
• Liquid Line Size: 3/8 in
• Manufacturer: Bosch Thermotechnology
• Manufacturer #: 8-733-965-416
• Motor HP: 1/2 HP
• Mounting Type: floor
• Phase: 1
• Refrigerant Type: R-454B
• SEER2 Rating: 20
• Series: BIVA20
• Sound Level: 59.7 to 70.4 dBA
• Suction Line Size: 3/4 in
• Voltage Rating: 208 / 230 V
• Product Type: Air Handler
• Tonnage: 3
• SEER: 20
• Cabinet Width: 19.5"
