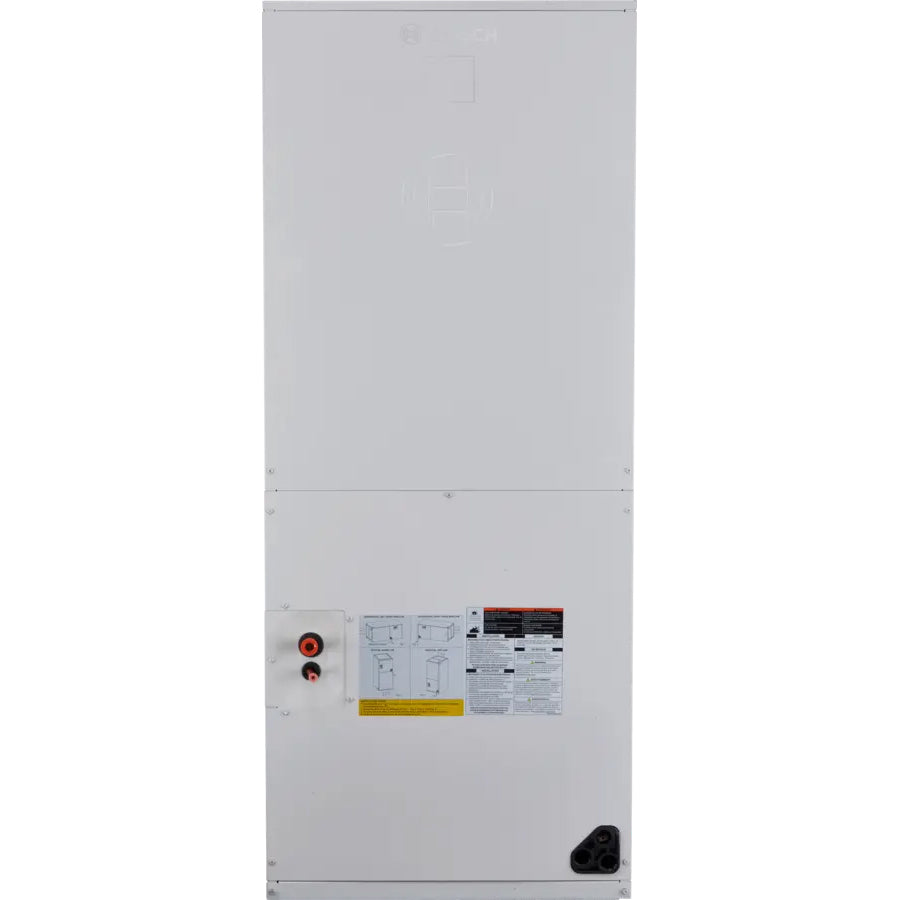

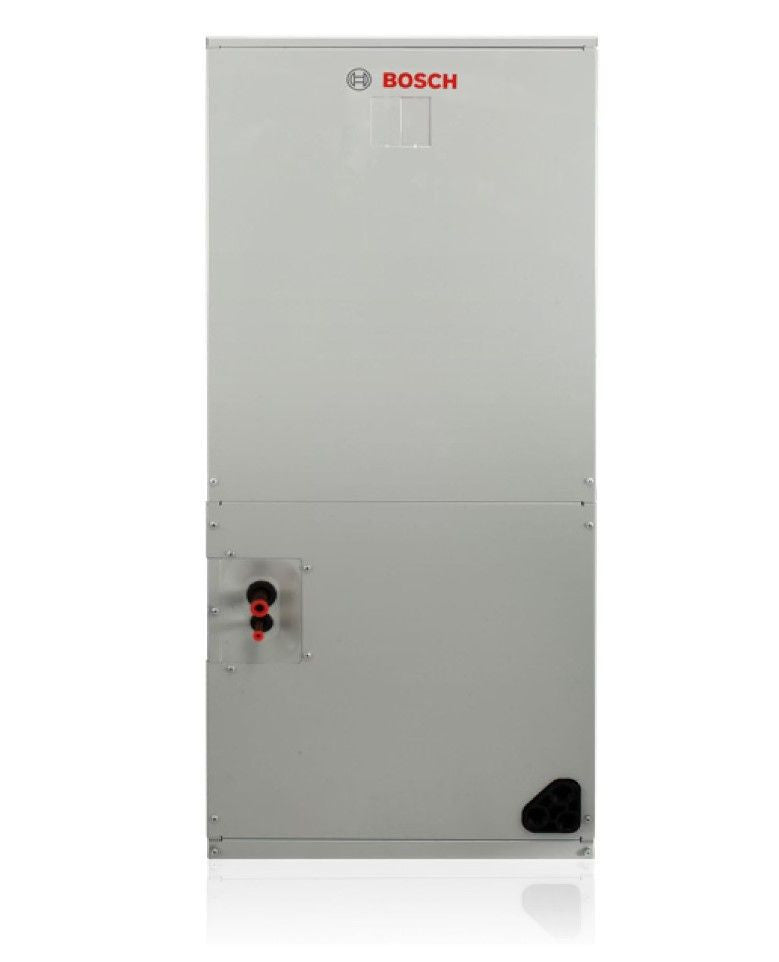

Bosch 8733958905 IDS 3.0 5 Ton 60K BTU Air Handler Unit R454B

Product Description

The Bosch 8733958905 IDS 3.0 air handler unit is designed to pair with the Bosch BOVA Ultra Series outdoor unit, creating an efficient cold climate heat pump system. The four-stage motor allows the air handler to adjust for enhanced comfort, energy savings, and humidity control. It supports both standard 4-wire and new 2-wire digital communication with the IDS Ultra.

• Pairs with the Bosch BOVA Ultra Series Outdoor unit
• Equipped with four-stage motor
• Provides either standard 4-wire communication or new 2-wire digital communication to the IDS Ultra

Product Highlights

This Bosch air handler provides enhanced control and performance, optimizing comfort and energy savings in residential applications. It uses R-454B refrigerant.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733958905

Technical Specifications

• Product Type: Air Handler
• Tonnage: 5
• Refrigerant Type: R-454B
• Air Handler Type: Singular (1-Piece)
• Brand: Bosch
• Coil Construction: Aluminum
• Configuration: Multi-Position
• Electrical Characteristics: 208-230V 1Ph, 60Hz
• Mfg. Part #: 8-733-958-905
• Motor Type: Multi-Speed Constant Torque (MCT) ECM
• Nominal Capacity: 5.0 Ton
• Refrigerant: R454B
• Thermostat: 24V
• Cooling: Four
• Filter Size: 20" x 22" in.
• Liquid Line Size: 3/8" in.
• Return Air Opening: 18-13/16" x 23-7/8" in.
• Series: IDS Ultra Series
• Suction Line Size: 7/8" in.
• Supply Air Opening: 19-1/2" x 10-5/16 in.
• Unit Dimensions (W x D x H): 22" x 24" x 54-1/2" in.
• SEER2: 19
