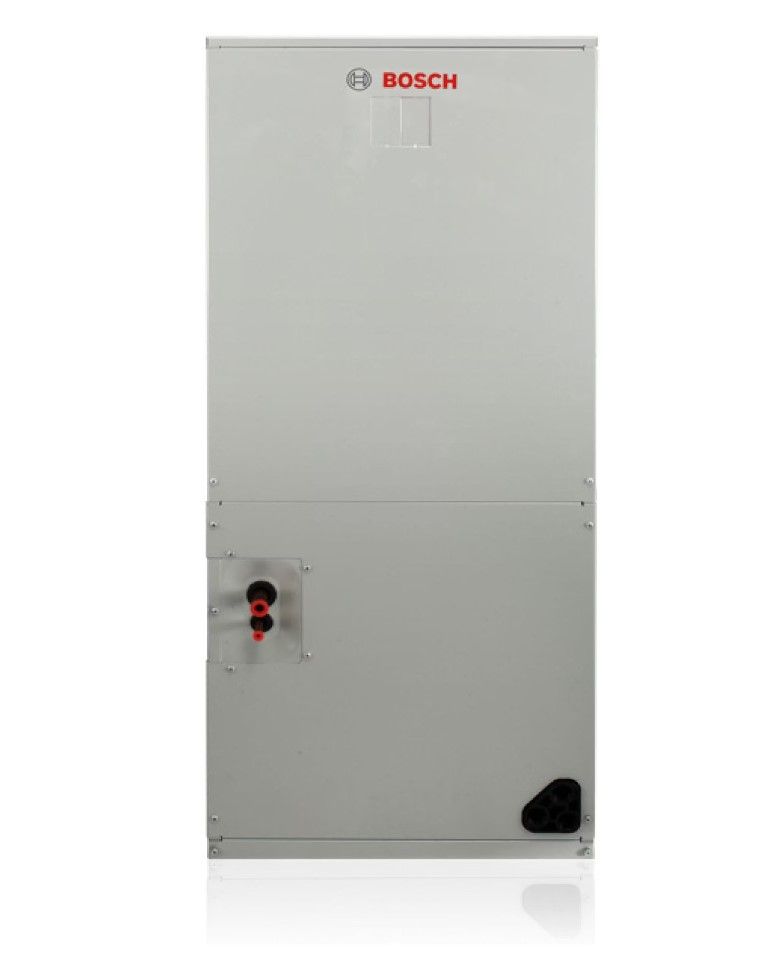

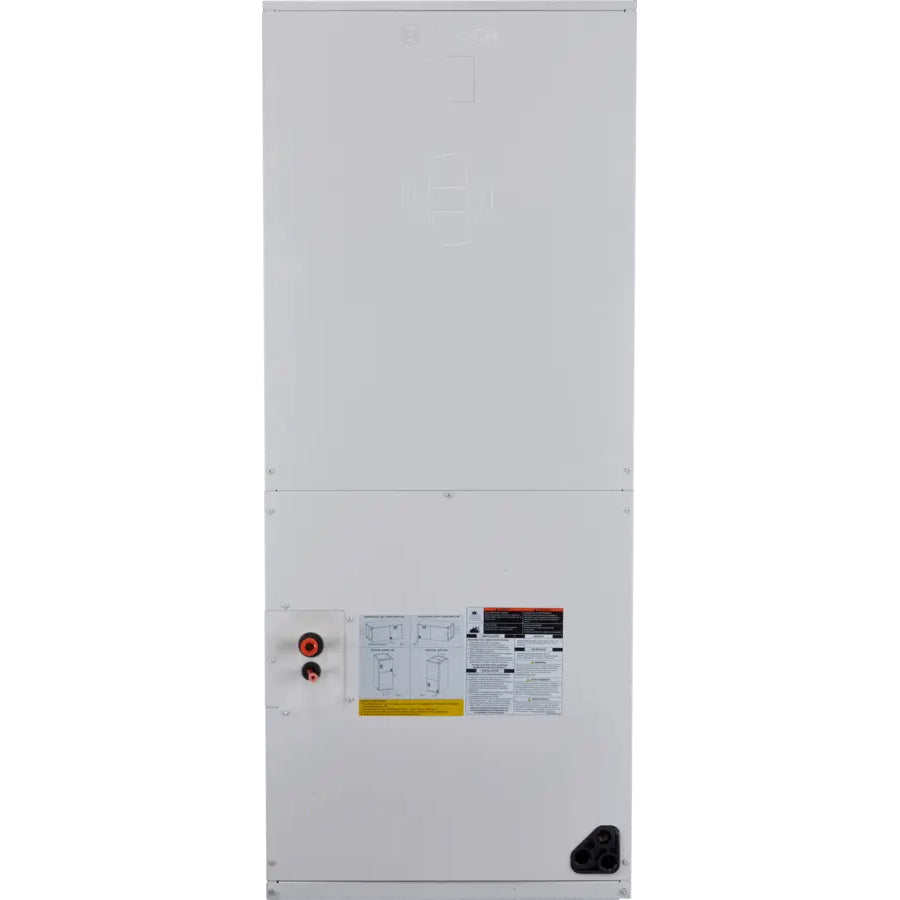

Bosch 8733958904 IDS 3.0 Air Handler Unit 4 Ton R454B

Product Description

The Bosch 8733958904 IDS 3.0 Air Handler unit pairs with the Bosch BOVA Ultra Series outdoor unit for a highly efficient cold climate heat pump system. The four-stage motor enables staging up and down for enhanced comfort, energy savings, and superior humidity control. It provides standard 4-wire or new 2-wire digital communication to the IDS Ultra.

• Pairs with the Bosch BOVA Ultra Series Outdoor unit
• Equipped with four-stage motor
• Provides either standard 4-wire communication or new 2-wire digital communication to the IDS Ultra
• The A2L refrigerant, R-454B, meets low-global warming potential (Low-GWP) requirements

Product Highlights

The Bosch IDS Ultra Air Handler offers enhanced comfort, energy savings, and superior humidity control. It features wireless connectivity and remote monitoring.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733958904

Technical Specifications

• Manufacturer Name: Bosch Thermotechnology
• SEER2: 19
• Product Type: Air Handler
• Tonnage: 4
• Refrigerant Type: R-454B
• Air Handler Type: Singular (1-Piece)
• Brand: Bosch
• Coil Construction: Aluminum
• Configuration: Multi-Position
• Electrical Characteristics: 208-230V 1Ph, 60Hz
• Mfg. Part #: 8-733-958-904
• Motor Type: Multi-Speed Constant Torque (MCT) ECM
• Nominal Capacity: 4.0 Ton
• Refrigerant: R454B
• Thermostat: 24V
• Cooling: Four
• Filter Size: 20" x 22" in.
• Liquid Line Size: 3/8" in.
• Series: IDS Ultra Series
• Suction Line Size: 7/8" in.
• Supply Air Opening: 19-1/2" x 10-5/16 in.
• Unit Dimensions (W x D x H): 22" x 24" x 54-1/2" in.
• Return Air Opening: 18-13/16" x 23-7/8" in.
