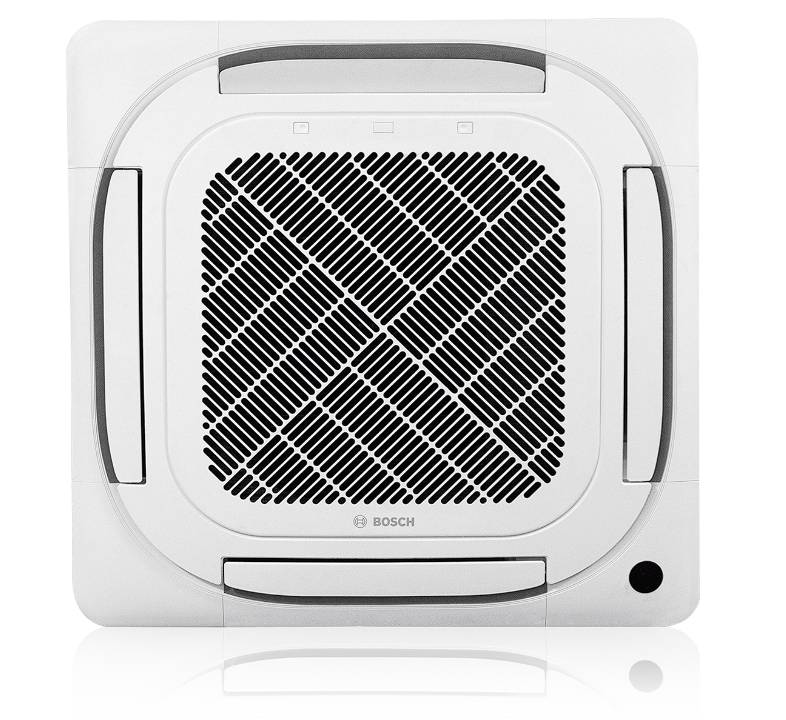

Bosch 8733956187 Minisplit Universal Cassette 36k Btu

Product Description

The Bosch 8733956187 is a minisplit universal cassette with a cooling capacity of 36k Btu. Designed for single-zone light commercial systems, this unit operates at 230V. It is part of the Climate 5000 series and offers both cooling and heating capabilities. The system includes both indoor and outdoor components for comprehensive climate control.

• Cooling capacity of 36000 Btu/h
• Heating capacity of 38000 Btu/h
• Operates on 208-230V power supply

Product Highlights

The Bosch 8733956187 minisplit universal cassette provides efficient cooling and heating for light commercial applications, ensuring optimal climate control.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733956187

Technical Specifications

• Indoor part number: 8733956187
• Indoor model number: BMS500-AAU036-1AHCXC
• Outdoor part number: 8733956197
• Outdoor model number: BMS500-AAS036-1CSXLC
• Cooling Capacity (Btu/h): 36000
• Cooling Input (W): 4000
• Cooling Rated current (A): 17.61
• EER (Btu/w): 9.0
• SEER (Btu/w): 18.2
• Heating Capacity (Btu/h): 38000
• Heating Input (W): 3700
• Heating Rated current (A): 16.93
• COP (W/W): 3.01
• HSPF4: 10.6
• HSPF5: 8.5
• Power supply (V / / Hz): 208-230 / 1 / 60
• Min. circuit ampacity indoor/outdoor (A): 2.5 / 30.0
• Max. fuse indoor/outdoor (A): 15.0 / 45.0
• Compressor Type: Rotary
• Refrigerant oil /oil charge (ml): VG74 / 1000
• Compressor Input (W): 2600
• Compressor Rated current (A): 23.5
• Refrigerant precharge (oz/g): 112.9 / 3200
• Length for precharge (ft/m): 25 / 7.6
• Liquid side (in/mm): 3/8" / 9.52
• Gas side (in/mm): 5/8" / 15.9
• Additional charge per ft (oz/g): 0.32 / 30
• Max. refrigerant pipe length (ft/m): 213 / 65
• Max. difference in height (ft/m): 98 / 30
• Refrigerant type: R410A
• Design pressure (PSIG): 550/340
• Dehumidification (pts/hr): 5.50
• IDU Fan motor model: ZKFN-125-8-1
• IDU Fan motor qty (ea): 1
• IDU Fan motor input (W): 157
• IDU Fan speed (RPM): 760 / 632 / 568
• IDU Air flow, H / M / L (CFM): 947 / 853 / 753
• IDU Noise level, H / M / L (dB(A)): 52.5 / 50 / 46.5
• IDU Net weight (lbs / kg): 59.97 / 27.2
• IDU Gross weight (lbs / kg): 69.00 / 31.3
• Panel net weight (lbs / kg): 13.23 / 6
• Panel gross weight (lbs / kg): 19.84 / 9
• Drain pipe diameter (mm): OD25
• ODU Fan motor model: ZKFN-120-8-2
• ODU Fan motor qty (ea): 1
• ODU Fan motor input (W): 150.0
• ODU Fan motor speed (RPM): 1050 / 900 / 850
• ODU Air flow, Max (CFM): 2118
• ODU Noise level, Max (dB(A)): 65.0
• ODU Net weight (lbs / kg): 155.42 / 70.5
• ODU Gross weight (lbs / kg): 166.23 / 75.4
