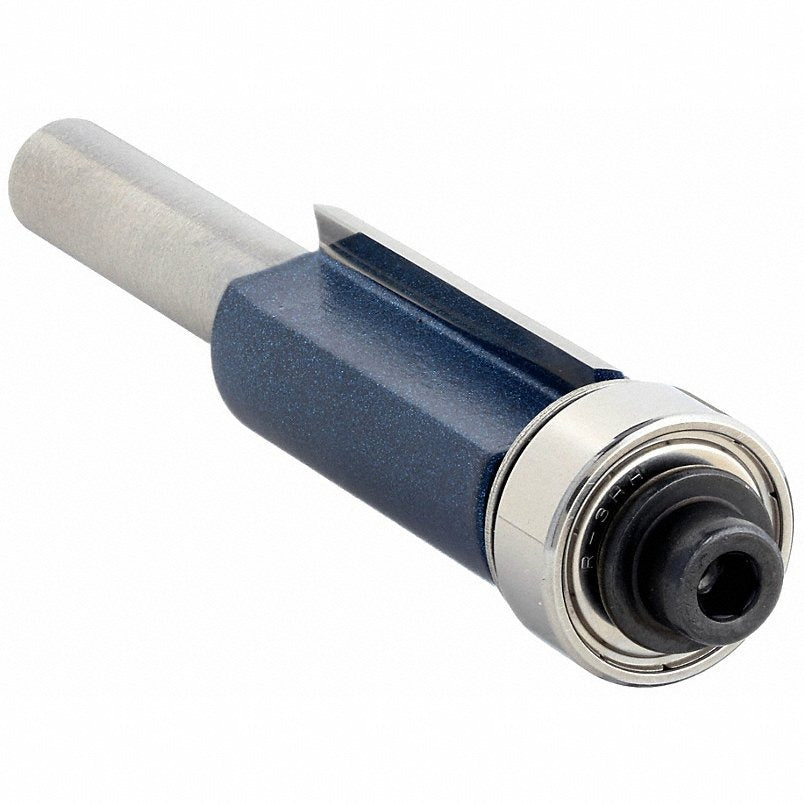

Bosch 85269m Flush Trim Router Bit 3/8 in Carbide 2 Flute

Product Description

The BOSCH 85269m is a flush trim profile router bit designed to trim stacked materials to a clean, flush edge. Carbide tipped for durability, it features a 3/8-inch cutter diameter, a 1/4-inch shank diameter, and two flutes for smooth finishing cuts. The 1/8-inch radius and 1/2-inch flute length make it suited for fine detail work in wood applications. It is sold individually and is intended for use by finish carpenters, cabinetmakers, and millwork professionals who require consistent edge results.

This router bit is commonly used to trim shelf caps flush with shelves, face frames flush with cabinet sides, and laminate countertops. It is also well suited for template and pattern routing work. The 0-degree included angle produces a straight, perpendicular cut along the bearing-guided path, making it reliable for repetitive production tasks in residential and commercial woodworking environments.

Key Features

• Carbide tipped cutting edge for extended service life in wood applications
• 3/8-inch cutter diameter with 1/2-inch flute length for controlled material removal
• 1/4-inch shank diameter compatible with standard router collets
• Two-flute design delivers smooth finishing cuts with reduced tearout
• 1/8-inch radius profile for flush trim and pattern work
• Made in the USA (subject to change)

Compatibility

Designed for use in routers accepting a 1/4-inch collet. Suitable for flush trim, template, and pattern routing applications in wood.

Installation Notes

Installation should be performed by a qualified woodworking professional or experienced operator. Always power down and unplug the router before changing bits. Insert the shank fully into the collet and tighten to the router manufacturer's specified torque range as listed in the tool's manual. Inspect the bit for cracks or wear before each use and never operate above the router's rated RPM for the bit diameter.

Technical Specifications

• Cutter Diameter: 3/8 inches
• Shank Diameter: 1/4 inches
• Flute Length: 1/2 inches
• Shank Length: 1-7/8 inches
• Number of Flutes: 2
• Radius: 1/8 inches
• Included Angle: 0 degrees
• Shape: Flush Trim
• Material: Carbide Tipped
• Primary Material Application: Wood
• Measurement System: Fractional Inch
• Configuration: Individual
• Application: Finishing
• UNSPSC: 27112821
• Country of Origin: USA (subject to change)

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 85269m
