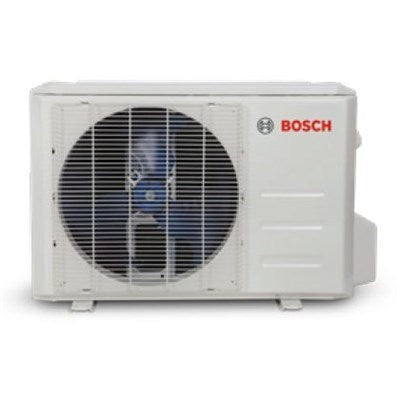

Bosch 8-733-956-193 Bms500-Aas009-1Csxhc Minisplit 9Kbtu 1 Zone Cond Max Gen 3 230V

Product Description

The BOSCH 8-733-956-193 BMS500-AAS009-1CSXHC minisplit is a 9KBTU single zone condensing unit designed for maximum performance. This system efficiently transfers heat, cooling in warm weather and heating in cold weather using advanced inverter technology. It connects to indoor units through a 3-inch hole, offering high efficiency and potentially lowering energy costs.

• Can connect with 1 indoor unit
• 3/4 ton cooling capacity - 12,000 BTU's heating capacity
• 100% heating capacity between -5 degrees and 5 degrees, depending on system configuration

Product Highlights

This minisplit system provides efficient heating and cooling with inverter technology and is compatible with Bosch Connected Control Wi-Fi thermostats.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8-733-956-193

Technical Specifications

• Nominal Cooling: 9000
• Nominal Heating: 12000
• Indoor Matchup: 1
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• SEER: 28.1
• EER: 16.2
• HSPF: 11.5
• Compressor Speed: Inverter
• Suction Line Size: 3/8
• Suction Line Quantity: 1
• Liquid Line Size: 1/4
• Liquid Line Quantity: 1
• Circuit Breaker Capacity: 15.0
• Building Type: Residential
• Length (inches): 13.60
• Height (inches): 21.80
• Width (inches): 34.40
• Type: Hyper Heat
• Indoor or Outdoor: Outdoor
• Single or Multi: Single
• Max Zones: 1
• Voltage: 230
