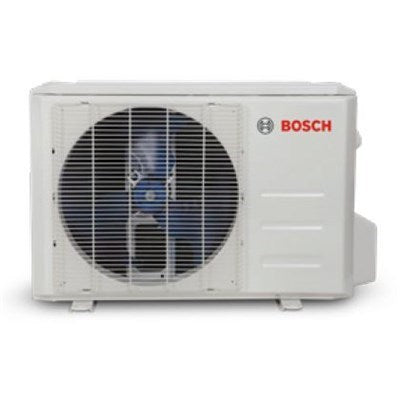

Bosch 8-733-956-185 Ductless Mini-Split Outdoor Single Zone 36K BTU 230/1 VAC R410A

Product Description

The Bosch 8-733-956-185 Climate 5000 Ductless Series provides simple installation, maintenance, and cleaning. It utilizes efficient technologies to achieve up to a 25 SEER rating, reducing electricity usage. It has 100% heating capacity between -5°F and 5° F, depending on system configuration and whisper quiet operation.

• Simple installation, maintenance, and cleaning
• Up to a 25 SEER rating
• 100% heating capacity between -5°F and 5° F, depending on system configuration

Product Highlights

This Bosch ductless mini-split system offers efficient heating and cooling with quiet operation and easy maintenance. Suitable for residential use, it provides a comfortable and energy-saving solution.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8-733-956-185
• Country of Origin: CHN

Technical Specifications

• BTU: 36K
• Voltage: 230/1 VAC
• Refrigerant: R410A
• Cooling BTU: 36000
• Heating BTU: 36000
• Mounting Style: Outdoor Condenser
• SEER: 17.5-20
• Nominal Cooling: 36000
• Nominal Heating: 36000
• Indoor Matchup: 1
• Electrical Designation: 1-60-208/230
• EER: 8.5
• HSPF: 8.0
• Compressor Speed: Inverter
• Suction Line Size: 5/8"
• Suction Line Quantity: 1
• Liquid Line Size: 3/8"
• Liquid Line Quantity: 1
• Circuit Breaker Capacity: 35.0
• Building Type: Residential
• Length (inches): 17.90
• Height (inches): 31.89
• Width (inches): 40.55
• Tonnage: 3
• Ratings/Certifications AHRI - Usage: Outdoor
• Approvals: UL Listed
• Cooling Capacity: 38,800
• Cooling Rated Capacity Btu/h: 36000
• Country of Origin: CHN
• EER2: 8.5
• Energy Star Rated: No
• Prop 65: Yes
• SEER2: 20
• Brand: Bosch
• Equipment Type: Heat Pump
• Product Family: BMS
• Condenser Motor RPM: 850-1,150
• Condenser Motor Watts: 150
• Cycle/Hertz: 60 Hz
• Maximum Overcurrent Protection (MOCP): 35
• Phase: Single
• Rated Current Amps (RCA): 18.5
• Rated Load Amps (RLA): 22
• Substantial Commodity: Steel; Copper; Aluminum; Petroleum
• Heating Capacity @ 5 deg: 20400
• Inverter: Yes
• Liquid Line Fitting Type: Flare
• Maximum Piping Height: 98'
• Maximum Piping Length: 213'
• Number of HVAC Zones: 1
• Suction Line Fitting Type: Flare
• Refrigerant Charge: 119.9 Oz.
• High Heat: No
• Indoor or Outdoor: Outdoor
• Single or Multi: Single
• Max Zones: 1
