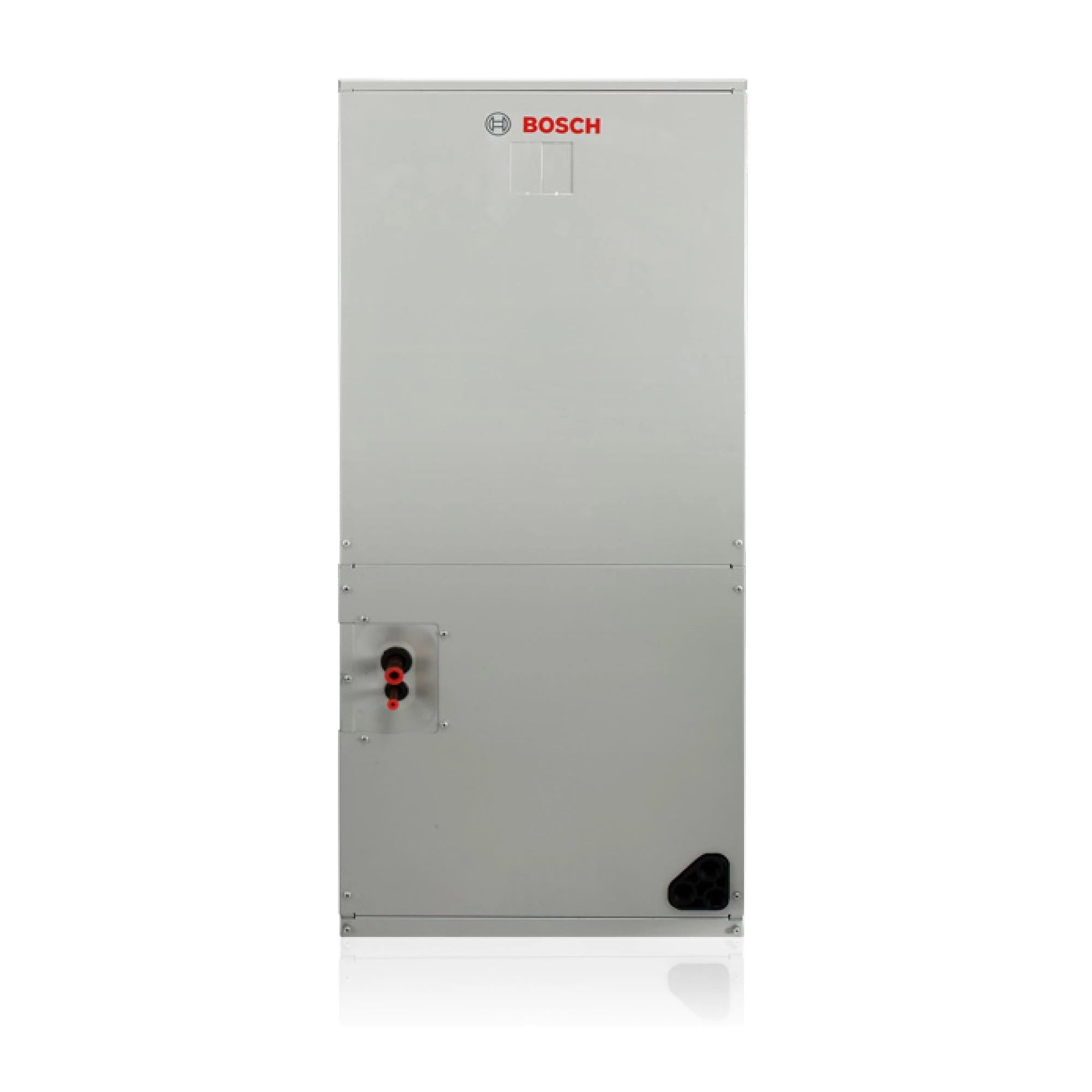

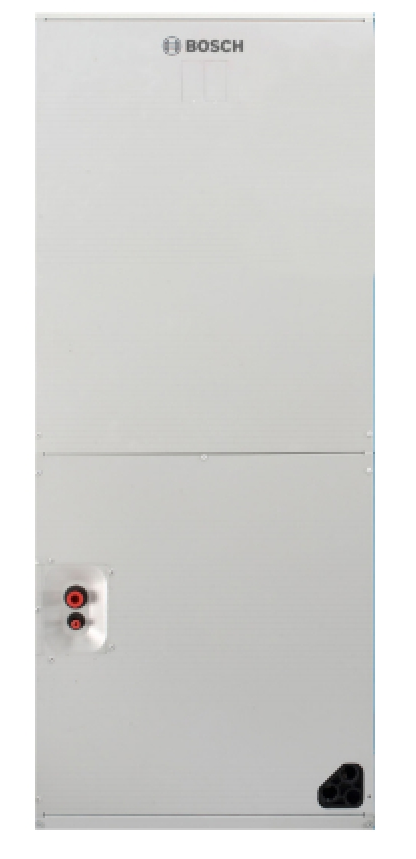

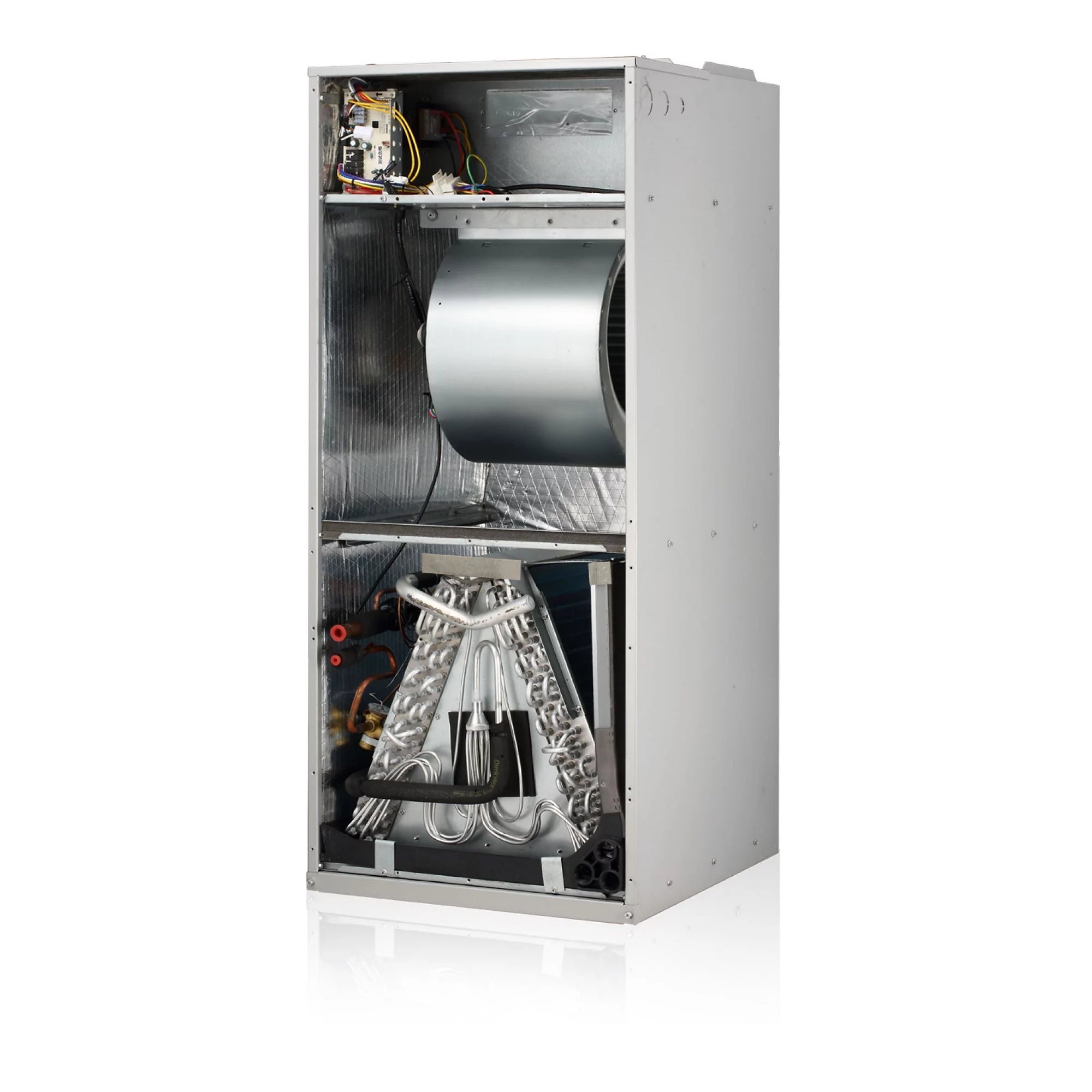

Bosch 8-733-955-040 4 Ton Air Handler 208-230/1/60 Multi-Position R-410A

Product Description

The BOSCH 8-733-955-040 is a 4 ton air handler with a cooling capacity of 48,000 BTU and a 15 SEER rating. Designed for multi-position installation, this unit operates on 208-230 VAC at 60 Hz. It utilizes R-410A refrigerant and features a TXV/TEV metering device. The air handler is ETL listed and suitable for indoor AHU usage.

• 48,000 BTU cooling capacity
• 15 SEER efficiency
• Multi-Position air flow direction

Product Highlights

This Bosch air handler is designed for efficient and versatile cooling, suitable for various installation configurations.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8-733-955-040
• Country of Origin: CAN

Technical Specifications

• AHRI - Usage: Indoor AHU
• Air Flow Direction: Multi-Position
• Blower Motor HP: 1/2 HP
• Blower Motor Speeds: 3 (Three)
• Blower Motor Type: PSC (Permanent Split Capacitor)
• Brand: Bosch
• Cooling Capacity: 48000
• Cycle/Hertz: 60 Hz
• Drain Connection Quantity: 2
• Drain Connection Size: 3/4"
• Electric Heat Range [kW]: 0
• Energy Star Rated: No
• Equipment Type: Straight Cool
• ETL Listed: Yes
• Filter Size: 20" x 22"
• Heat Pump Compatible: Yes
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8"
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Phase: Single
• Product Family: BVA
• Refrigerant: R-410A
• Stage: Single
• Tonnage: 4
• Voltage: 208-230 VAC
• Maximum Overcurrent Protection (MOCP): 15
• SEER Rating: 15 SEER
• Motor Type: ECM Motor
• Installation: Multi-Position
• TXV: Installed TXV
• BTU: 48000
• Electrical Designation: 1-60-208/240
• Heating: None
• Suction Line Size: 7/8
• Liquid Line Size: 3/8
• Configuration: Multiposition
• Building Type: Residential
