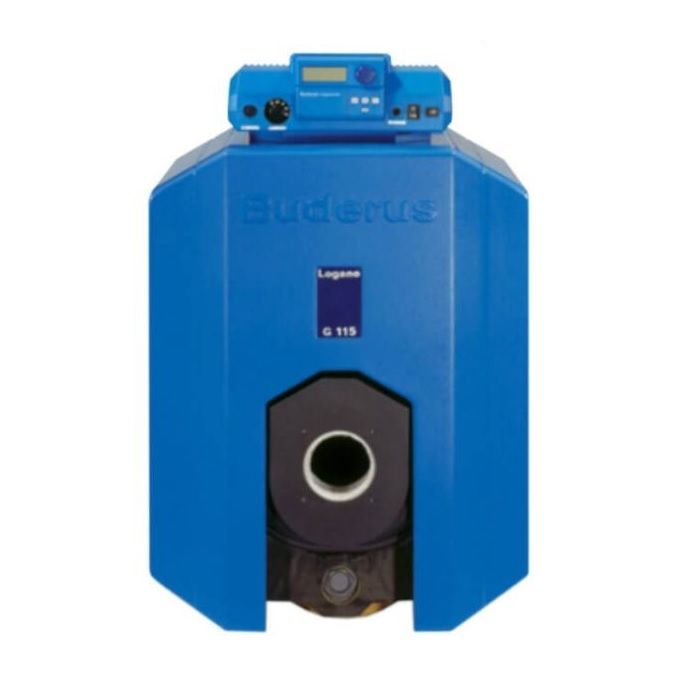

Bosch 7747019703 G115WS Series Oil Fired Cast Iron Water Boiler 95K BTU 4 Section

Product Description

The BOSCH 7747019703 Buderus G115WS boiler is based on the highly successful G115. Redesigned to extract and deliver more heat, it now has higher outputs at less cost per BTU. It works well in both new construction and renovations of existing buildings. The three pass heat exchanger extracts every last possible BTU of heat energy.

• Designed to operate at any return water temperature
• Full swing burner door for easy & quick, thorough cleaning
• No refractory parts for reduced maintenance

Product Highlights

The Buderus G115WS boiler offers innovative design and quality manufacturing. It has a full 3" jacket of thermal insulation around the entire block.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 7747019703
• Country of Origin: GERMANY

Technical Specifications

• MPN: 7747019703
• Manufacturer: Bosch
• Series: G115WS Series
• BTU Input: 95,000
• AFUE: 87%
• Height (Inches): 34.5"
• Length (Inches): 28-5/8"
• Width (Inches): 23-1/2"
• Material: Cast Iron
• Fuel Type: Oil-Fired
• Venting: Chimney Vent
• DOE Htg. Capacity BtuH: 109,000
• Depth: 28.75"
• Flue Diam.: 5"
• Gas Type: Oil
• IBR Rating BtuH: 95,000
