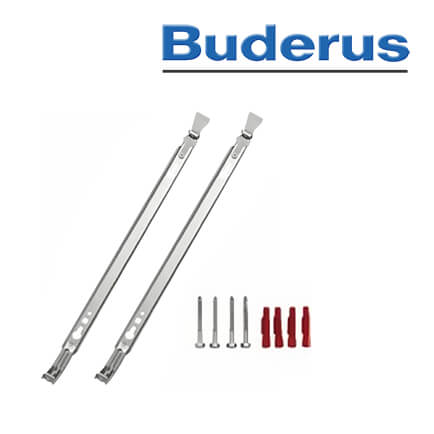

BOSCH 7738325251 BMSplus FMS 20-33 Horizontal Heater Mounting Bracket

Product Description

The BOSCH 7738325251 is a BMSplus FMS heater mounting bracket. It is intended for securing multi-row flat panel radiators. This product supports radiator types 20, 21, 22, 30, and 33. The bracket is designed for a construction height of 900 mm and accommodates lengths up to 1600 mm.

• Compatible with radiator types 20, 21, 22, 30, and 33.
• Suitable for construction height of 900 mm and maximum length up to 1600 mm.
• Includes integrated lift-off safety device and sound insulation.

Product Highlights

The BOSCH 7738325251 offers reliable support for flat panel radiators. It features adjustability to accommodate uneven walls and includes essential safety features.

Product Information

Standard Information

• Manufacturer: Buderus
• MPN: 7738325251

Technical Specifications

• Mounting Type: Wall mounting for VC/VCM/C-Profile/Plan
• Compatible Radiator Type: Typ 20, 21, 22, 30, 33
• Wall Distance: 35 mm
• Construction Height: 900 mm
• Maximum Length: 1600 mm
• Adjustable Height: Yes
• Integrated Lift-Off Safety Device: Yes
• Integrated Sound Insulation: Yes
• Material: Metal galvanized
• Application: VC, VCM, C -Profil / -Plan
• Lateral Displacement Protection: Yes
• Item Weight: 1.27 Kg
• Shipping Weight: 1.52 Kg
