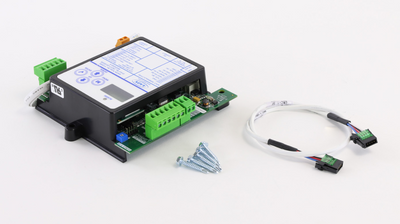

BOSCH 7738006441 BACnet Gateway WiFi SSB C and D Boiler

Product Description

The BOSCH 7738006441 is a BACnet Gateway suitable for Florida Heat Pump systems, specifically designed for the SSB C and D Boiler models. This gateway enables seamless communication and integration in building automation frameworks.

• Interfaces include Ethernet, RS-485 BACnet, and WiFi
• Connects up to eight units with a single controller
• Field programmable with a web configuration toolbox

Product Highlights

This device supports various protocols and ensures secure data transmission with encryption features.

Product Information

Standard Information

• Country of Origin: Not specified

Technical Specifications

• Communication: Wi-Fi 802.11 b/g/n, RS-485, Ethernet 10/100BaseT
• Wi-Fi Frequency: 2.4 GHz
• RS-485 Baud: 9600, 19200, 34800, 57600, 76800
• Input Voltage: 12-24 VDC or 24 VAC
• Operating Temperature: -20 to 70 C (-4 to 158 F)
• Relative Humidity: 10-95% RH non-condensing
• Approvals: CE, FCC, BTL Marked, UL 60950-1, CAN/CSA C22.2, IC Canada, RoHS, WEEE Compliant, PTCRB and CTIA
