Product Description

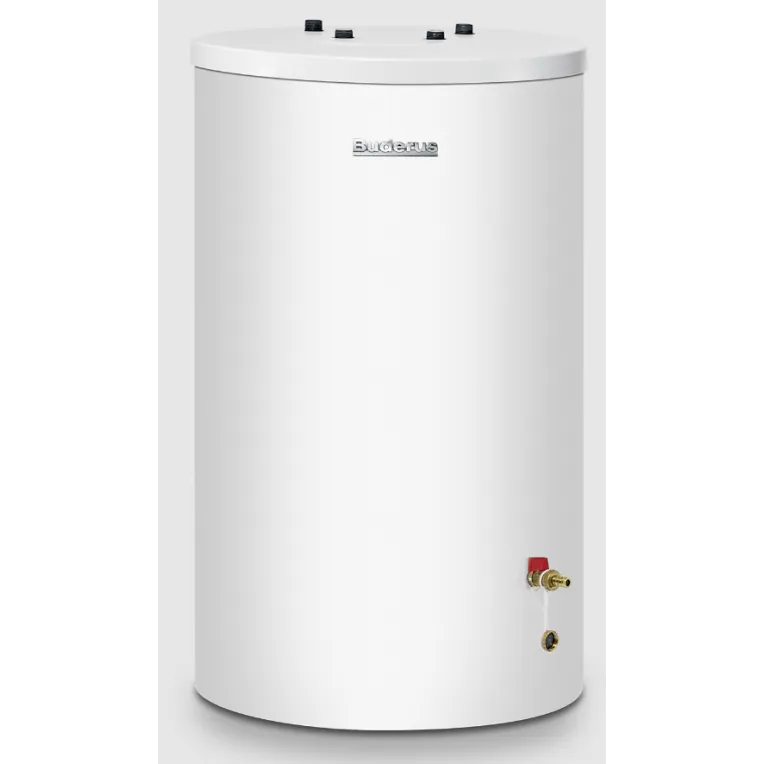

The BOSCH 7738003203 is an indirect water heater with a 31.7-gallon storage volume. Bosch domestic hot water tanks offer easy installation, simple maintenance, and reliable operation. All Thermoglaze models are equipped with a magnesium anode rod for protection against corrosion. It also features adjustable screw-on feet for leveling.
- Coated internally with Buderus' Thermoglaze enamel for corrosion protection.
- Includes a sacrificial, replaceable anode rod to reduce pipe corrosion.
- Features a large port for cleaning the internals of the tank.
Product Highlights
This indirect water heater offers easy maintenance and reliable operation. It is equipped with a magnesium anode rod for protection against corrosion.
Product Information
Standard Information
-
Brand: BOSCH
-
Manufacturer Part Number: 7738003203
Technical Specifications
-
Type: Indirect Water Heater
-
Product Style: S
-
Category: Water Heater - Indirect-Fired
-
Storage Type: Tank
-
Coils Quantity: 1
-
First Hour: 143 Gallons
-
Continuous Recovery Rate: 120 Gallons
-
Storage Volume: 31.7 Gallons
-
Cold Water Inlet: 3/4"
-
Hot Water Outlet: 3/4"
-
Boiler Supply: 3/4"
-
Boiler Return: 3/4"
-
Product Height: 38-5/8"
-
Product Width: 21-3/4"
-
Product Depth: 21-3/4"
-
MPN: 7738003203
-
Manufacturer Part Number: 7738003203
-
Manufacturer: Bosch
-
Gallons: 32 Gallons
-
Product Warranty: 6 Year Warranty
-
Weight: 160 lbs
-
Dimensions: 21.75 × 21.75 × 38.625 in
-
Series: S Series
-
Tank Capacity: 32 gal
-
Domestic/Import: Import
-
Pressure Rating: 150 psi
-
Material: Steel
-
Finish: Enamel Painted
-
Domestic Water Capacity (Gallons): 30.0
-
Heat Exchanger Type: Single Coil
-
Domestic Hot Water (DHW) Connection: 3/4" NPT
-
Domestic Cold Water Connection: 3/4" NPT
-
Boiler (Heat Exchanger Coil) Connections: 3/4" NPT
-
Hot Water Recirculation Connection: 3/4" NPT
-
Max DHW Temperature: 203°F
-
Max DHW Operating Pressure: 150 psi
-
Max Boiler Water Temperature: 230°F
-
Max Boiler/Heat Exchanger Coil Side Pressure (psi): 232
-
Stand-by Heat Loss (°F/hr): 1.0
-
Continuous Domestic Hot Water Flow (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 137.0
-
1st Hour Rating (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 165.0
-
Min. Boiler Output (BTU): 87,000
-
Min. Boiler Water Flow Rate (GPM): 8.0
-
Empty Weight (lbs): 160
