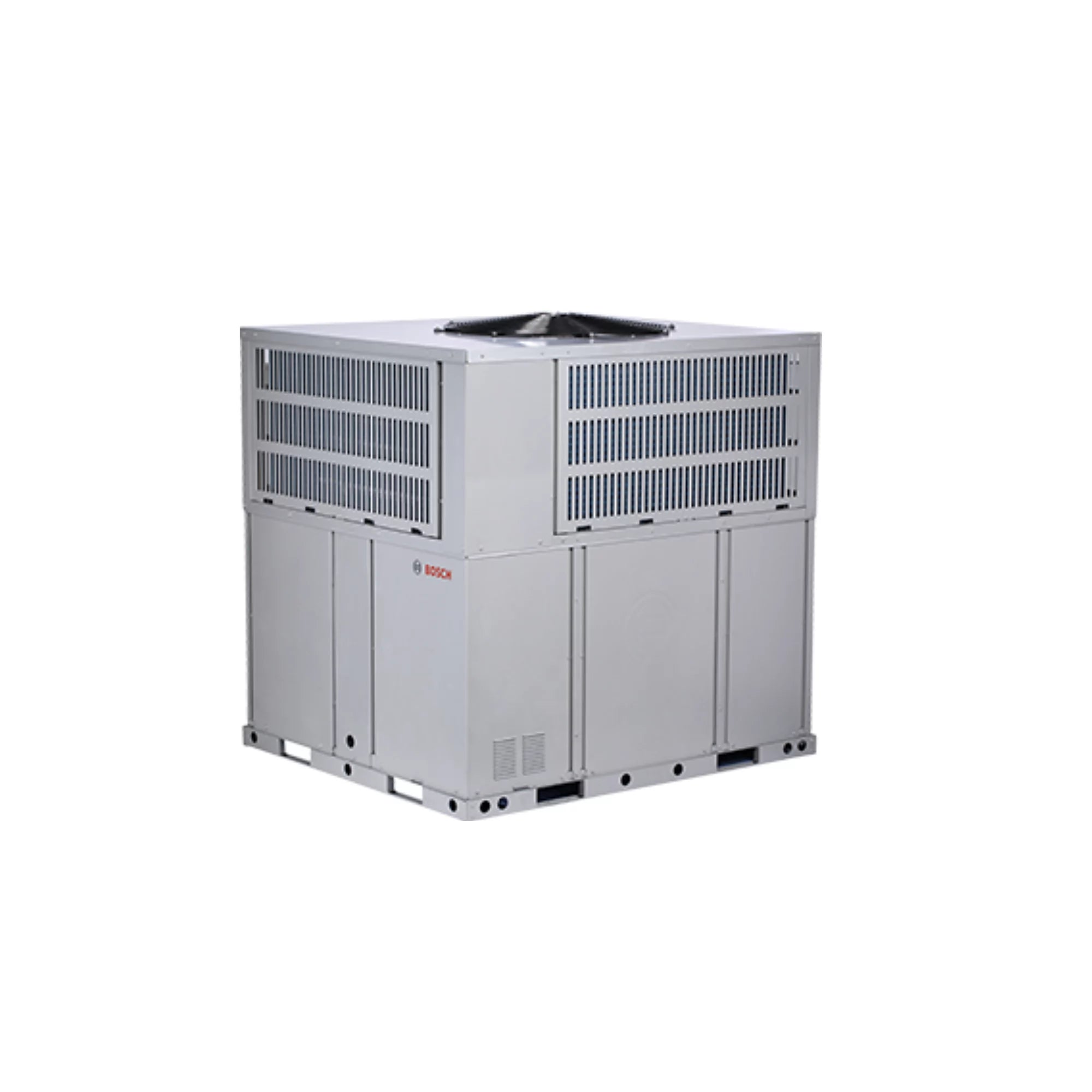

Bosch 7-738-006-459 5 Ton 19 SEER A/C Package Unit 208-230 VAC

Product Description

The BOSCH 7-738-006-459 is a 5 Ton Inverter Ducted Heat Pump Packaged Unit operating at 208-230 VAC. It features superior efficiency, rated at 19 SEER, 12.5 EER, and 10 HSPF. The fully modulating Inverter Drive precisely matches the heating/cooling load with its 85 Step Compressor. Designed for easy installation, it is compatible with most standard 24 VAC heat pump thermostats and uses R-410A Chlorine-Free Refrigerant.

• Rated at 19 SEER, 12.5 EER, 10 HSPF for superior efficiency
• Fully modulating Inverter Drive with 85 Step Compressor
• Compatible with most standard 24 VAC heat pump thermostats

Product Highlights

This packaged unit provides efficient and adaptable heating and cooling with its inverter-driven compressor and versatile installation options.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 7-738-006-459
• Country of Origin: CHN

Technical Specifications

• AHRI - Usage: Packaged
• Air Flow Direction: Convertible
• Blower Motor HP: 1/4 HP
• Blower Motor RPM: 1075
• Blower Motor Speeds: Multiple
• Blower Motor Type: PSC (Permanent Split Capacitor)
• Brand: Bosch
• CFM Cooling: 57000
• Condenser Motor HP: 1/3 HP
• Condenser Motor RPM: 200-880
• Condenser Motor Speeds: 1 (Single)
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cooling Capacity: 57000
• COP: 3.8
• Cycle/Hertz: 60 Hz
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4"
• Drive Type: Direct
• EER: 12.5
• Energy Star Rated: Yes
• Equipment Type: Heat Pump
• ETL Listed: Yes
• Fan Diameter: 26.375
• Heating Capacity: 44000
• HSPF: 10
• Length: 51.5625
• Locked Rotor Amps (LRA): 52
• Number of Fan Blades: 1
• Phase: Single
• Product Family: BRB
• Refrigerant: R-410A
• SEER: 19
• Sound Level (dBA): 64-75
• Stage: Single
• Tonnage: 5
• UL Listed: Yes
• Voltage: 208-230 VAC
• Width: 44.187
• Maximum Overcurrent Protection (MOCP): 60
• Condenser Coil Fins per Inch (FPI): 17
• Evaporator Coil Fins per Inch (FPI): 17
• Compressor Type: Rotary
• Return Air Filter Size (RA): 16" x 14" x 1"
• Blower Wheel Diameter: 11"
• Blower Wheel Width: 10 5/8"
• Blower Wheel Size: 11" x 10 5/8"
