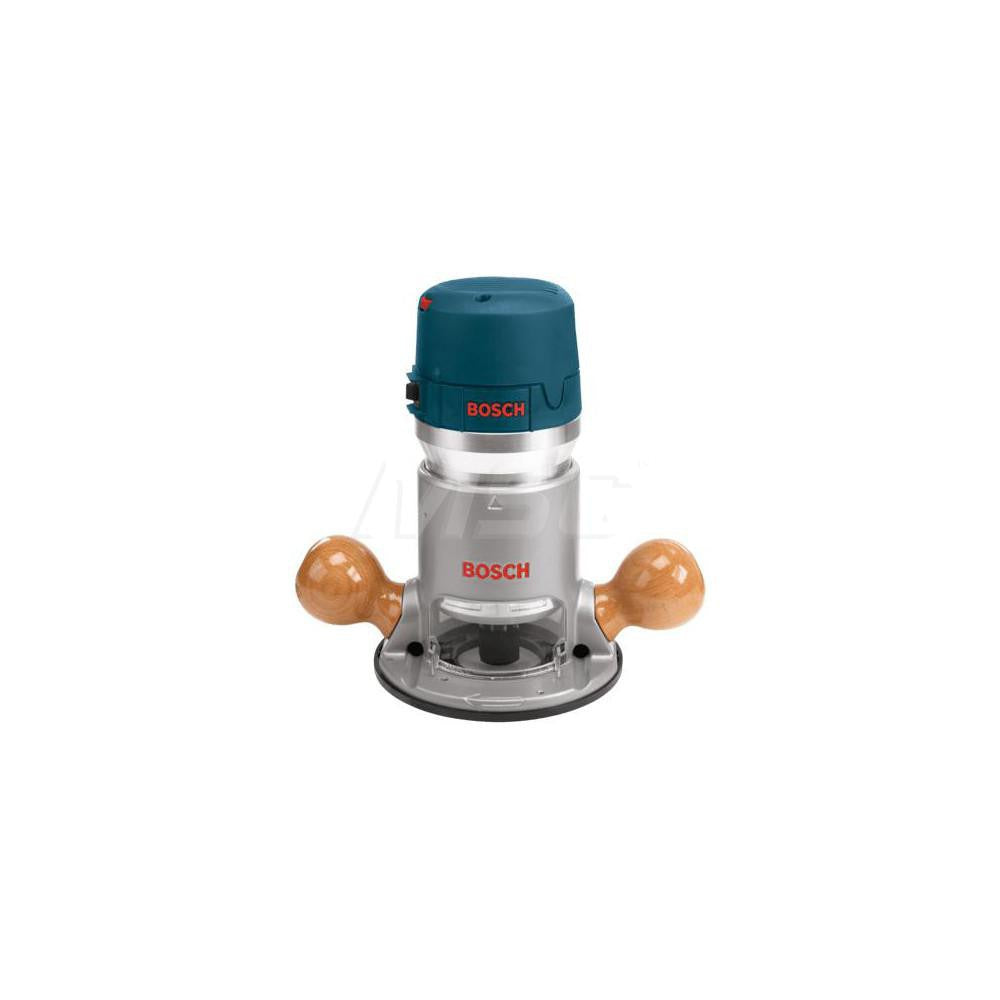

Bosch 1617EVS Fixed Base Electric Router 2.25 Hp

Product Description

The BOSCH 1617EVS is a fixed base electric router rated at 2.25 horsepower and 12 amps at 120 volts. Variable speed ranges from 8,000 to 25,000 RPM, allowing the operator to match bit speed to material and application. The motor delivers consistent power under load, making it suitable for edge profiling, dadoing, rabbeting, and template routing. Accepts 1/4-inch, 3/8-inch, and 1/2-inch collets, covering the full range of standard router bit shank sizes. At 7.7 pounds, it balances control and stability for bench-mounted or handheld use. Licensed carpenters, finish tradespeople, and experienced millwork installers are the primary users.

The 1617EVS is designed for residential and light commercial woodworking applications where precision routing is required. The fixed base configuration provides a stable, repeatable cutting depth, making it well suited for production runs, edge work on cabinet components, door hardware mortising, and similar tasks. The broad collet compatibility means a single tool handles most standard bit inventories without adapter rings. The included chip shield and self-releasing collet chucks support clean, efficient bit changes in active shop environments.

Key Features

• Variable speed control from 8,000 to 25,000 RPM for material-matched cutting
• 2.25 HP motor at 12 amps delivers sustained power for hardwoods and composites
• Accepts 1/4-inch, 3/8-inch, and 1/2-inch collet sizes for broad bit compatibility
• Fixed base design for repeatable, stable depth-of-cut settings
• Self-releasing collet chucks on both 1/4-inch and 1/2-inch collets for fast bit changes
• Includes shaft wrench, collet nut wrench, chip shield, and T-handle hex wrench

Compatibility

Designed as an OEM-style fixed base router compatible with standard router table insert plates and router table lifts that accept a full-size router body. Collet sizes of 1/4 inch, 3/8 inch, and 1/2 inch are compatible with the broad majority of standard router bit shanks.

Installation Notes

Installation and setup should be performed by a qualified tradesperson familiar with portable power tool operation and applicable workplace safety codes. Always disconnect the tool from its power source before changing collets or adjusting depth settings. When mounting in a router table, confirm that the base plate fits the table insert opening and that all locking mechanisms are fully engaged before operation. Do not exceed the recommended bit diameter for the collet size in use.
