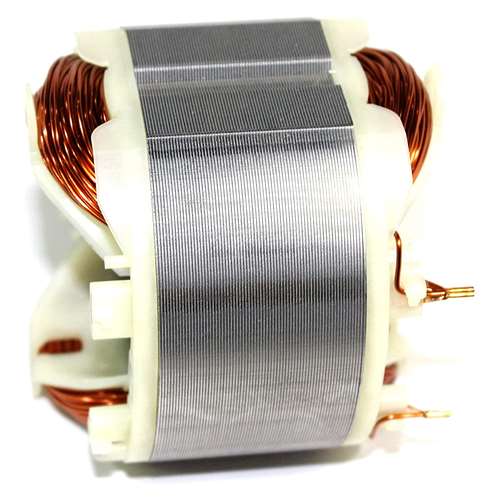

Bosch 1614220150 Field Coil Assembly Power Tool Part

Product Description

The BOSCH 1614220150 is a field coil assembly replacement part for Bosch power tools. The field coil is the stationary winding inside an electric motor that generates the magnetic field required to drive the rotating armature. When a field coil fails due to heat damage, insulation breakdown, or mechanical wear, the motor loses torque or stops running entirely. This part restores the tool to factory performance. Installation is typically handled by a qualified power tool repair technician with experience in electric motor service.

This field coil is intended for use in Bosch power tools requiring an OEM-style field replacement. It is suited to repair shop environments where tools are serviced rather than replaced outright. Typical applications include motor rebuilds on rotary tools, rotary hammers, grinders, or similar Bosch electric tool platforms where the field winding has degraded or burned out.

Key Features

• OEM replacement field coil designed to restore original motor performance
• Direct factory-spec replacement minimizes reassembly guesswork
• Addresses field winding failures caused by heat, overload, or insulation breakdown
• Intended for professional power tool repair technicians

Compatibility

Designed as an OEM-style replacement field coil for Bosch power tools. No specific compatible model numbers were provided in the available product data. Verify fitment against your tool model number and service documentation before ordering.

Installation Notes

Field coil replacement should be performed by a qualified power tool repair technician familiar with electric motor disassembly. Disconnect the tool from all power sources and remove the battery pack if applicable before beginning any service work. Refer to the Bosch service manual for the specific tool model to confirm correct reassembly sequence and hardware torque procedures. Improper installation can damage the armature or result in unsafe tool operation.

Technical Specifications

• Part Type: Field Coil Assembly
• Manufacturer: Bosch

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 1614220150
