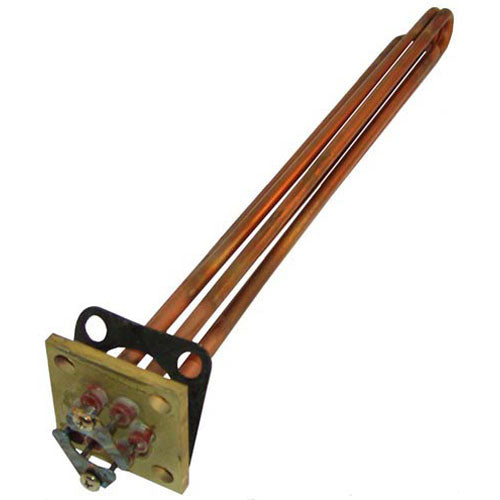

BOOSTER ELEMENT 7500W 208V HT02-04-700 for Hatco HT02.04.700

Product Description

This item for Hatco HT02-04-700 is a booster element designed for applications requiring 7500 watts of power at 208 volts. The element features a sheath length of fifteen and one-fourth inches and has a square flange size of two and one-half inches. It is suitable for use in commercial settings to increase water temperature efficiently.

• Power Rating: 7500W at 208V
• Sheath Length: 15.25 inches
• Square Flange Size: 2.5 inches

Product Highlights

This booster element is a compact design ideal for water heating. It includes necessary terminal screws and gasket for installation.

Product Information

Standard Information

• Product Notes: 1-3/4 OC bolt holes; 10-32 terminal screws provided; 2-1/2 square gasket included (32-1166).
• Hazardous: No

Technical Specifications

• Weight: 2.1 lbs
• Length: 16.5 inches
• Width: 2.5 inches
• Height: 2.5 inches
