Bonomi North America VB030M Electric Actuator

Product Description

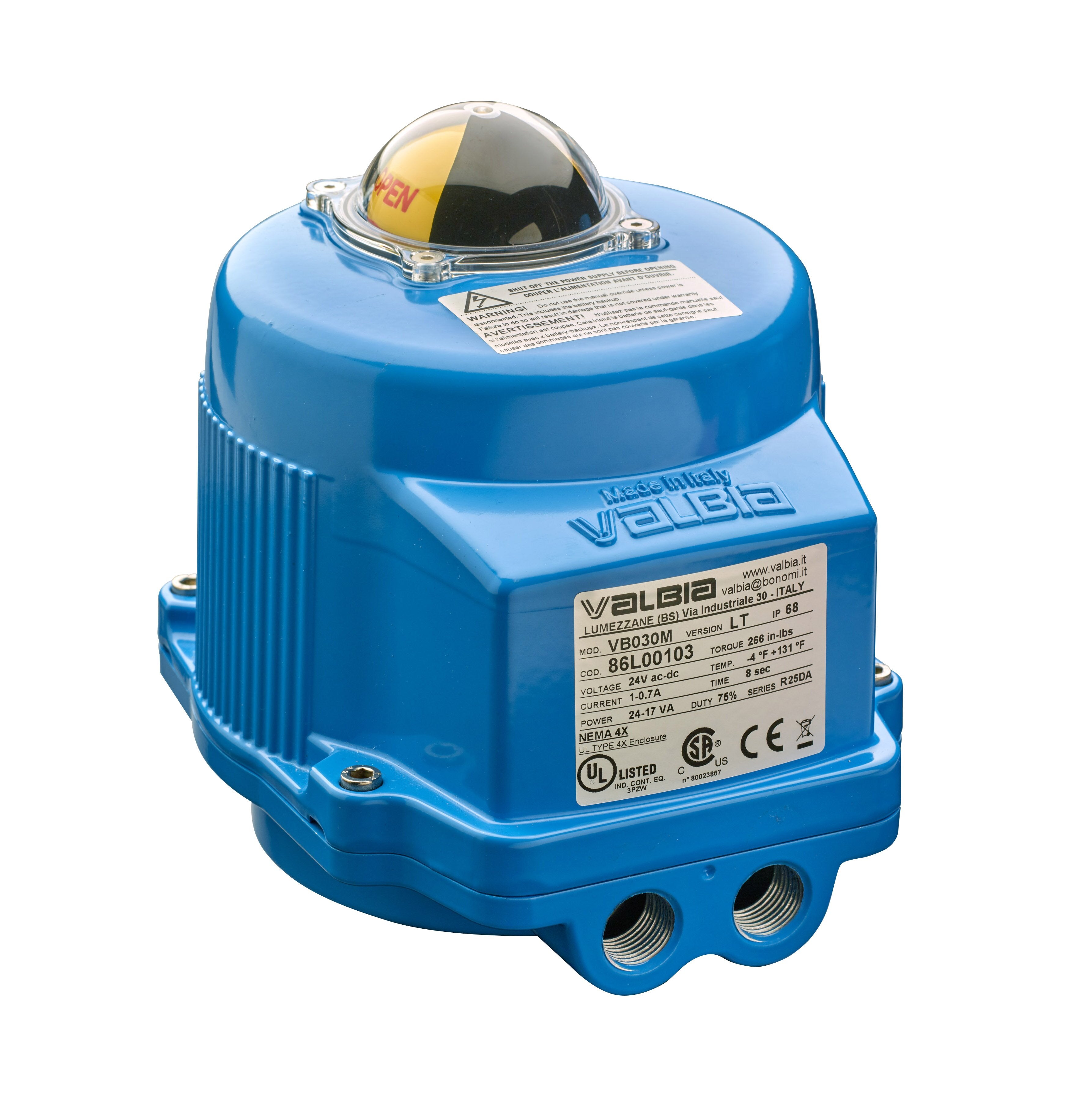

The BONOMI NORTH AMERICA VB030M electric actuator features an aluminum housing with IP68 protection, manual override, and visual position indication. It includes 2 limit switches for remote open and closed position indication, an electronic torque limiter, and an internal anti-condensation heater. The actuator has 2 x M20 x 1.5 conduit entries and ISO F03 / F05 / F07 mounting with a 14 MM star drive.

• Aluminum housing with IP68 protection
• Manual override
• Visual position indication
• Electronic torque limiter
• Anti-condensation heater
• Mechanical limit switches for remote open/closed position feedback

Product Highlights

Features aluminum housing, manual override, electronic torque limiter, and anti-condensation heater.

Product Information

Standard Information

• Brand: BONOMI NORTH AMERICA
• Manufacturer Part Number: VB030M

Technical Specifications

• Protection: IP68
• Manual Override: 10 MM square operator on underside of the actuator
• Limit Switches: 2 x limit switches fitted for remote open and closed position indication
• Torque Limiter: Electronic torque limiter
• Heater: Internal anti-condensation heater
• Conduit Entries: 2 x M20 x 1.5 conduit entries
• Mounting: ISO F03 / F05 / F07 mounting with an 14 MM star drive
• Housing: Aluminium housing
• Mounting Standard: ISO 5211
• Feedback: 2 x Mechanical limit switches for remote open/closed position feedback
• SIZE: VB030M
• PATTERN ISO 5211: F03-F05-F07
• Item Name: Electric Actuator
• Series/Model: Model VB030M
• Body Material: Aluminum
• Power Rating: 40 - 48 VA
• Voltage Rating: 100 - 240 VAC
• Amperage Rating: 0.4 - 0.2 A
• Industry Standards: ISO F03/F05/ F07, ISO 5211
• Temperature Rating: -20 To 55 DEG C

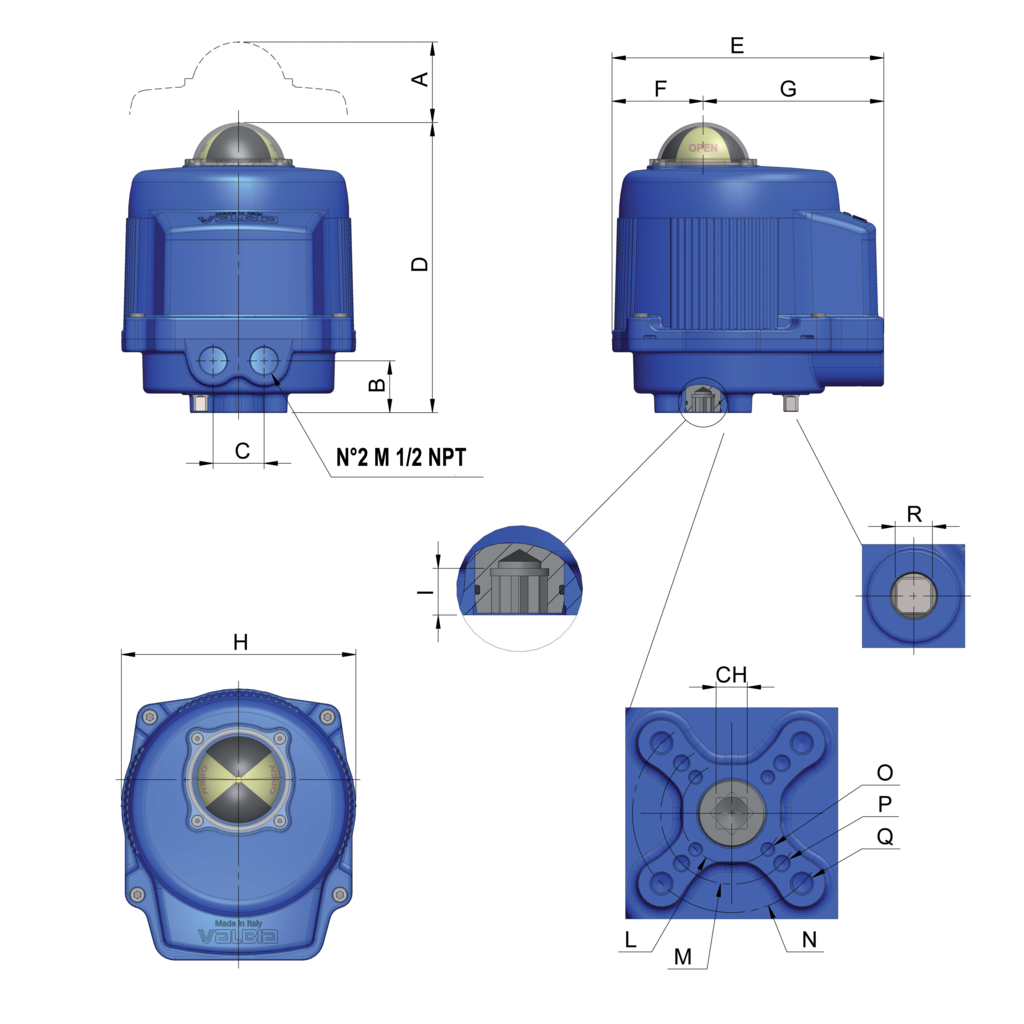

• Length: 187 MM
• Width: 161 MM
• Height: 199 MM
• Additional Specifications: Frequency Rating: 50/60 HZ
• Brand: Bonomi
• Actuator Type: ELECTRIC
• Actuator Action: ON/OFF ACTUATOR
• Output Torque: VB030M – 266 in-Lbs
• Drilling ISO 5211: F03-F05-F07
• Actuator Housing Material: Aluminum die cast
