Bonomi North America sr85 Spring Return Actuator

Product Description

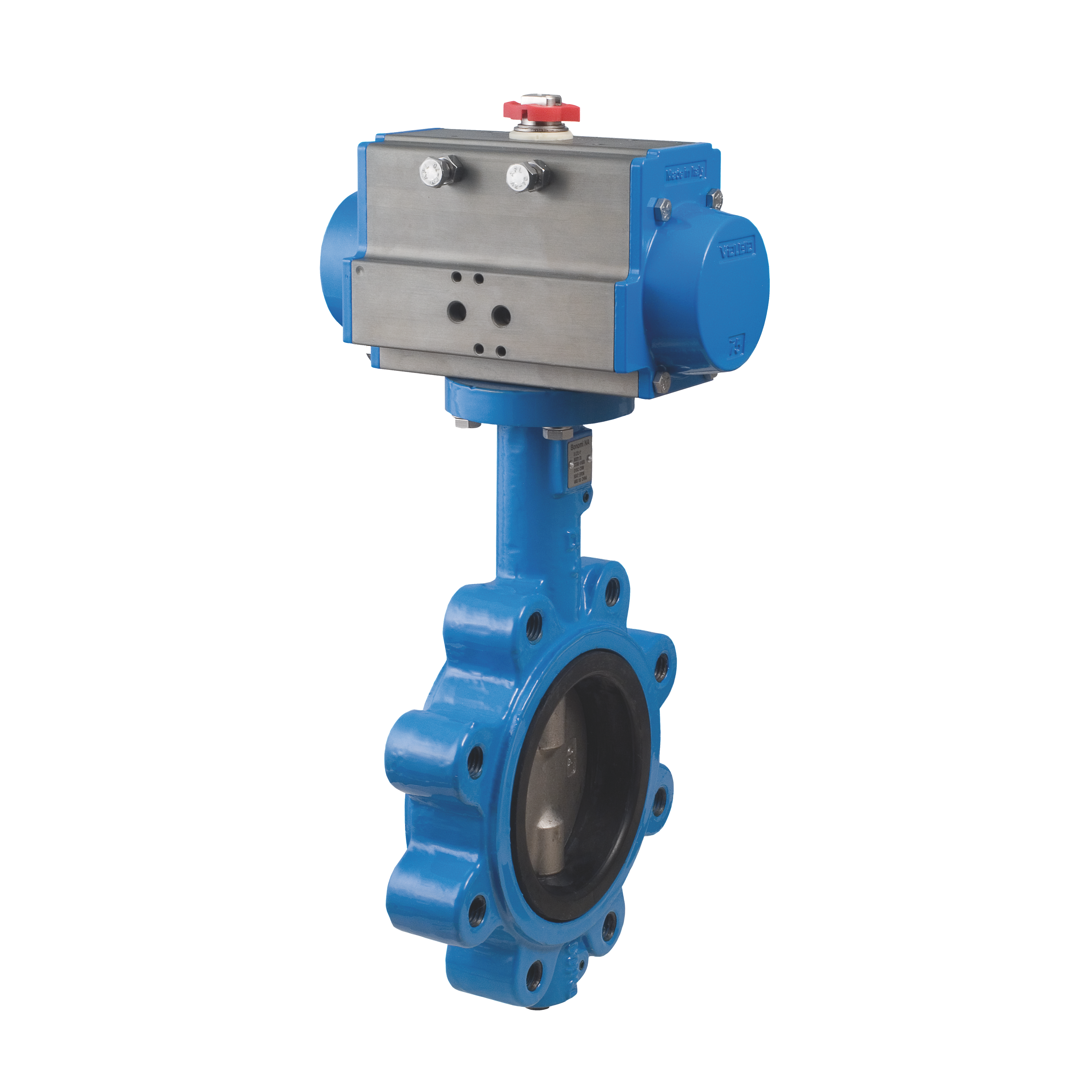

The Bonomi NORTH AMERICA SR85 spring return pneumatic actuator, also known as Valbia figure SR85 (82SR0014), features a rack and pinion design. It has a hard-anodised aluminium body, blue coated end caps and visual position indication. It is fitted with NBR seals and is ATEX II 2GD T6 compliant. Suitable for various applications requiring pneumatic actuation.

• Rack and pinion design
• Hard-anodised aluminium body
• Visual position indication
• Pre-lubricated for life

Product Highlights

This pneumatic actuator is designed for durability and reliability in demanding industrial environments. It features ISO F05/F07 mounting with an 17 MM star drive.

Product Information

Standard Information

• Brand: BONOMI NORTH AMERICA
• Manufacturer Part Number: SR85

Technical Specifications

• Pneumatic Connections: 1/8 IN BSP
• Maximum Air Supply Pressure: 8 BAR g
• ATEX Compliance: ATEX II 2GD T6 compliant
• ISO Mounting: ISO F05/F07 mounting with an 17 MM star drive
• Stroke Travel Adjustment: +/-5 DEG open and close stroke travel adjustment
• Solenoid Valve Connection: In accordance with the NAMUR standard
• Top Mounted Device Mounting: In accordance with the NAMUR standard
• Bottom of Pinion Dimensions: In accordance with ISO 5211-DIN 3337
• Item Name: Spring Return Pneumatic Actuator
• Type: Rack And Pinion Style
• Series/Model: Series SR
• Pressure Rating: 40 - 115 PSI
• Output Torque: 536 IN-LB At 90 deg
• Body Material: Extruded Aluminum
• Industry Standards: ATEX II 2GD T6, ISO 5211 - DIN 3337
• Temperature Rating: Standard: -4 To 185 DEG F, High: -4 To 302 DEG F, Low: -40 To 185 DEG F
• Length: 240.5 MM
• Width: 106 MM
• Height: 145 MM
• Action: Spring Return
• Brand: Bonomi
• Drilling ISO 5211: F03-F07
• Housing Material: HARD ANODIZED EXTRUDED ALUMINUM
