Bonomi North America sr52 Spring Return Actuator

Product Description

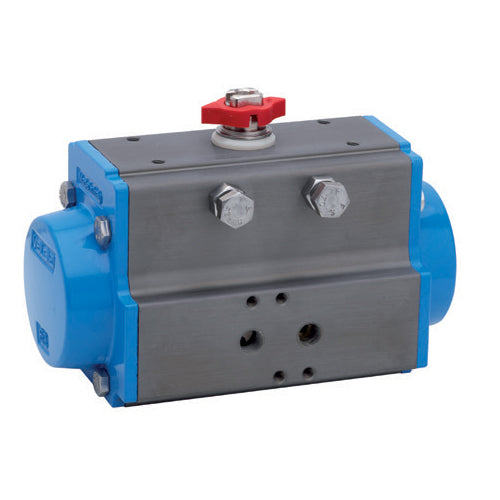

The BONOMI NORTH AMERICA SR52 spring return pneumatic actuator, also known as Valbia figure SR52 (82SR0010), features a rack and pinion design. It has a hard-anodised aluminium body, blue coated end caps, and visual position indication. It is fitted with NBR seals and is ATEX II 2GD T6 compliant.

• Rack and pinion design
• Hard-anodised aluminium body
• Visual position indication
• Bi-directional open/close travel stops

Product Highlights

The actuator has 1/8 IN BSP pneumatic connections and bi-directional open/close travel stops. It is pre-lubricated for life.

Product Information

Standard Information

• Brand: BONOMI NORTH AMERICA
• Manufacturer Part Number: SR52

Technical Specifications

• Pneumatic Connections: 1/8 IN BSP
• Maximum Air Supply Pressure: 8 BAR g
• ATEX Compliance: ATEX II 2GD T6 compliant
• Mounting: ISO F03/F05 mounting with an 11 MM star drive
• Temperature Range: -20/+85 DEG C
• Travel Adjustment: +/-5 DEG open and close stroke travel adjustment
• Bottom of Pinion Dimensions: In accordance with ISO 5211-DIN 3337
• Item Name: Spring Return Pneumatic Actuator
• Type: Rack And Pinion Style
• Series/Model: Series SR
• Pressure Rating: 40 - 115 PSI
• Output Torque: 105 IN-LB At 90 deg
• Body Material: Extruded Aluminum
• Industry Standards: ATEX II 2GD T6, ISO 5211 - DIN 3337
• Temperature Rating: Standard: -4 To 185 DEG F, High: -4 To 302 DEG F, Low: -40 To 185 DEG F
• Additional Specifications: NBR O-Ring
• Action: Spring Return
• Brand: Bonomi
• Actuator Housing Material: Extruded Aluminum
• Actuator Action: Spring Return
