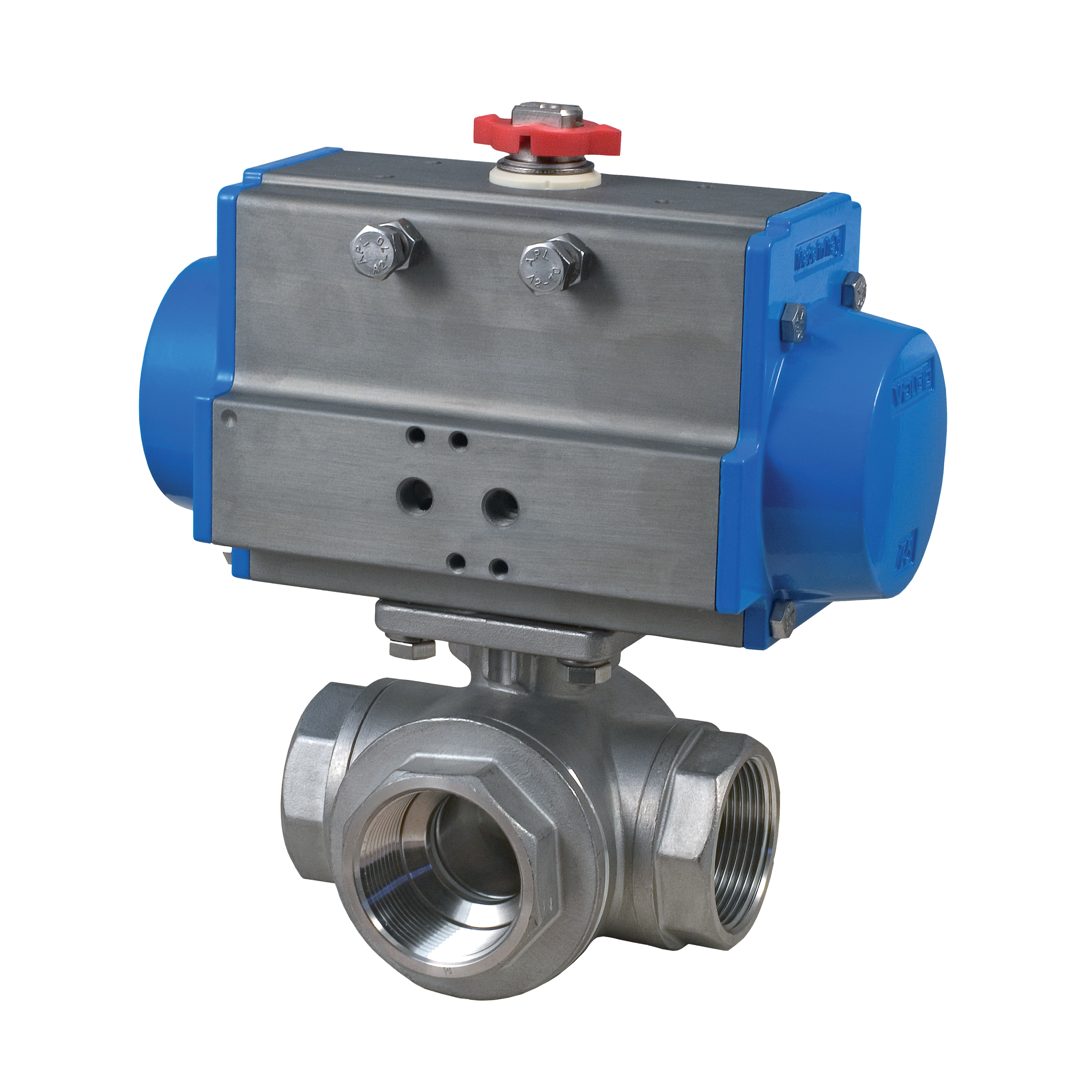

Bonomi North America DA75 Double Acting Actuator

Product Description

The BONOMI NORTH AMERICA DA75 is a double-acting actuator. Constructed with an extruded aluminum body, this pneumatic actuator delivers 97 Nm of output torque at 8 Bar. It is pre-lubricated for life and features a patented design travel stop adjustment cam with +/- 5 deg stroke travel adjustment.

• Extruded aluminum UNI 6060 body construction
• Hard-coat anodized finish
• Bottom drillings according to ISO 5211-DIN 3337

Product Highlights

The DA75 actuator features ATEX II 2GD T6 approvals and a solenoid valve connection in accordance with the NAMUR standard.

Product Information

Standard Information

• Brand: BONOMI NORTH AMERICA
• Manufacturer Part Number: DA75
• Country of Origin: U.S.A.

Technical Specifications

• Item Name: Pneumatic Actuator
• Type: Double Acting
• Series/Model: Model DA75
• Pressure Rating: 40 - 115 PSI
• Output Torque: 97 Nm At 8 Bar
• Body Material: Extruded Aluminum
• Industry Standards: ATEX II 2GD T6, ISO 5211 - DIN 3337
• Temperature Rating: Standard: -4 To 185 DEG F, High: -4 To 302 DEG F, Low: -40 To 185 DEG F

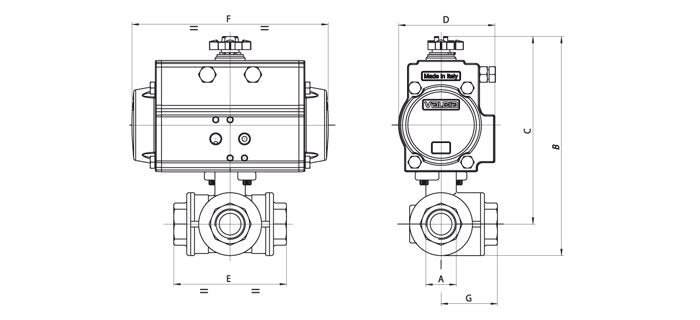

• Length: 210 MM
• Width: 94.5 MM
• Height: 131 MM
• Additional Specifications: NBR O-Ring
• Action: Double Acting
• Brand: Bonomi
• Actuator Type: PNEUMATIC
• Actuator Action: DOUBLE ACTING
• Drilling ISO 5211: F03-F07
• Housing Material: HARD ANODIZED EXTRUDED ALUMINUM
