Bonomi North America DA63 Double Acting Actuator

Product Description

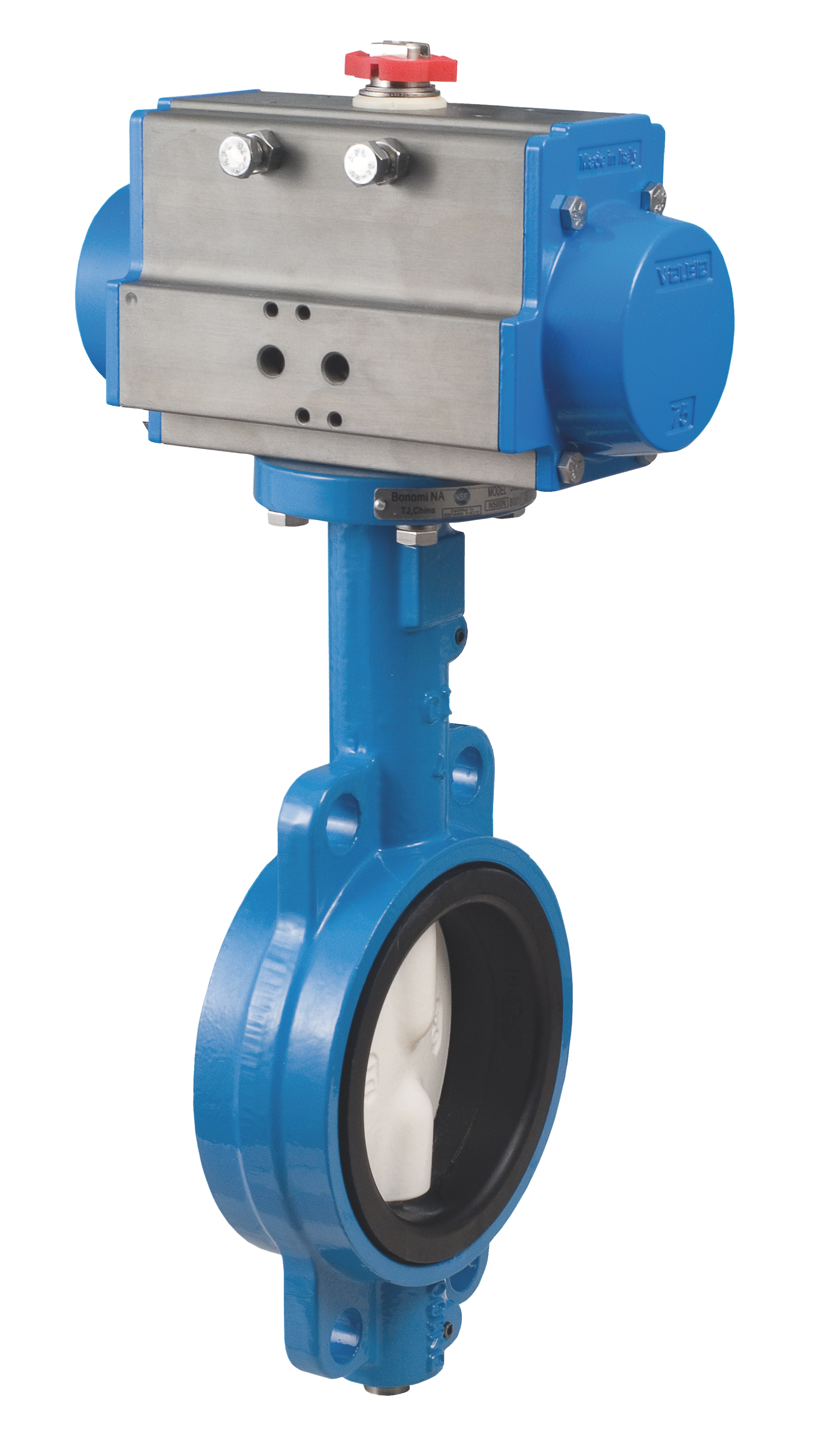

The BONOMI NORTH AMERICA DA63 is a double-acting pneumatic actuator with an extruded aluminum body. It delivers an output torque of 53.5 Nm at 8 Bar and is pre-lubricated for life. Suitable for various industrial applications requiring pneumatic actuation. It adheres to industry standards ATEX II 2GD T6 and ISO 5211 - DIN 3337.

• Extruded aluminum UNI 6060 body construction
• Hard-coat anodized as standard finish 45-50 (micros)
• Bottom drillings according to ISO 5211-DIN 3337

Product Highlights

This Bonomi DA63 double-acting actuator features robust construction and precise control for demanding pneumatic applications.

Product Information

Standard Information

• Brand: BONOMI NORTH AMERICA
• Manufacturer Part Number: DA63

Technical Specifications

• Item Name: Pneumatic Actuator
• Type: Double Acting
• Series/Model: Model DA63
• Pressure Rating: 40 - 115 PSI
• Output Torque: 53.5 Nm At 8 Bar
• Body Material: Extruded Aluminum
• Industry Standards: ATEX II 2GD T6, ISO 5211 - DIN 3337
• Temperature Rating: Standard: -4 To 185 DEG F, High: -4 To 302 DEG F, Low: -40 To 185 DEG F
• Length: 164 MM
• Width: 80.5 MM
• Height: 113 MM
• Additional Specifications: NBR O-Ring
• Action: Double Acting
• Brand: Bonomi
• Drilling ISO 5211: F03-F07
• Housing Material: HARD ANODIZED EXTRUDED ALUMINUM
