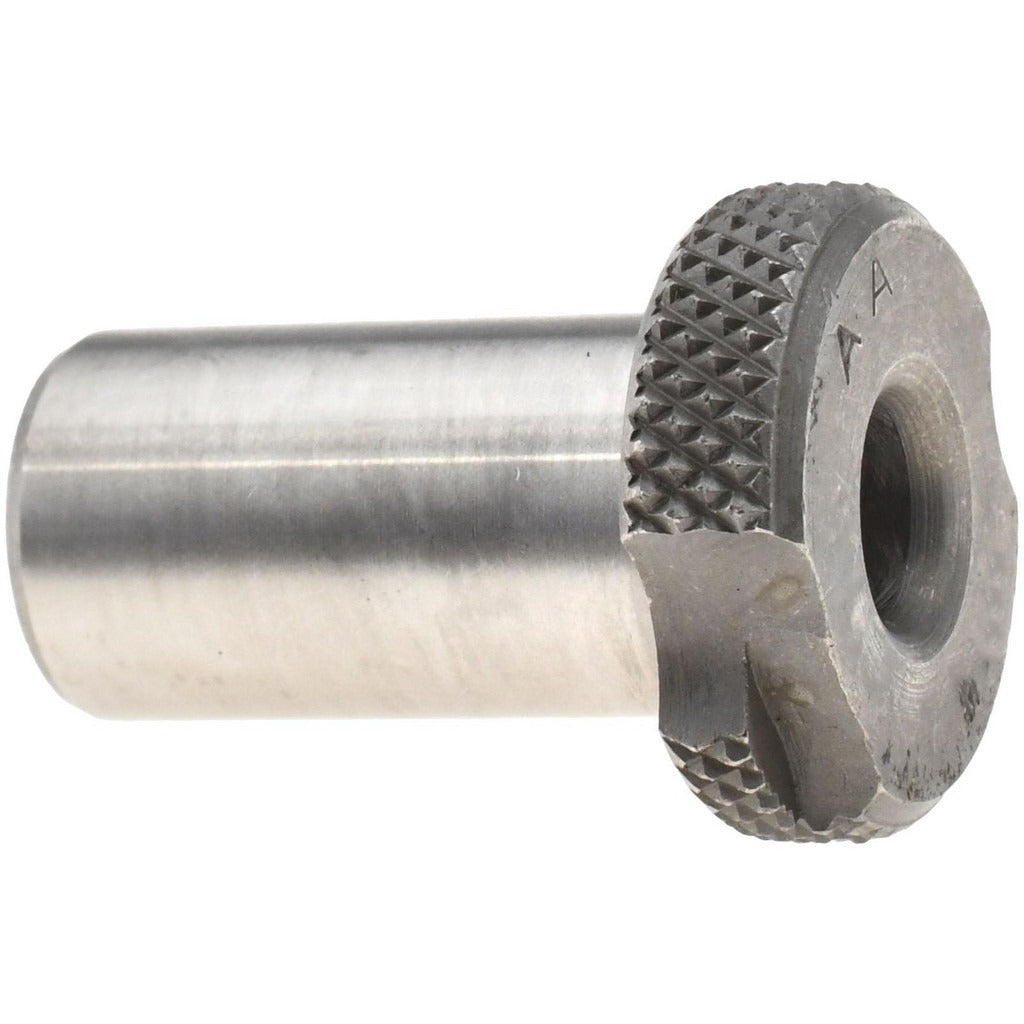

Boneham SFT3616ID Slip-fixed Drill Bushing 0.295 in Id Steel

Product Description

The BONEHAM SFT3616ID is a slip-fixed drill bushing used to guide cutting tools with precision during drilling, reaming, or boring operations. Classified under industry code SF, this headed bushing features a 0.295 inch inside diameter with a tight tolerance of +0.0001 to +0.0005 inches, ensuring accurate and repeatable tool guidance. The body measures 0.5625 inches in outside diameter with a 1 inch length under the head. Constructed from steel, it is designed for durability under repeated use in production jig and fixture applications. A 7/8 inch head outside diameter and 1/4 inch head height keep the bushing seated and stable during operation. This part is installed and serviced by toolmakers, machinists, and fixture maintenance technicians.

The SFT3616ID is suited for use in drill jigs and production fixtures where the bushing must be removed and replaced without disturbing the jig plate. The slip-fixed design allows the bushing to be locked in place during operation using a compatible lock screw, then released for bushing changes during tooling transitions. This makes it practical for multi-operation fixtures in manufacturing and machine shop environments where tool size changes between operations are required. The bushing is renewable, supporting long fixture service life without jig plate rework.

Key Features

• Slip-fixed installation method allows removal and replacement without jig plate modification
• Inside diameter of 0.295 inches held to a precision tolerance of +0.0001 to +0.0005 inches
• Steel construction provides durability under high-cycle production drilling conditions
• Compatible with LS-TW-2 lock screw for secure seating during operation
• Renewable bushing design extends fixture service life
• Headed style with 7/8 inch head OD and 1/4 inch head height for positive axial location

Compatibility

Compatible with LS-TW-2 lock screws as specified by the manufacturer. Designed as an OEM-style renewable slip-fixed bushing for use in standard drill jig plates and production fixtures accepting SF-series headed bushings.
