Boneham SF6422MH Slip-fixed Drill Bushing 0.625 in Id Steel

Product Description

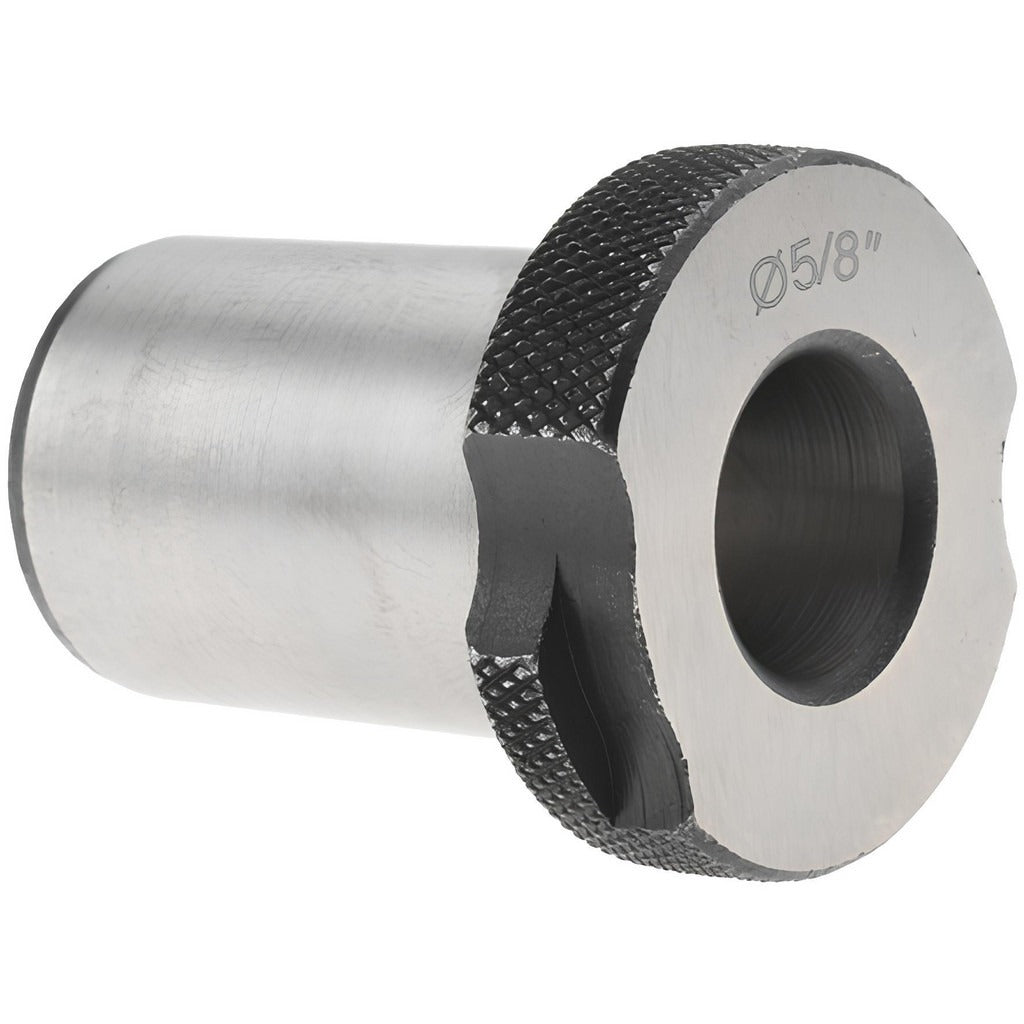

The BONEHAM SF6422MH is a slip-fixed drill bushing designed to guide cutting tools with precision in jig and fixture applications. Built to industry code SF, this bushing features a 0.625 inch inside diameter, a 1 inch body outside diameter, and a 1.375 inch length under the head. The inside diameter is held to a tight tolerance of +0.0001 to +0.0005 inches, ensuring accurate tool guidance and repeatable hole location. Constructed from steel, it provides the durability required for repeated production drilling cycles. The headed design allows it to seat firmly in a liner bushing without additional fasteners for most applications.

This bushing is intended for use in drill jigs, fixtures, and tooling plates in manufacturing, machining, and metalworking environments. It is installed by machinists and toolmakers where slip-renewable bushing systems are used. The SF configuration is a standard industry type suitable for applications requiring a renewable bushing that can be inserted and removed without special tools. The head outside diameter measures 1.4375 inches and the head height is 0.375 inches, fitting standard counterbore configurations matched to the SF series.

Key Features

• SF industry code slip-fixed installation method for use in liner bushings
• Inside diameter tolerance of +0.0001 to +0.0005 inches for precise tool guidance
• Steel construction for durability in high-cycle drilling operations
• Headed design with 1.4375 inch head OD and 0.375 inch head height for positive seating
• Compatible with LS-2 lock screw for secure retention when required
• Renewable bushing design allows replacement without reworking the fixture

Compatibility

Designed for use with LS-2 compatible lock screws. Fits standard liner bushings sized for the SF series with a 1 inch body outside diameter. Intended as an OEM-style renewable drill bushing for SF-series jig and fixture tooling systems.

Installation Notes

Installation is typically performed by a machinist or toolmaker. Ensure the liner bushing bore and mating surfaces are clean and free of burrs before inserting the slip-fixed bushing. When locking the bushing in place, use only the compatible LS-2 lock screw and do not overtighten. Remove cutting tool load and secure the fixture before replacing or inspecting the bushing.
