Boneham AM00001120 Slip-fixed Drill Bushing Sfm

Product Description

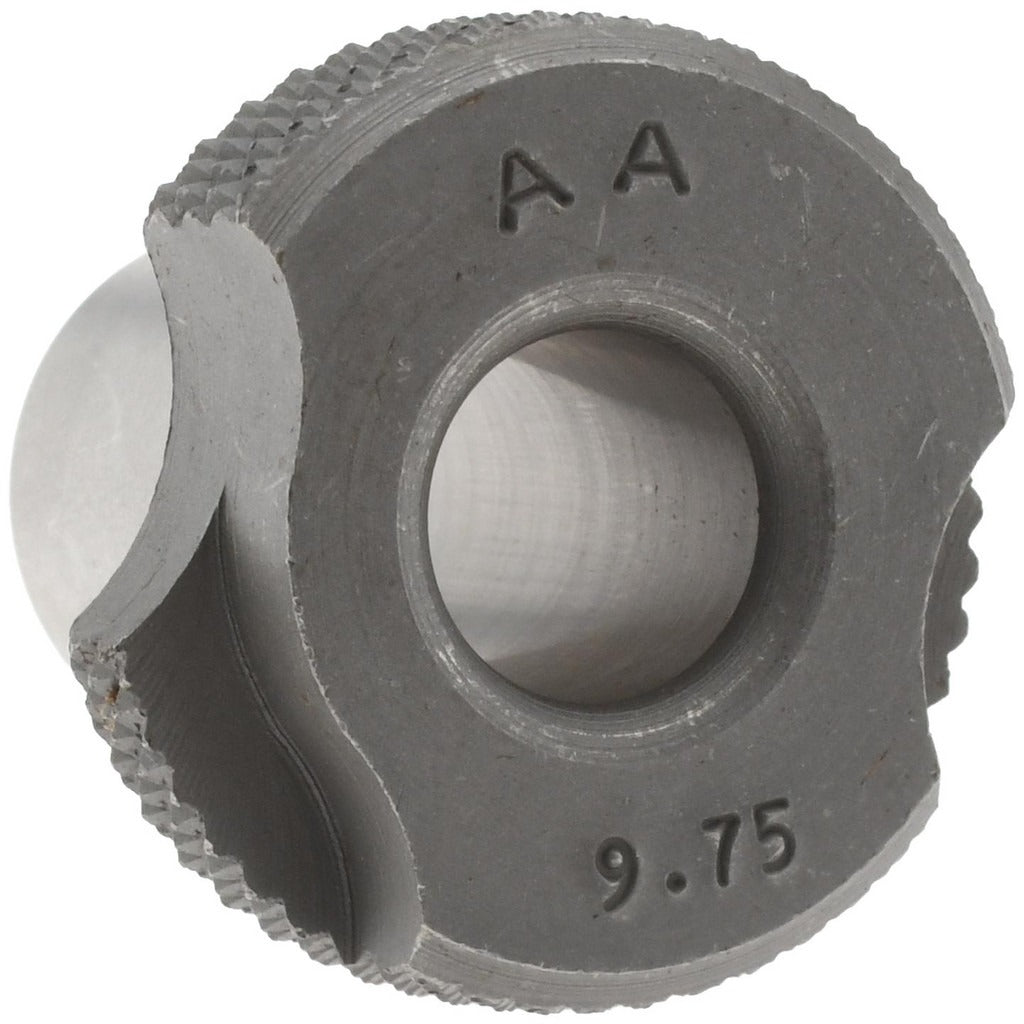

The BONEHAM AM00001120 is a slip-fixed drill bushing manufactured to SFM industry standards. It is designed to guide drill bits and cutting tools with precision during machining and fabrication operations. The bushing features a 9.75 mm inside diameter, a 15 mm body outside diameter, and a 16 mm length under head. Slip-fixed bushings of this type lock into a liner bushing and resist rotation under the thrust and torque loads generated during drilling. Machinists and tool-and-die professionals install these bushings in jig plates to maintain hole location accuracy across repeated operations.

This bushing is suited for use in drill jig applications in both production and maintenance machining environments. Its renewable design allows the bushing to be replaced independently of the jig plate liner, reducing downtime when a worn bushing needs to be swapped out. Typical applications include precision hole location in metal fabrication, assembly tooling, and fixture work where repeatable drill guidance is required.

Key Features

• SFM industry code — conforms to standard slip-fixed bushing specifications
• 9.75 mm inside diameter for precise tool guidance
• 15 mm body outside diameter for secure fit in standard liner bushings
• 16 mm length under head provides adequate tool engagement depth
• Renewable bushing design allows independent replacement without disturbing the liner

Compatibility

Designed as an OEM-style replacement or production component for drill jig assemblies using standard SFM slip-fixed liner bushings with a 15 mm body outside diameter bore.

Installation Notes

Slip-fixed drill bushings are installed and serviced by machinists and toolmakers. Before replacing or installing the bushing, ensure the jig plate and liner bushing bore are clean and free of chips or debris. The bushing should be oriented and locked according to standard jig tooling practice before drilling operations begin. Do not force the bushing into a liner with a non-matching bore diameter, as this will damage the seating surfaces.
