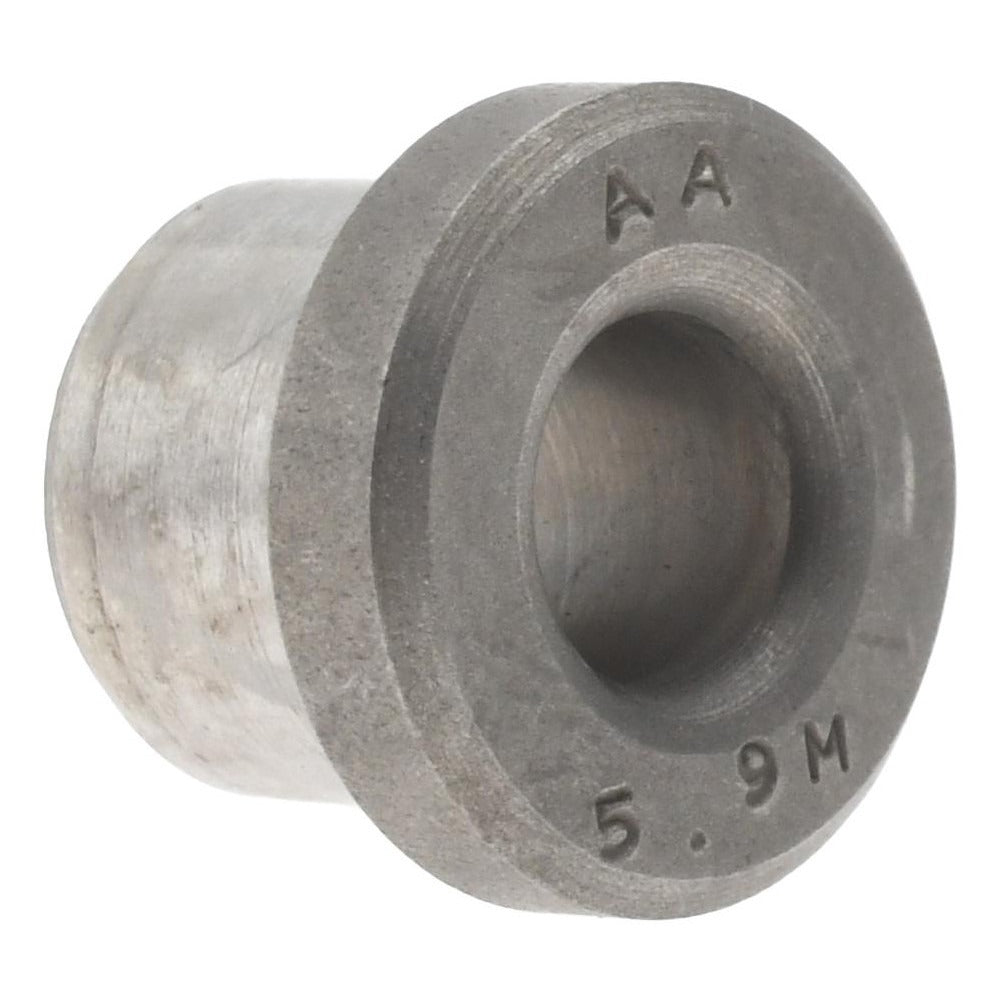

Boneham AM00000206 Drill Bushing Hm 5.9 Inch Id

Product Description

The BONEHAM AM00000206 is a press fit headless drill bushing in the HM industry code series, designed to guide drill bits with precision in jig and fixture applications. Made from steel, it installs without a head flange, allowing it to sit flush within a drill plate or jig body. The inside diameter measures 5.9 inches, with a body outside diameter of 10.00 mm and an overall bushing length of 10.00 mm. This bushing is a non-renewable type, meaning it is permanently pressed into the jig plate. Machinists, tool and die makers, and fixture builders typically install this component during tooling setup or repair operations.

This bushing suits production drilling operations where repeatable hole location accuracy is required. It is used in drill jig assemblies across metalworking, fabrication, and manufacturing environments. The headless design is appropriate for applications where the bushing must sit below or flush with the jig plate surface, minimizing interference with workpieces or mating fixtures. It is sized for applications requiring a 5.9-inch inside diameter guide bore.

Key Features

• HM industry code series press fit headless design for flush jig plate installation
• 5.9-inch inside diameter provides precise drill bit guidance
• Steel construction for durability in repetitive drilling applications
• Non-renewable design for permanent press fit installation
• Body outside diameter of 10.00 mm and overall length of 10.00 mm for compact fitment

Compatibility

Designed as an OEM-style replacement or direct-fit component for drill jig assemblies requiring an HM series press fit headless bushing with a 5.9-inch inside diameter.

Installation Notes

Installation is performed by machinists or tooling technicians using an arbor press or hydraulic press to seat the bushing into a prepared jig plate bore. The receiving hole in the jig plate must be machined to the appropriate interference fit tolerance for the HM bushing series before pressing. Ensure all workpieces are secured and the press force is applied squarely to avoid bushing damage or misalignment. This is a permanent installation and is not intended for removal or replacement after pressing.
