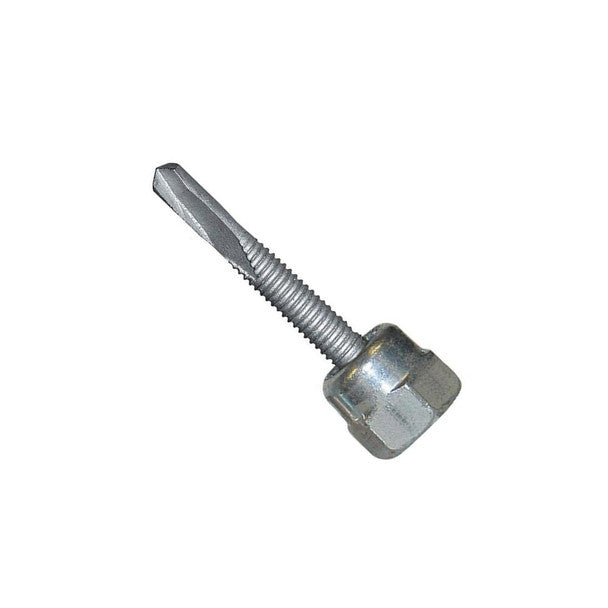

BOLTS DSTR516 Sammys 3/8 inches Vertical Threaded Rod Anchor for Steel 3/8-16 Rod Size

Product Description

The BOLTS DSTR516 is a Sammys three-eighths inches vertical threaded rod anchor designed for steel applications. This product offers a time-efficient solution compared to conventional anchoring methods while also reducing overall installation costs. Installation is straightforward when using the Sammys nut driver.

• Time-saving compared to traditional methods.
• Cost-effective anchoring solution.
• Easy installation with the Sammys nut driver.

Product Highlights

The BOLTS DSTR516 is engineered for use with a three-eighths inches rod size and utilizes a five-sixteenths inches by one and one-quarter inches screw size, making it suitable for various construction and renovation projects.

Product Information

Standard Information

• Substrate: Steel
• Drive: Sammys #14 Nut Driver (8113910)

Technical Specifications

• Mount Style: Vertical
• Rod Size: 3/8-16
• Length: 1.25 inches
• Diameter: 0.3125 inches
• Substrate Fastener Size: 5/16-18 x 1-1/4 inches
• Box Quantity: 25
• Ultimate Pullout Strength: 2200 lb (20 gauge)
• Type: Rod Anchor
• Material: Steel
• Finish: Climaseal, Electro-Zinc
• Grade: C1022 screw, C1010 cap
• UL Approved: EX5098
• FM Approved: 3020935
