Bohn tak23ag Shaded Pole Motor Evaporator Coil 2300 Btu/h

Product Description

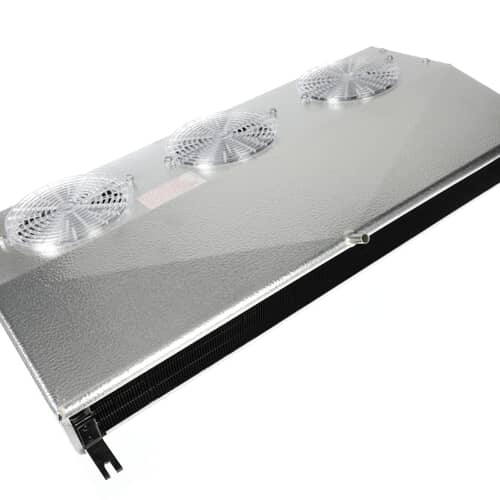

The BOHN tak23ag is a shaded pole motor evaporator coil assembly designed for commercial refrigeration applications. This unit combines an evaporator coil with an integrated shaded pole fan motor, delivering 2300 BTU/h of cooling capacity at 120 volts. It is a Heatcraft commercial appliance component intended for use in reach-in coolers, display cases, or similar low-temperature refrigeration equipment. Installation is typically performed by a licensed commercial refrigeration technician or HVAC/R service professional familiar with Heatcraft system configurations.

The tak23ag is suited for commercial appliance refrigeration systems where a compact, self-contained evaporator coil assembly is required. As a Heatcraft parts and accessories component, it is designed to fit the form and function of commercial refrigeration equipment in foodservice and retail environments. The integrated shaded pole motor simplifies the assembly and reduces the number of separately sourced components during a coil replacement or new installation.

Key Features

• Integrated shaded pole fan motor and evaporator coil in a single assembly
• 2300 BTU/h cooling capacity for commercial refrigeration use
• 120-volt single-phase operation
• Heatcraft commercial appliance parts and accessories lineup
• Compact assembly suitable for reach-in coolers and display cases

Compatibility

Designed as an OEM-style replacement evaporator coil assembly for Heatcraft commercial refrigeration equipment. Consult Heatcraft documentation to confirm fitment with specific cabinet or condensing unit configurations before ordering.

Installation Notes

Installation should be performed by a licensed HVAC/R technician or qualified refrigeration service professional. Disconnect and lock out all electrical power and recover refrigerant per EPA Section 608 requirements before removing the existing evaporator coil assembly. Verify that line voltage matches the 120-volt rating of this assembly prior to energizing. Follow all applicable local mechanical and electrical codes during installation and reconnection.

Technical Specifications

• Cooling Capacity: 2300 BTU/h
• Voltage: 120 volts
• Motor Type: Shaded Pole
• Assembly Type: Evaporator Coil Assembly

Standard Information

• Brand: BOHN
• Manufacturer Part Number: tak23ag
