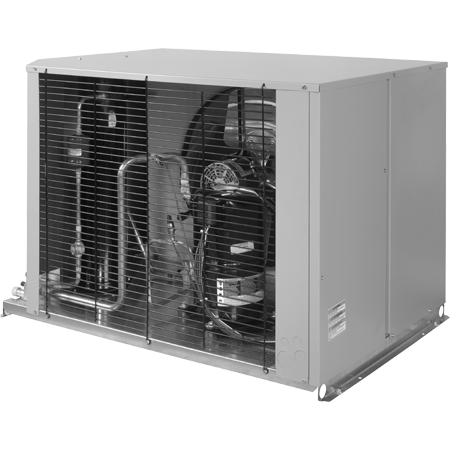

Bohn LZT015M6C Condensing Unit

Product Description

The Bohn LZT015M6C is a condensing unit designed for medium temperature applications. It is built using HyperCore microchannel coil technology and includes a robust aluminum construction. This unit is equipped with a compressor and a pre-painted G90 galvanized cabinet for enhanced corrosion protection.

• Utilizes HyperCore microchannel coil technology.
• Includes a receiver with fusible plug and charging port.
• Features a heavy-duty steel base and large electrical panel.

Product Highlights

This condensing unit offers efficient performance and reliability for your cooling needs.

Product Information

Standard Information

• Brand: Bohn
• MPN: LZT015M6C

Technical Specifications

• Application: Medium Temp
• Compressor: ZS13KAETF5
• Connection Liquid: 1/2 in
• Connection Suction: 7/8 in
• Connection Type: ODS
• Horsepower: 2
• MCA (Amps): 15
• Oil Type: Polyol Ester
• Receiver Capacity: 14 lbs (90% Full)
• Receiver Included: Yes
• Refrigerant: R404A, R22
• Input Voltage: 208-230/1
• Length: 28 1/4 in
• Width: 37 3/4 in
• Height: 19 3/4 in
• Shipping Weight: 209 lbs
