Bohn LEL0155BS6EEAB0000 Unit Cooler Low Temp Freezer

Product Description

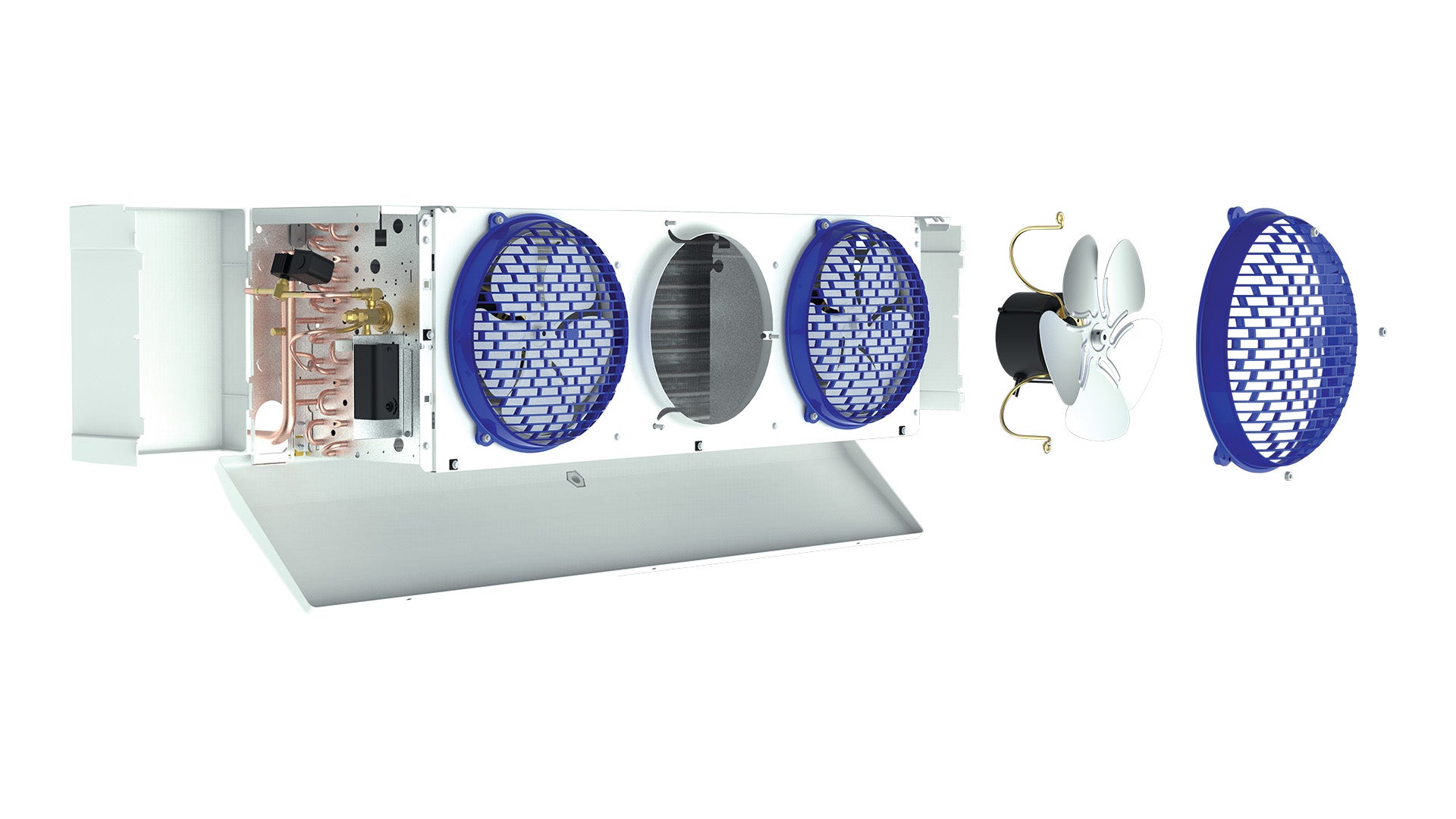

The Bohn LEL0155BS6EEAB0000 unit cooler is suitable for walk-in freezers and low-temperature environments. It has removable front access panels for easy servicing of electrical and refrigeration components.

• Equipped with electric defrost for efficient operation.
• Utilizes a single-speed EC motor for reliable performance.
• Designed with molded fan guards for safety.

Product Highlights

This unit cooler is ideal for applications requiring low temperatures and efficient cooling. It features durable plastic access panels and a well-designed internal structure for optimal functionality.

Product Information

Standard Information

• Brand: Bohn
• MPN: LEL0155BS6EEAB0000

Technical Specifications

• Application: Low Temp, Freezer
• Defrost Type: Electric Defrost
• CFM: 1922
• Fins Per Inch: 6
• Refrigerant: R404A, R448A, R449A, R407A, R407F, R407C
• Voltage: 208-230/1/60
• Number of Fans: 3
• Motor Type: Single Speed EC
• Horsepower: 1/20
• Height: 16.4375 inches
• Length: 61.5 inches
• Width: 15.375 inches
• Weight: 84 lbs
• Connection Size Inlet: 1/2 inches
• Connection Suction: 1 1/8 inches
• Heater Watts: 177
• Heater Amps: 1.5
• Motor Voltage: 208-230/1/60
• Motor Watts: 177
• Motor Amps: 1.5
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 13.7
• Defrost Heater Watts: 3150
• Coil Inlet OD: 1/2 inches
• Suction OD: 1-1/8 inches
• External Equalizer OD: 1/4 inches
• Drain MPT: 3/4 inches
• Unit MCA: 1.6
• Unit MOPD: 15
