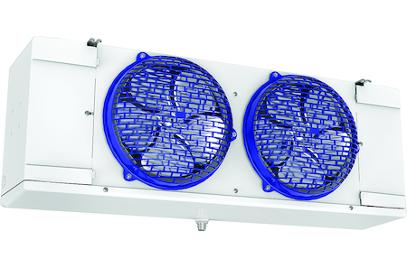

Bohn LEL0095AS6AMAB0200 Unit Cooler

Product Description

The Bohn LEL0095AS6AMAB0200 is a low-profile, air defrost unit cooler suitable for walk-in cooler setups. This unit operates on a 115/1/60 voltage supply and features an ECM motor that enhances efficiency during operation. With a cooling capacity of eight thousand BTU per hour at twenty-five degrees Fahrenheit, it effectively maintains desired temperature levels in medium and high-temperature applications.

• Low-profile design for space efficiency.
• Equipped with two fans for optimal air circulation.
• Hinged, removable front panels for easy maintenance.

Product Highlights

The Bohn LEL0095AS6AMAB0200 is designed for walk-in cooler applications, providing reliable cooling with features that support quick servicing and maintenance.

Product Information

Standard Information

• Manufacturer Part Number: LEL0095AS6AMAB0200
• Application: Medium Temp, High Temp

Technical Specifications

• CFM: 1305
• Connection Size Inlet: 1/2 inches
• Connection Suction: 5/8 inches
• Fins/Inch: 6
• Heater Amps: 1.8
• Heater Watts: 110
• Horsepower: 1/20
• Motor Type: 2-Speed EC
• Number of Fans: 2
• Refrigerant: R404A, R448A, R449A
• Voltage: 115/1/60
• Length: 45.5 inches
• Width: 15.375 inches
• Height: 16.4375 inches
• Shipping Weight: 55 lbs.
