Bohn LEL0095AS6AMAB0000 Unit Cooler

Product Description

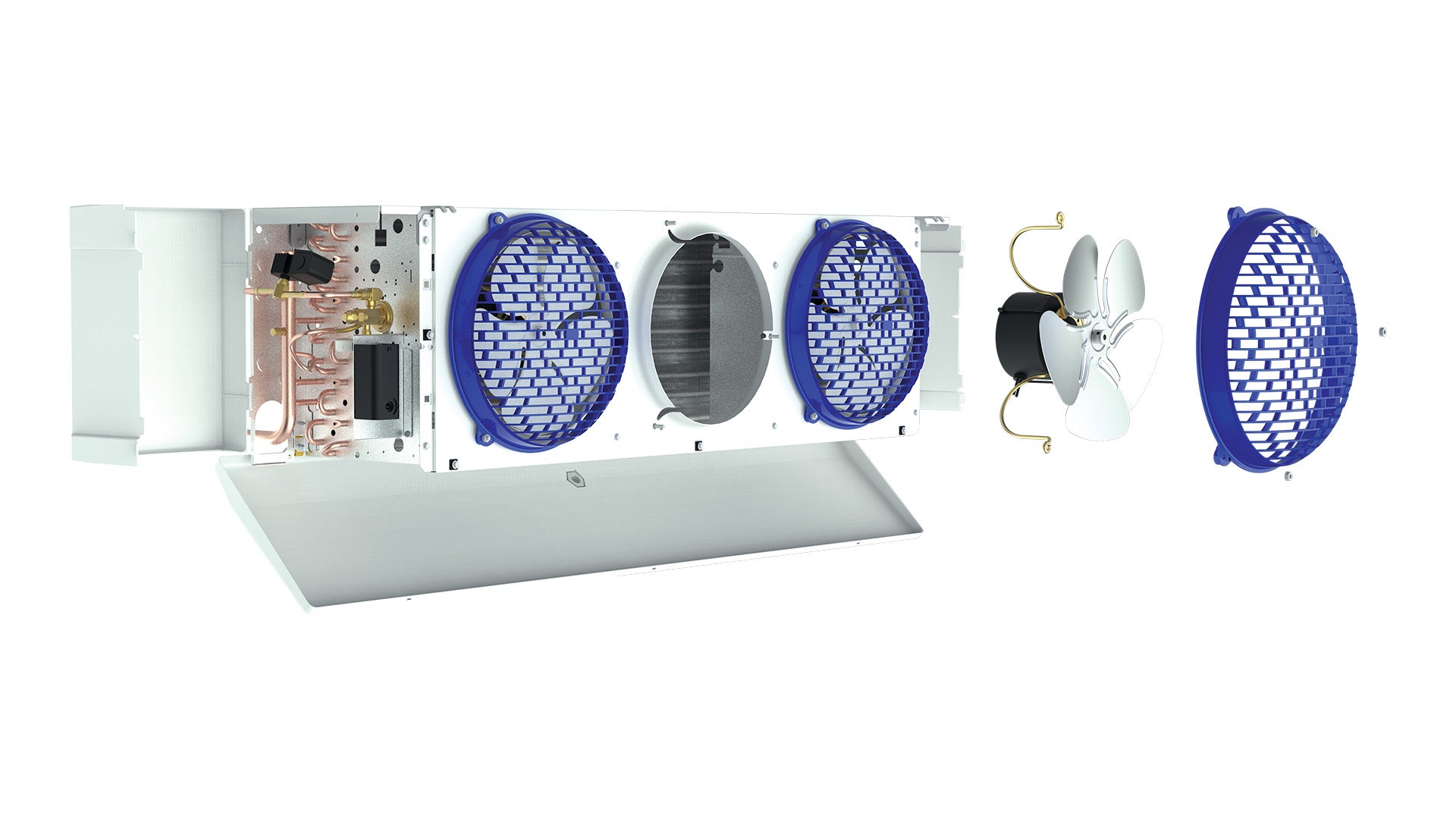

The Bohn LEL0095AS6AMAB0000 is a low-profile unit cooler ideal for medium and high-temperature walk-in cooler applications. This unit features hinged, removable front access panels for easy servicing of electrical and refrigeration components. It includes a molded fan guard and access panels constructed from a durable, lightweight plastic. The cooler utilizes an internally enhanced tubing and fin design to maximize efficiency.

• Air defrost function
• Equipped with a two-speed EC motor
• Features sweat connections

Product Highlights

This unit cooler is designed for optimal performance and ease of maintenance in demanding environments.

Product Information

Standard Information

• Brand: Bohn
• MPN: LEL0095AS6AMAB0000

Technical Specifications

• Application: Medium Temp, High Temp, Cooler
• CFM: 1305
• Connection Size Inlet: 1/2 inches
• Connection Suction: 5/8 inches
• Fins/Inch: 6
• Heater Amps: 1.8
• Heater Watts: 110
• Horsepower: 1/20
• Motor Type: 2-Speed EC
• Number of Fans: 2
• Refrigerant: R404A, R448A, R449A, R407A, R407F, R407C
• Voltage: 115/1/60
• Length: 45.5 inches
• Width: 15.375 inches
• Height: 16.4375 inches
• Shipping Weight: 55.00 lbs.
• Product Type: Walk In Unit Coolers
• Defrost Type: Air Defrost
• Capacity BTUH: 10,000
• Coil Inlet OD: 1/2 inches
• Suction OD: 5/8 inches
• Drain MPT: 3/4 inches
