Bohn LEL0055AS6AMAB0300 Low Profile Unit Cooler

Product Description

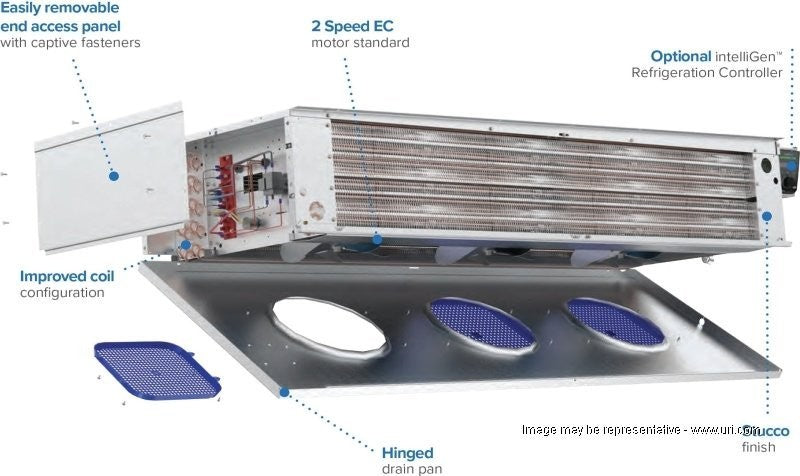

The Bohn Low Profile Unit Cooler, MPN LEL0055AS6AMAB0300, is designed for efficient operation in maintaining cool temperatures in walk-in coolers. The unit features hinged and removable access panels, simplifying maintenance and allowing for easy access to essential electrical and refrigeration components. Additionally, it includes a hinged drain pan for straightforward cleaning and an easy service motor mount designed to streamline maintenance tasks.

• Hinged and removable access panels for easy maintenance
• Hinged drain pan for convenient cleaning
• Easy service motor mount reduces maintenance time

Product Highlights

Product Information

Standard Information

• Brand: Bohn
• Power: 55 W

Technical Specifications

• Voltage: 115 V
• Amperage: 0.9 A
• Horsepower: 1/20 hp
• Frequency: 60 Hz
• Phase: 1 ph
• BTU: 6100 Btu/hr
• CFM: 610 cfm
• Refrigerant: R-448A
• Air Flow Rate: 1036 cu-m/hr
• Number of Fans: 1
• Motor: ECM Motor
• Tube Size: 3/16 in OD x 15 in L
• Fins per Inch: 6 FPI
• Temperature Range: 10 to 25 deg F
• Dimensions: 29-1/2 in L x 16-7/16 in H x 13-1/4 in D
