Bohn LCH0035LCBCZA0000 Air-Cooled Condensing Unit

Product Description

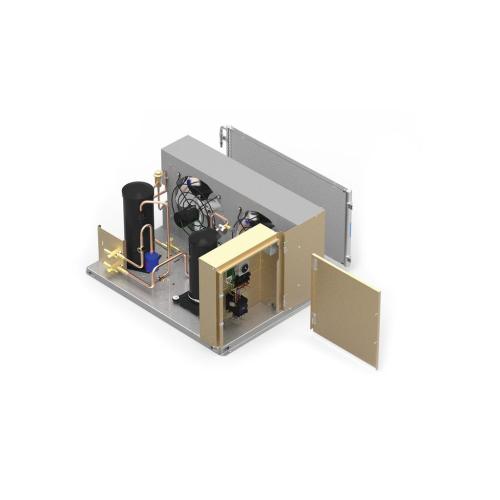

The Bohn LCH0035LCBCZA0000 is an air-cooled condensing unit suitable for low-temperature applications. It has a scroll compressor, making it efficient for refrigeration tasks. The design allows for easy access to components with removable cabinets and externally mounted piping.

• Utilizes a scroll compressor for optimal refrigeration.
• Designed for low-temperature freezer use.
• Features easy-access removable cabinets.

Product Highlights

This unit is energy efficient and approved for R-404A refrigerant. It can be configured to meet different regulatory requirements, including minimum AWEF standards.

Product Information

Standard Information

• Brand: Bohn
• Type: Air-Cooled Condensing Units

Technical Specifications

• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Application: Freezer
• Operating Range: Low Temperature
• Compressor Type: Scroll
• Voltage: 208-230/3/60
• Condenser Coil Type: Microchannel Coil
• Capacity BTUH: 13,070
• Height: 19.75 inches
• Depth: 28.25 inches
• Width: 39.125 inches
• Net Weight: 232 lbs
• Sound Level: 64 dBA
• Refrigerant: R-404A
