BOHN LCH0022LBACZ Condensing Unit-For Walk In Freezer

Product Description

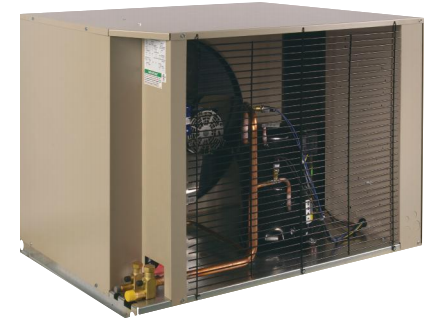

The BOHN LCH0022LBACZ is a condensing unit tailored for walk-in freezer applications. This air-cooled unit is a part of Heatcraft's compressorized products, specifically designed for outdoor usage. It operates with a scroll compressor and utilizes a microchannel coil. The unit is compatible with Heatcraft unit cooler models LEL0080BS6EEA and the discontinued LCE676BB, enhancing flexibility in refrigeration systems.

• Designed for walk-in freezer applications.
• Compatible with Heatcraft unit coolers LEL0080BS6EEA and LCE676BB.
• Certified for outdoor use in low-temperature environments.

Product Highlights

This unit is engineered to ensure optimal performance in refrigeration systems, providing reliability and efficiency.

Product Information

Standard Information

• Category: Compressorized Products
• Type: Air-Cooled Condensing Units

Technical Specifications

• Style: ½ - 6 HP Horizontal Air Discharge
• Application: Outdoor
• Compressor Type: Scroll
• Compressor P/N: ZF07KAE-PFV
• Operating Range: Low Temperature
• Voltage: 208-230/1/60
• Cabinet: C1
• Refrigerant Type: R-404A, R-507A, R-407A, R-407C, R-448A, R-449A
• Condenser Coil Type: Microchannel Coil
• Rating Point °F: -20°F SST at 95°F Ambience
• Capacity (BTUH): 7,550
• Compressor RLA: 12.4
• Compressor LRA: 75
• Fan Motor Qty: 1
• Motor HP: 0.5
• Fan Motor FLA: 5
