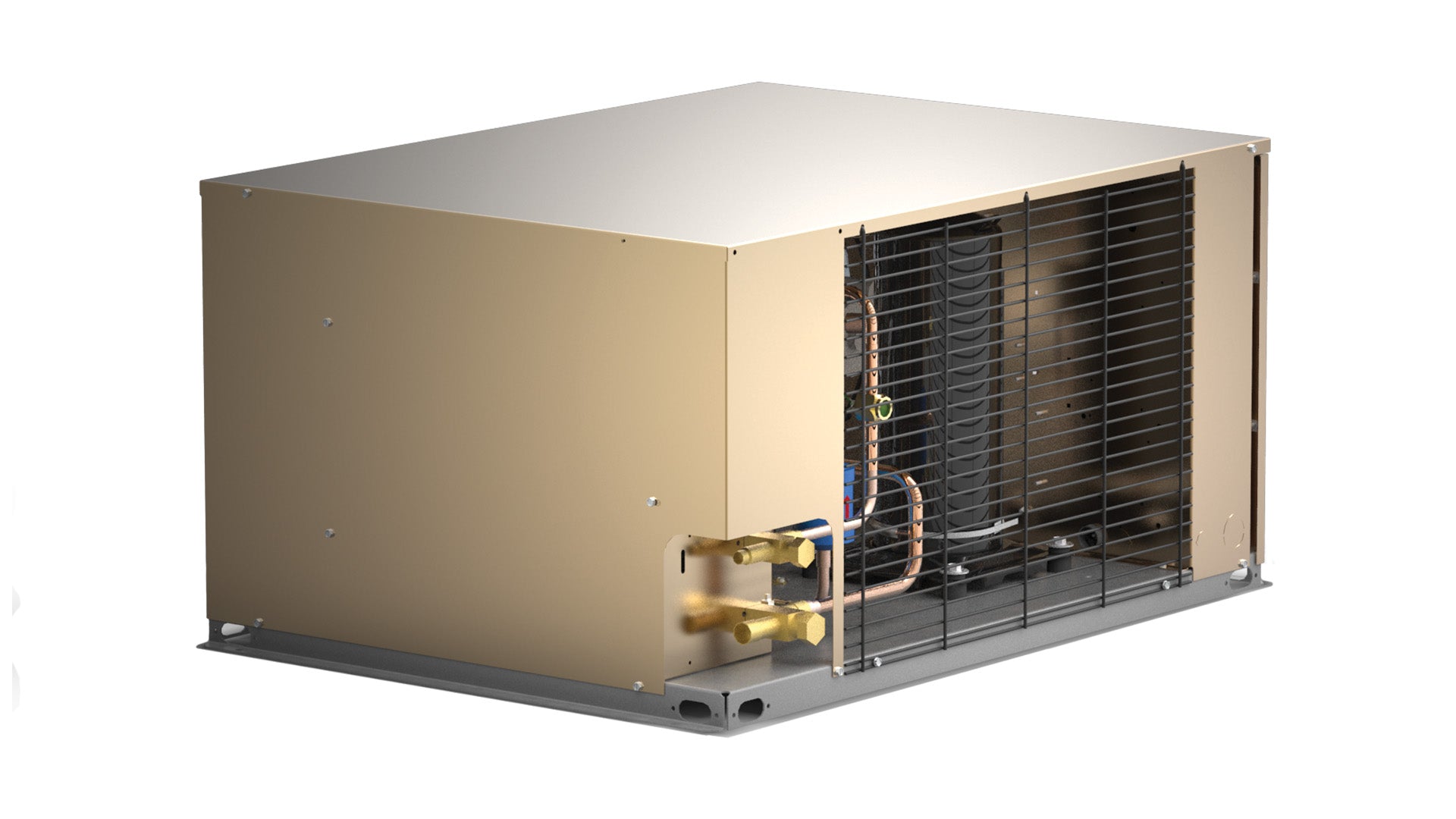

Bohn LCH0018LBBCZA0200 0.5 - 6 HP Horizontal Air Discharge Condensing Unit

Product Description

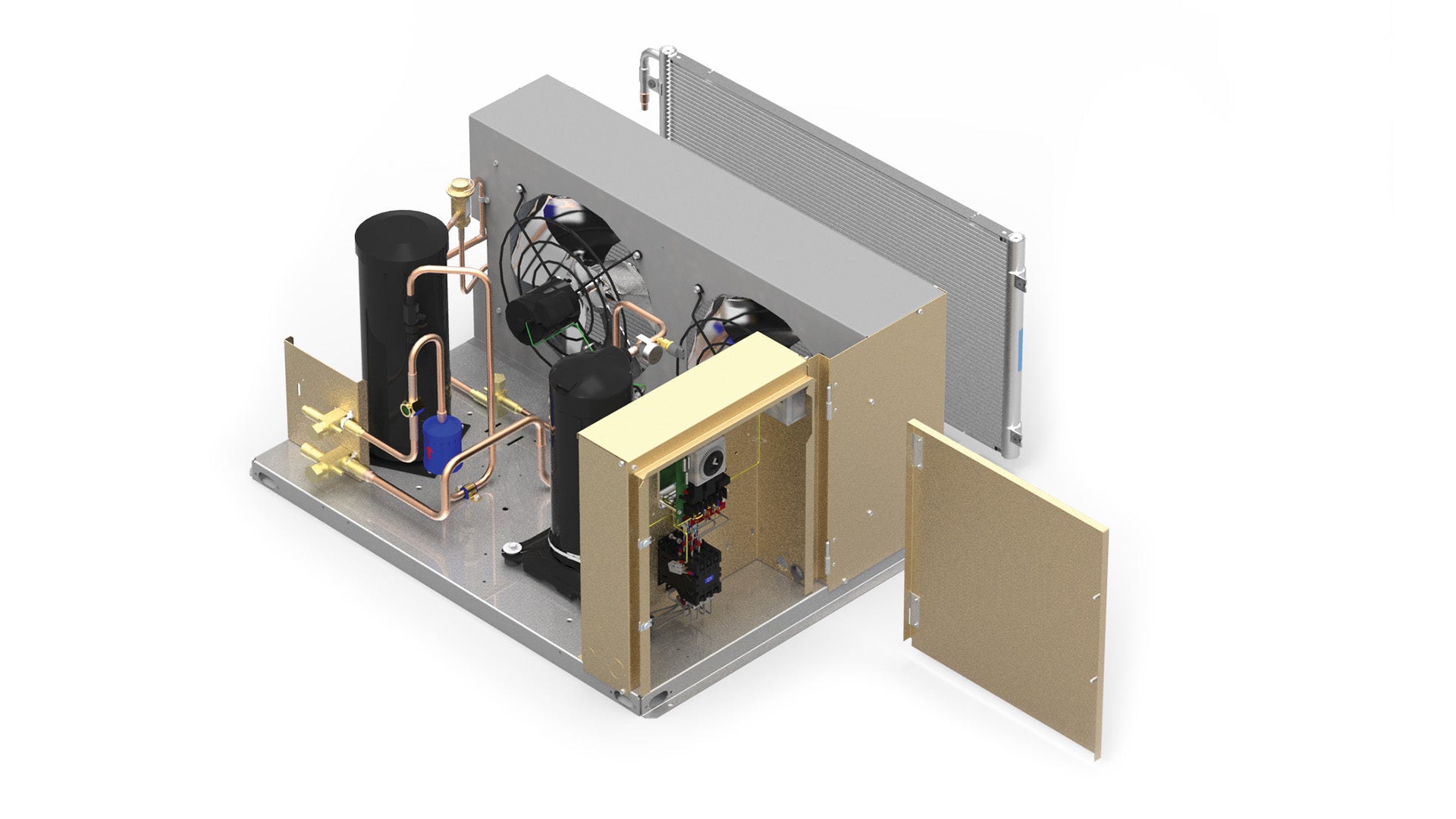

The Bohn LCH0018LBBCZA0200 is an air-cooled condensing unit designed for flexibility in cooler applications. It uses a scroll compressor and operates efficiently at low temperatures. The unit includes externally mounted piping connections and removable cabinets for easy access to components.

• Air-cooled design with horizontal air discharge.
• Scroll compressor optimized for low-temperature settings.
• Microchannel coil condenser enhances heat exchange efficiency.

Product Highlights

This condensing unit is engineered for energy efficiency and is approved for use with R-404A refrigerant. It complies with minimum AWEF standards.

Product Information

Standard Information

• Brand: Bohn
• Type: Air-Cooled Condensing Units

Technical Specifications

• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Application: Cooler
• Operating Range: Low Temperature
• Compressor Type: Scroll
• Voltage: 208-230/1/60
• Condenser Coil Type: Microchannel Coil
• Capacity BTUH: 6,670
• Refrigerant: R-404A
• Height: 19.75 inches
• Width: 24.625 inches
• Depth: 28.25 inches
• Weight: 170 lbs
• Sound Level: 63 dBA
