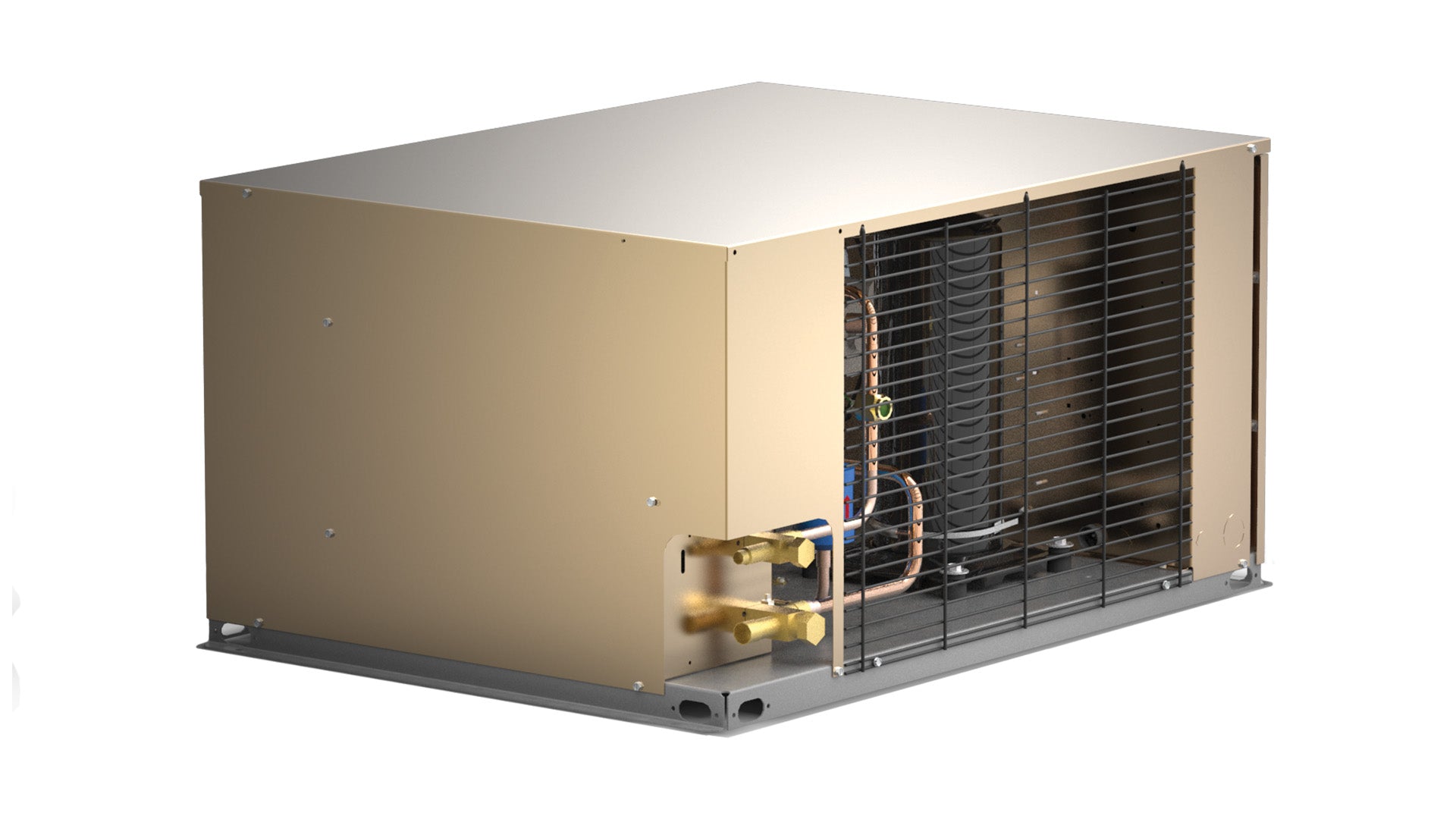

Bohn LCH0012MCACZA0000 Air-Cooled Condensing Unit

Product Description

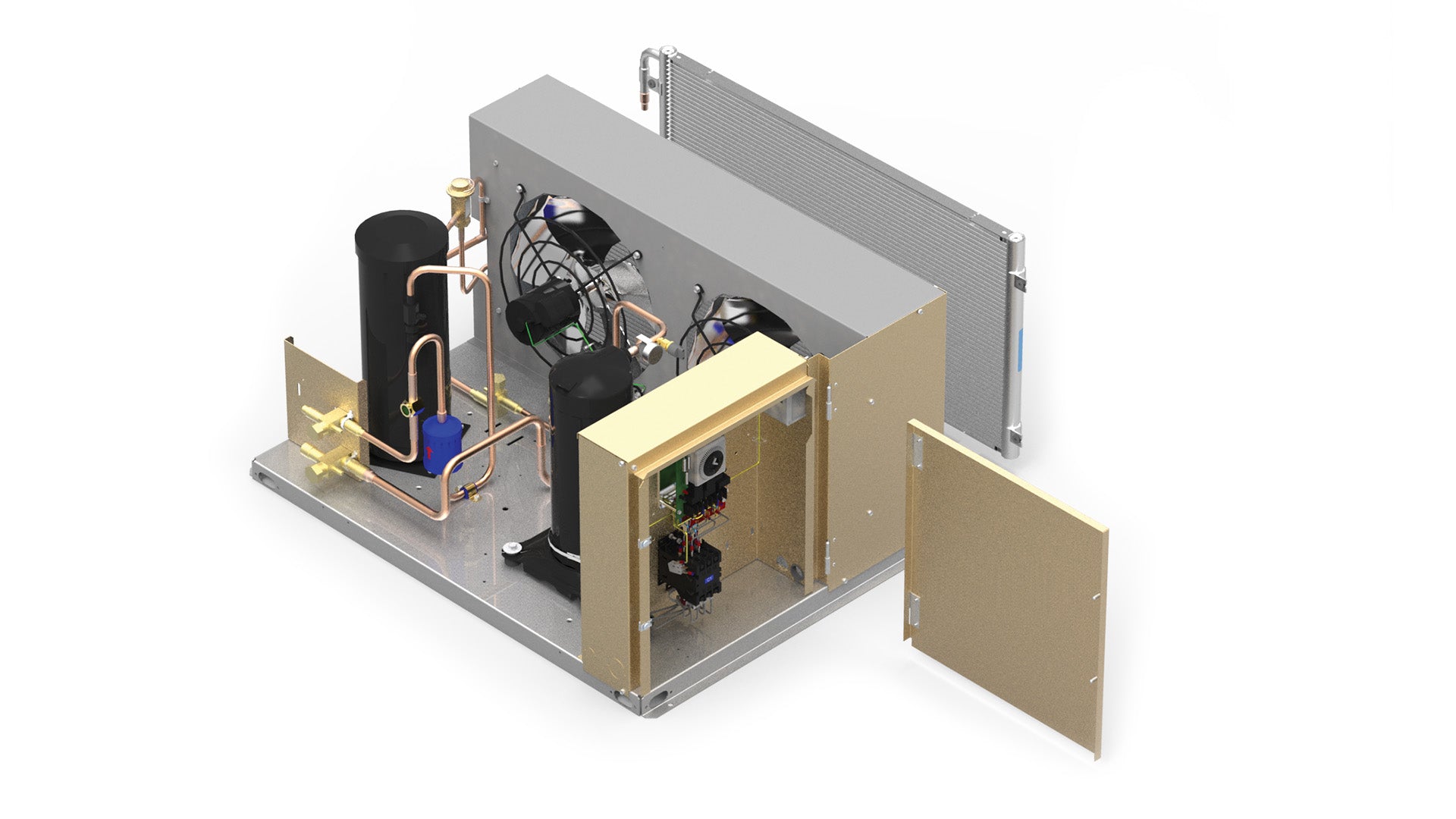

The Bohn LCH0012MCACZA0000 is an air-cooled condensing unit that offers versatility and ease of maintenance. It is suitable for medium temperature applications. This unit features externally mounted piping connections and removable cabinets for simple access to internal components.

• Designed for flexibility and serviceability with externally mounted piping connections.
• Energy efficient and approved for use with multiple refrigerants.
• Configurable to meet minimum AWEF, Title 24, or other regulations.

Product Highlights

This condensing unit is designed for energy efficiency and is compatible with refrigerants like R-404A, R-407A, R-448A, and R-449A. Utilize this unit where installation and serviceability are priorities.

Product Information

Standard Information

• Brand: Bohn
• Type: Air-Cooled Condensing Units

Technical Specifications

• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Application: Cooler
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Voltage: 208-230/3/60
• Condenser Coil Type: Microchannel Coil
• Height: 19.75 inches
• Depth: 28.25 inches
• Width: 39.125 inches
