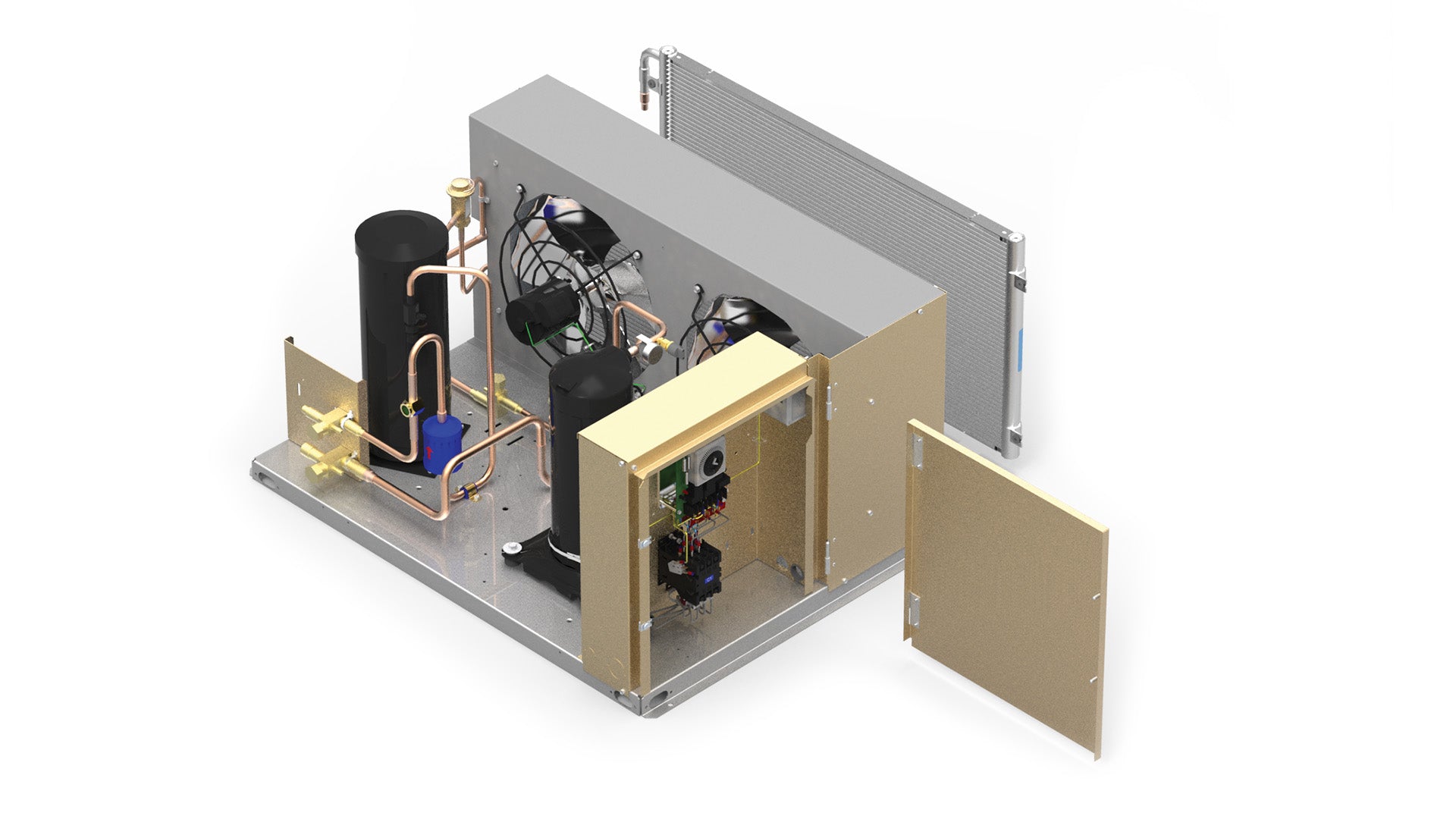

Bohn LCH0012MBACZA0000 Air-Cooled Condensing Unit 0.5-6 HP

Product Description

The Bohn LCH0012MBACZA0000 is an air-cooled condensing unit designed for flexibility and serviceability. This unit features a scroll compressor, making it effective for medium temperature applications. It has removable cabinets for easy access to components and is compatible with multiple refrigerants to meet specific regulatory requirements.

• Designed for applications ranging from 0.5 to 6 HP.
• Equipped with a scroll compressor for efficient cooling.
• Features externally mounted piping connections for convenient installation.

Product Highlights

This unit is ideal for commercial coolers and works well in environments requiring reliable temperature control.

Product Information

Standard Information

• Brand: Bohn
• MPN: LCH0012MBACZA0000

Technical Specifications

• Product Type: Air-Cooled Condensing Unit
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Input Voltage: 208-230/1/60
• Condenser Coil Type: Microchannel Coil
• Capacity: 14,320 BTUH
• Height: 19.75 inches
• Width: 39.125 inches
• Depth: 28.25 inches
• Approximate Net Weight: 215 lbs
• Sound Level: 63 dBa
• Refrigerant: R-404A
