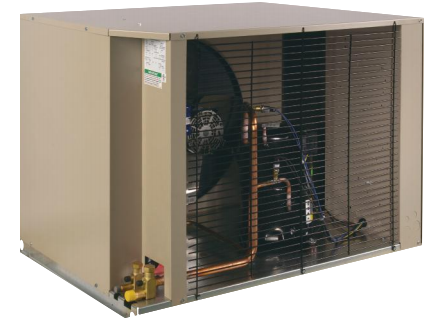

Bohn LCH0010MBACZ Condensing Unit

Product Description

The Bohn LCH0010MBACZ is a reliable air-cooled condensing unit suitable for outdoor use, specifically designed for walk-in coolers. This unit features a scroll compressor and is compatible with various refrigerants such as R-404A and R-507A. It is built with painted steel cabinets that enhance durability and provide protection against corrosion.

• Microchannel coil technology for effective heat transfer.
• Suction service valves positioned outside the cabinet for easy installation.
• Includes essential components such as a receiver, liquid shut-off valve, and charging port.

Product Highlights

This condensing unit offers straightforward serviceability with external piping connections and removable cabinets, allowing for convenient access to key components.

Product Information

Standard Information

• Application: Outdoor
• Compressor Type: Scroll

Technical Specifications

• Voltage: 208-230/1/60
• Refrigerant Type: R-404A, R-507A, R-407A, R-407C, R-448A, R-449A
• Condenser Coil Type: Microchannel Coil
• Capacity (BTUH): 12,200 with R-404A
• Height: 19 3/4 inches
• Depth: 28 1/4 inches
• Width: 24 5/8 inches
• Approx. Net Weight: 179 lbs
• Liquid Line Size: 3/8 inch ID
• Suction ID: 5/8 inch
