Bohn LCH0008MCACZA0000 Air-Cooled Condensing Unit 0.5 - 6 HP

Product Description

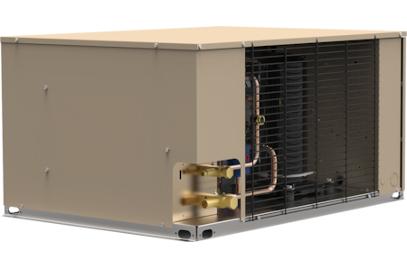

The Bohn LCH0008MCACZA0000 is an air-cooled condensing unit suitable for outdoor use. It features a Copeland Scroll compressor designed for medium temperature applications.

• Compatible with refrigerants R404A, R507A, R448A, R449A, R407A, and R407C.
• Utilizes a microchannel coil for efficient operation.
• Operates on a voltage of 208-230/3/60.

Product Highlights

This unit offers reliable cooling for medium temperature environments and is built for durability with a painted steel cabinet and a well-designed receiver.

Product Information

Standard Information

• Brand: Bohn
• MPN: LCH0008MCACZA0000

Technical Specifications

• Product Type: Air-Cooled Condensing Unit
• Product Category: Condensing Units and Packaged Systems
• Application: Medium Temp
• Compressor Type: Scroll
• Voltage: 208-230/3/60
• Cabinet: C1
• Condenser Coil Type: Microchannel Coil
• Capacity BTUH: 8,980
• Height: 19.75 inches
• Width: 24.625 inches
• Depth: 28.25 inches
• Weight: 168 lbs
• Receiver Capacity: 90% Full (9 lbs)
• Sound Data DBA: 61
• Horsepower: 3/4
• Connection Liquid: 3/8 inches
• Connection Suction: 5/8 inches
• Receiver Included: Yes
