Bohn LCH0005MCACZA0000 Air Cooled Outdoor Condensing Unit

Product Description

The Bohn LCH0005MCACZA0000 is an air-cooled condensing unit suitable for outdoor installation. This equipment utilizes a scroll compressor and is designed for medium-temperature applications. The unit is made from galvanized and painted steel, ensuring durability and long-lasting performance.

• Air-cooled design for effective outdoor use
• Compatible with R-404A refrigerant
• Scroll compressor for reliable operation

Product Highlights

This unit is built for flexibility and easy service access, making maintenance straightforward.

Product Information

Standard Information

• Brand: Bohn
• MPN: LCH0005MCACZA0000

Technical Specifications

• Cooling Capacity: 7660 BTU/Hour
• Input Voltage: 208/230 Volt AC
• Frequency Rating: 60 Hertz
• Number of Phases: 3
• Power Rating: 1/2 HP
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
• Enclosure Finish: Galvanized
• Approx Net Weight: 167 Pound

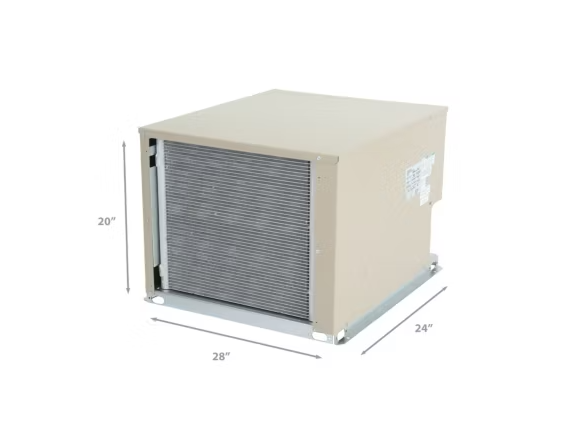

• Dimensions: 25-1/8 Inch Width x 28-1/4 Inch Depth x 19-3/4 Inch Height
• Application: Cooler
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Refrigerant: R-404A
• Fan Motor Quantity: 1
• Liquid Od: 0.375
• Suction Od: 0.625
