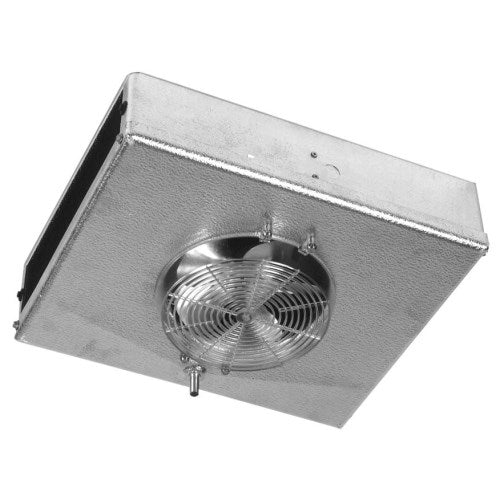

Bohn BTO13AG Top Mount Twin Coil Unit Cooler

Product Description

The Bohn BTO13AG is a twin coil unit cooler designed for medium temperature applications. This product has a compact, two-way design that allows for medium velocity airflow. The unit mounts flush to the ceiling, drawing air through the fan and discharging it from both sides. It features air defrost and is equipped with two motors.

• Twin coil design for efficient cooling
• Air defrost mechanism
• Operates at 115/1/60 voltage

Product Highlights

This unit cooler is suitable for use in various medium temperature environments, ensuring optimal cooling performance.

Product Information

Standard Information

• Brand: Bohn
• MPN: BTO13AG

Technical Specifications

• Application: Medium Temp
• Unit Cooler Style: Dual Flow
• Defrost Type: Air
• Capacity (Btu/Hr): 1300
• CFM: 240
• Coil Finish: Uncoated
• Coil Coating: Standard
• Number of Motors: 2
• Number of Fan Motors: 2
• Motor Design: Shaded Pole
• Cabinet Finish: Textured
• Cabinet Material: Aluminum
• Length (In.): 19 1/8
• Width (In.): 5 3/4
• Height (In.): 16 1/8
• Shipping Weight (Lbs.): 15.00
• Weight (lbs): 14
• Voltage: 115/1
• Hertz: 60 Hz
• Full Load Amps @ 115 V: 1.60A
• Evaporator Mounting Style: Ceiling Mount
• Connection Type: IDS Suction x ODS Inlet
• Connection Size Inlet (In.): 1/2
• Inlet Connection (In.): 1/2 ODS
• Connection Suction (In.): 1/2
• Suction Line Size (In.): 1/2 ID
• Drain Connection (In.): 1/2 OD
• Depth (In.): 16-1/8
