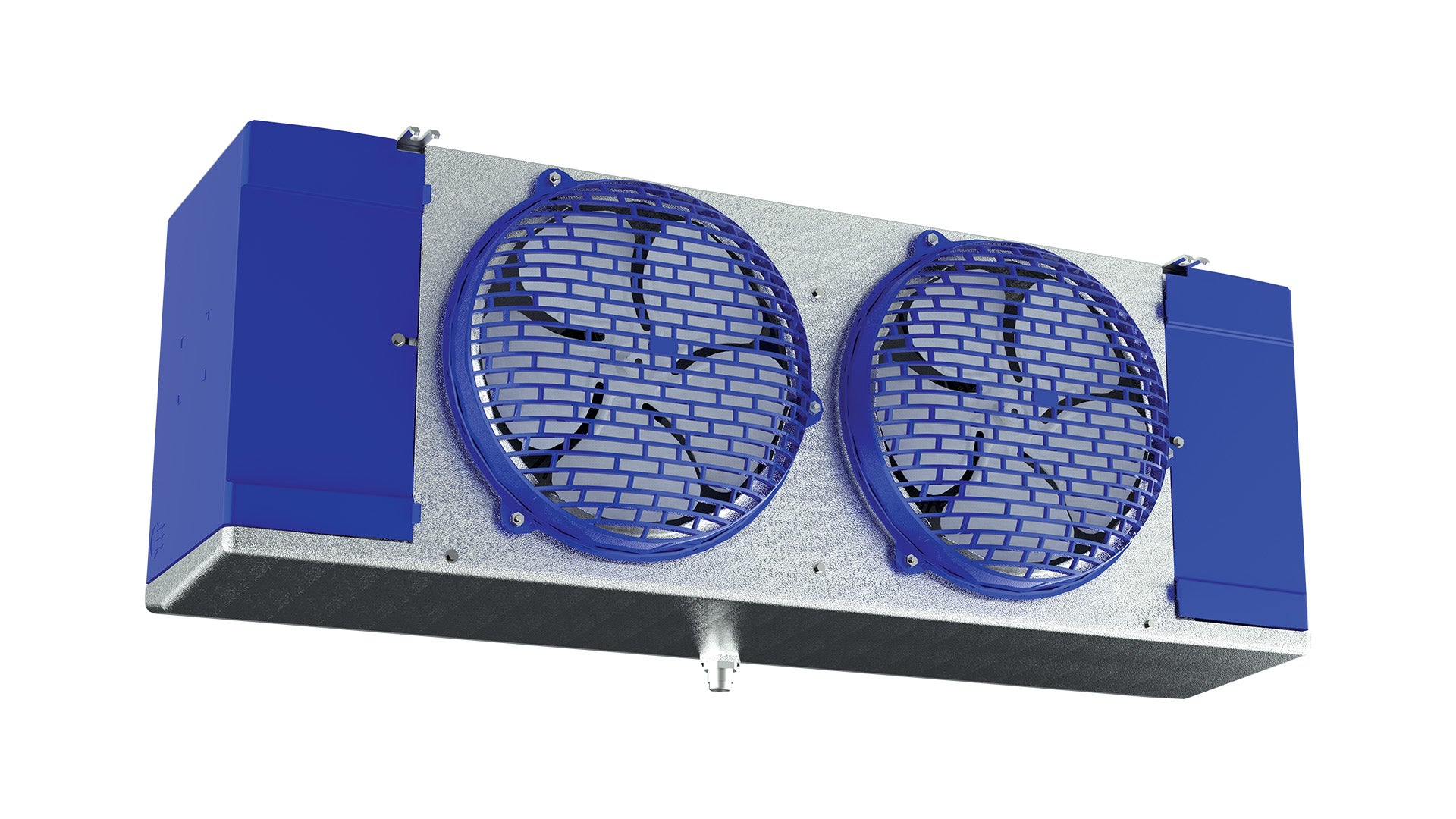

Bohn BEL0170BS6EMAB0000 Low Profile Unit Cooler 17,900 BTU

Product Description

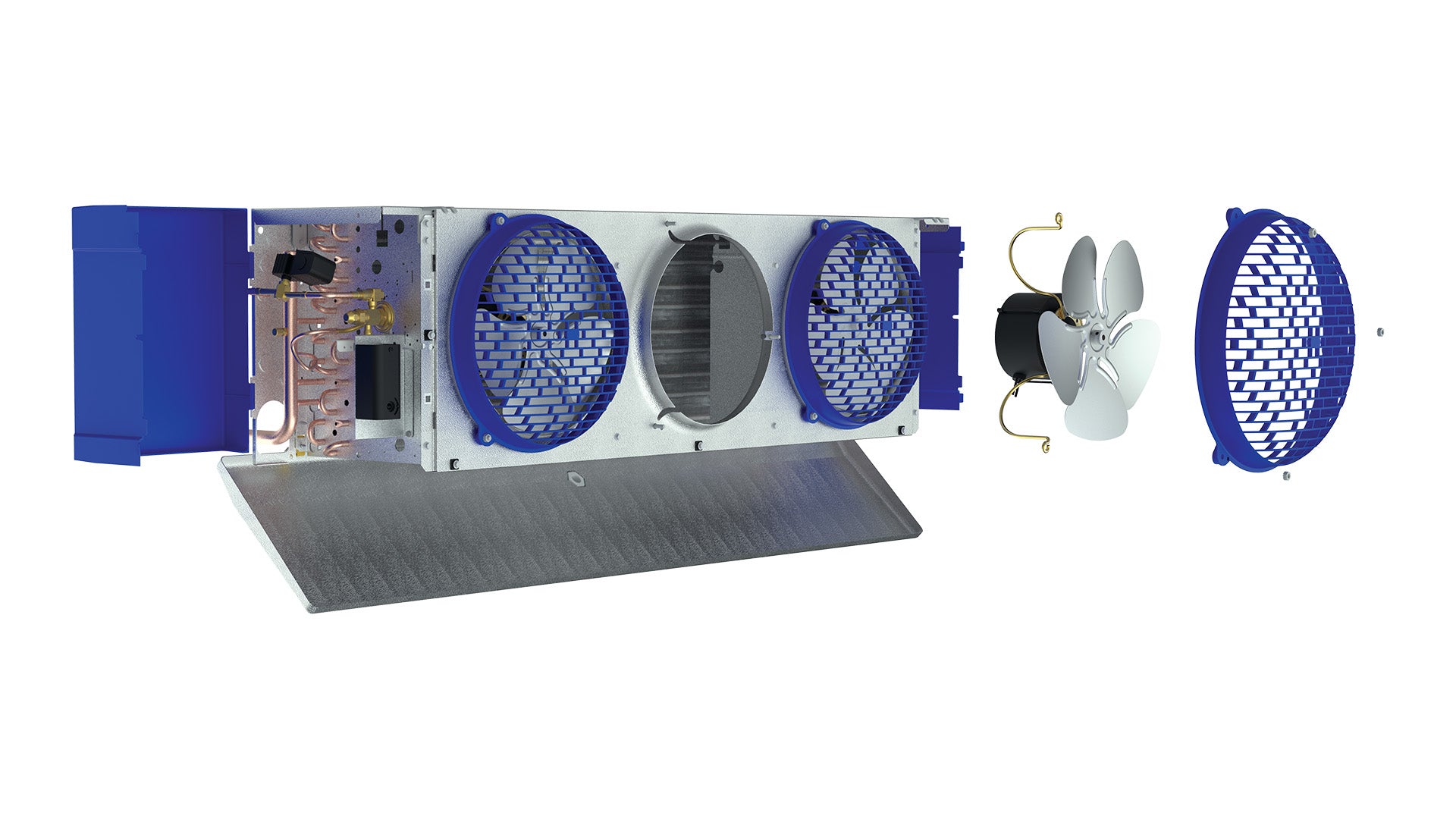

The BOHN BEL0170BS6EMAB0000 is a low-profile unit cooler engineered for efficiency and improved air circulation. Designed for freezer applications, it features hinged and removable access panels, a hinged drain pan, and an easy-service motor mount. The unit cooler is designed to help reduce maintenance time and costs. Operates at 208-230/1/60 voltage.

• Engineered for efficiency and improved air circulation.
• Features hinged and removable access panels.
• Equipped with a hinged drain pan.

Product Highlights

This low-profile unit cooler is ideal for freezer applications, offering improved air circulation and easy maintenance.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BEL0170BS6EMAB0000
• Country of Origin: N/A

Technical Specifications

• Product Brand: Bohn
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Classification: current
• Application: Freezer
• Voltage: 208-230/1/60
• Defrost Type: Electric Defrost
• FPI: 6
• Dual Rated: true
• Rating Point F: 10°F TD -20°F SST
• Refrigerant: R-448A
• Capacity BTUH: 17,900
• CFM: 2,741
• Height (In.): 16.4375
• Depth In: 13.25
• Length (in.): 77.5
• Motor Type: 1-Speed EC
• No Of Fans: 4
• Motor HP: 1/20
• Unit MCA: 2.1
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 236
• Motor Amps: 2
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 18.3
• Defrost Heater Watts: 4200
• Coil Inlet OD: 1/2
• Suction Od: 7/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4
• Coil Type: Aluminum Fin, Copper Tube
• Connection Size: 3/4 in
• Connection Type: MPT
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Temperature Rating: 10 to 25 deg F
