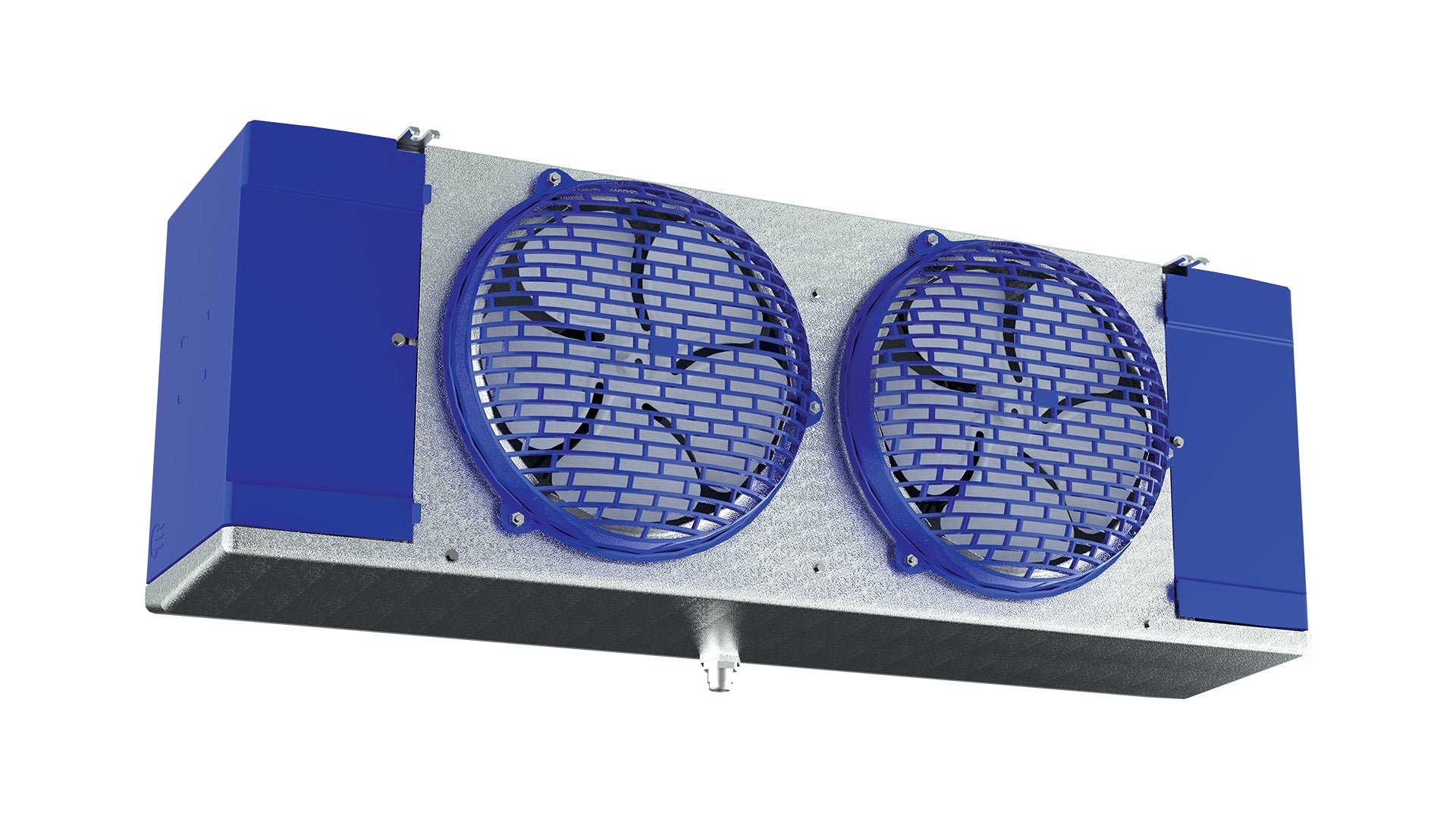

Bohn BEL0155BS6EMAB0000 Low Profile Unit Cooler 16,000 BTUH

Product Description

The BOHN BEL0155BS6EMAB0000 is a low-profile unit cooler engineered for efficiency and improved air circulation. Designed for cooler applications, it features hinged and removable access panels, a hinged drain pan, and an easy-service motor mount. This unit cooler utilizes electric defrost and is compatible with R-448A refrigerant. It operates at 208-230/1/60 voltage and delivers 16,000 BTUH capacity with a CFM of 1,922.

• Engineered for efficiency and improved air circulation.

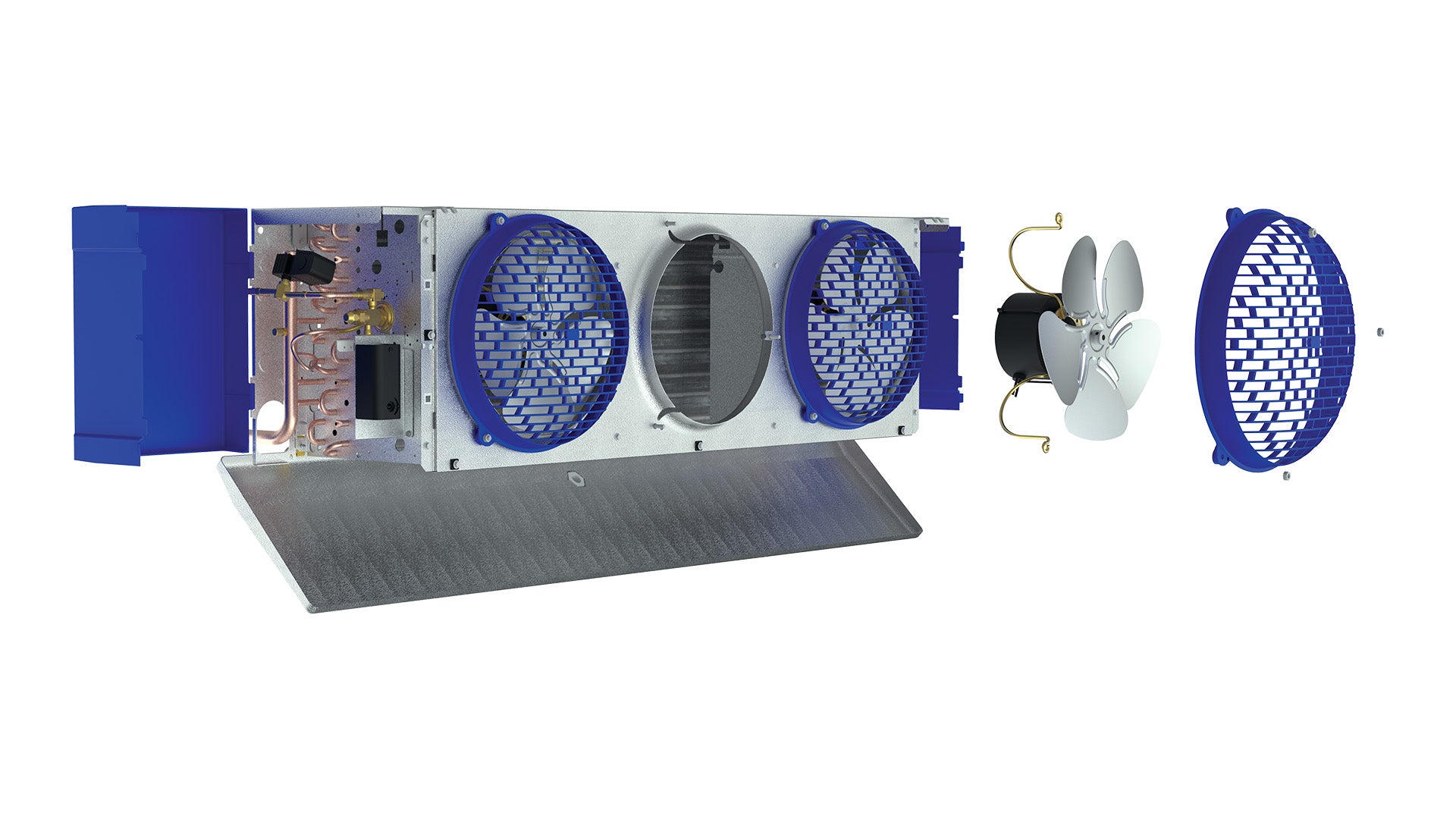

• Features hinged and removable access panels and a hinged drain pan.
• Equipped with an easy service motor mount.

Product Highlights

This Bohn low-profile unit cooler is designed for efficient air circulation in cooler applications. Features include easy-access panels, electric defrost, and compatibility with R-448A refrigerant.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BEL0155BS6EMAB0000
• Country of Origin: N/A

Technical Specifications

• Product Brand: Bohn
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Classification: current
• Application: Cooler
• Voltage: 208-230/1/60
• Defrost Type: Electric Defrost
• FPI: 6
• Dual Rated: true
• Rating Point F: 10°F TD 25°F SST
• Refrigerant: R-448A
• Capacity BTUH: 16,000
• CFM: 1,922
• Height (In.): 16.4375
• Depth In: 13.25
• Length (in.): 61.5
• Est Net Weight (lbs): 78.3
• Motor Type: ECM
• No Of Fans: 3
• Motor HP: 1/20
• Unit MCA: 1.6
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 165
• Motor Amps: 1.5
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 13.7
• Defrost Heater Watts: 3150
• Coil Inlet OD: 1/2
• Suction Od: 1-1/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4
• Coil Type: Aluminum Fin, Copper Tube
• Connection Size: 3/4 in
• Connection Type: MPT
• Fins per Inch: 6 FPI
• Frequency Rating: 60 Hz
• HP Rating: 1/20 hp
• Material: Stainless Steel
• Number of Speeds: 2
• Phase: 1 ph
• Power Rating: 165 W
• Refrigerant Type: R-448A
• Temperature Rating: 10 to 25 deg F
• Voltage Rating: 208 to 230 V
• Additional Information: Electric Defrost Style, 15 A Maximum Overcurrent Protection Device, 1.6 A Minimum Current Ampacity, 5/8 in Suction, 1/2 in Coil Inlet, 1/4 in External Equalizer
