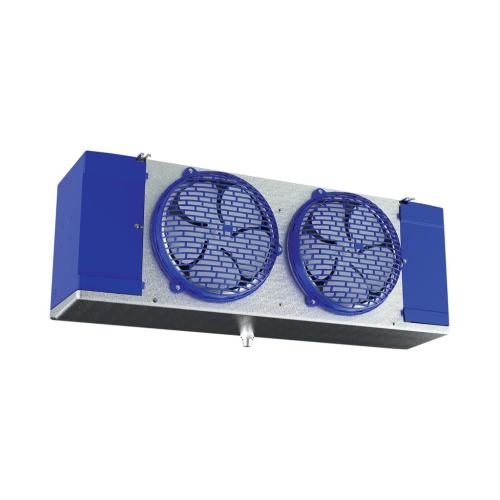

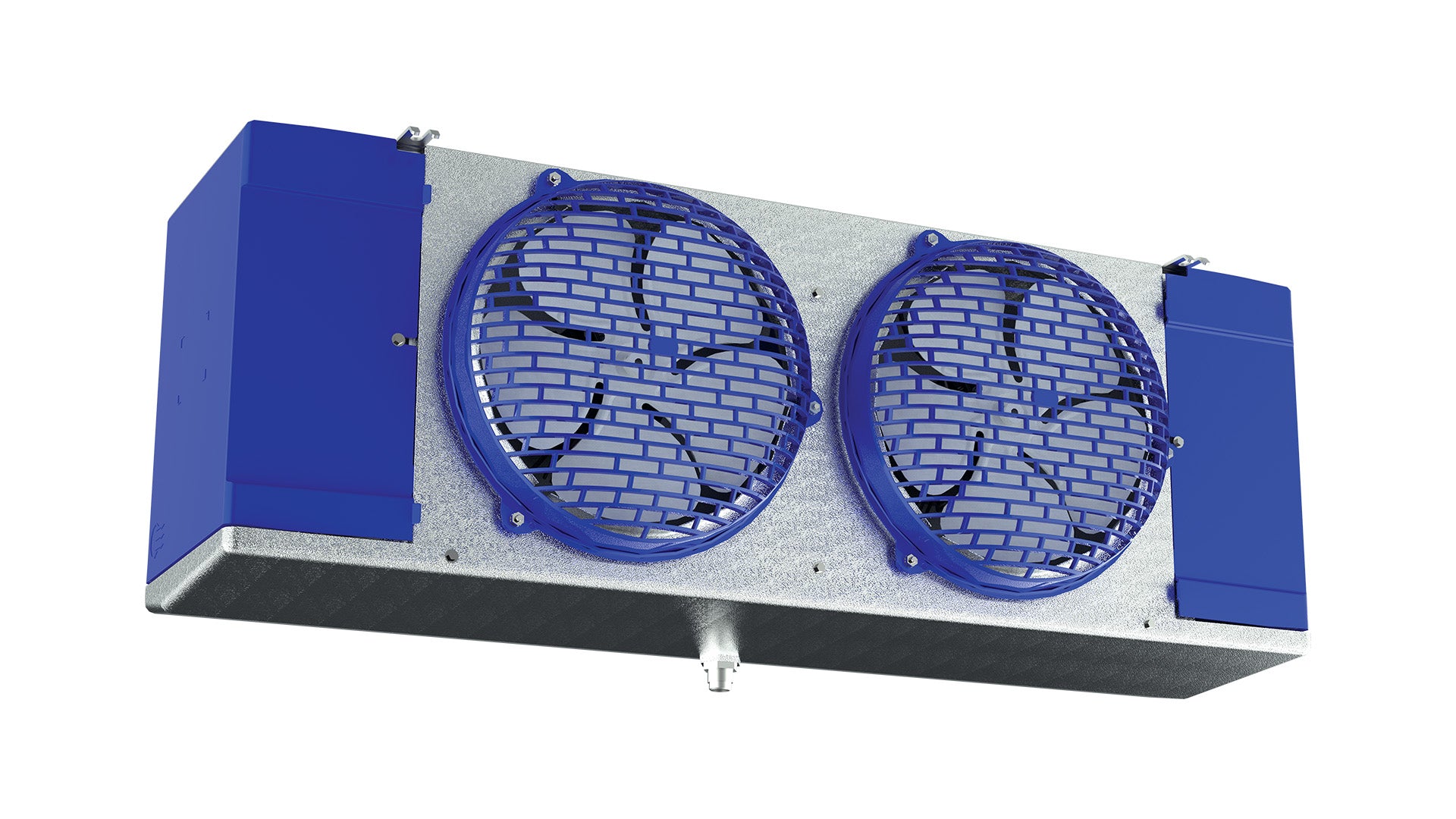

Bohn BEL0130BS6EMAB0000 Low Profile Unit Cooler 13,500 BTU

Product Description

The BOHN BEL0130BS6EMAB0000 low profile unit cooler is engineered for efficiency and improved air circulation. Designed for freezer applications, it features hinged and removable access panels, along with a hinged drain pan. The unit is designed for use with R-448A refrigerant and has an electric defrost type. Operates at 208-230/1/60 voltage.

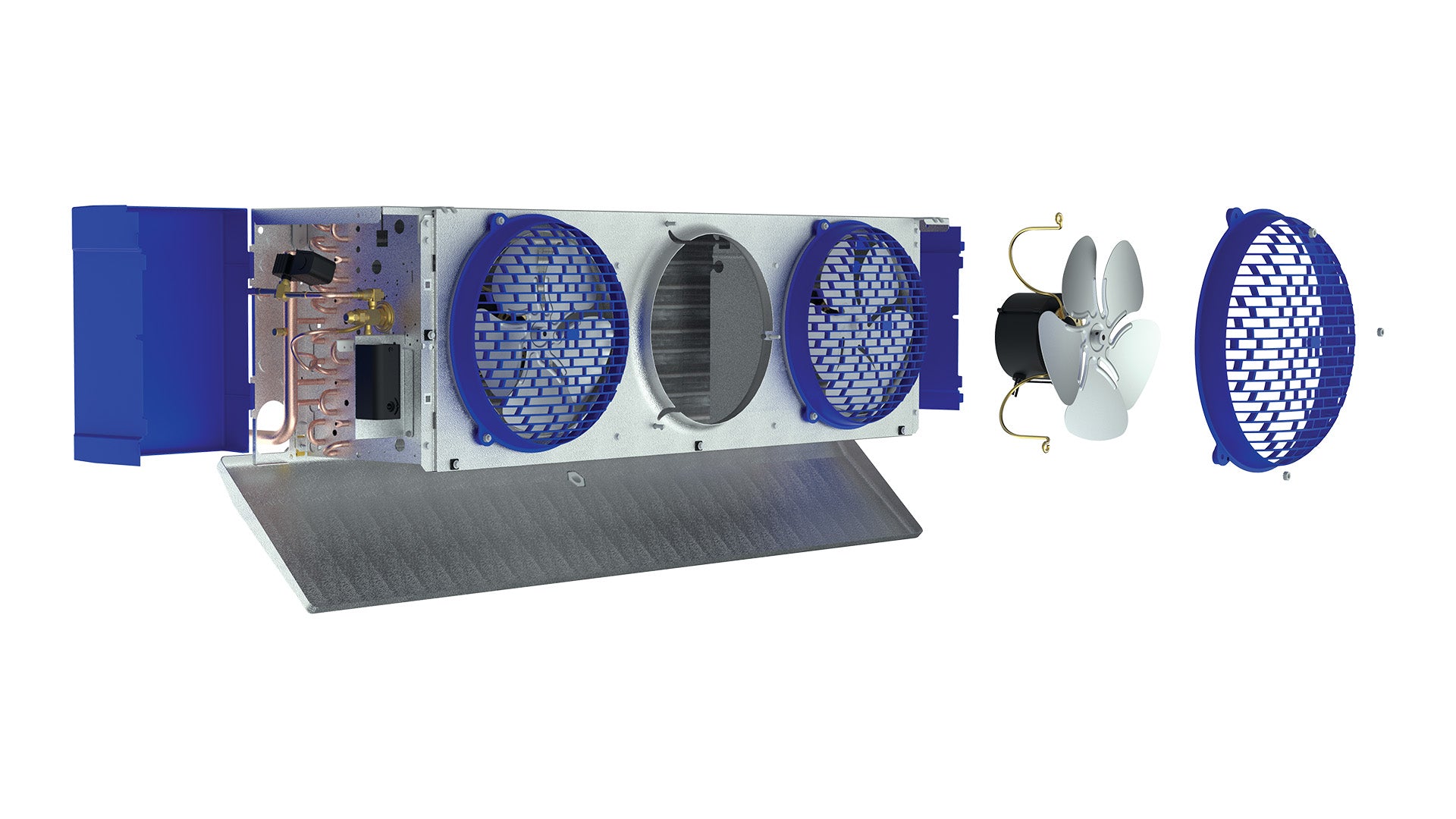

• Features hinged and removable access panels
• Equipped with a hinged drain pan
• Includes an easy service motor mount

Product Highlights

This low profile unit cooler is ideal for walk-in freezers, offering efficient cooling and easy maintenance with its accessible design.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BEL0130BS6EMAB0000

Technical Specifications

• Brand: Bohn
• MPN: BEL0130BS6EMAB0000
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Classification: current
• Application: Freezer
• Voltage: 208-230/1/60
• Defrost Type: Electric Defrost
• FPI: 6
• Rating Point F: 10°F TD -20°F SST
• Refrigerant: R-448A
• Capacity BTUH: 13,500
• CFM: 2,056
• Height (In.): 16.4375
• Depth In: 13.25
• Length (in.): 61.5
• Motor Type: ECM
• Number of Fans: 3
• Motor HP: 1/20
• Unit MCA: 1.6
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 177
• Motor Amps: 1.5
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 13.7
• Defrost Heater Watts: 3150
• Coil Inlet OD: 1/2
• Suction Od: 7/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4"
• Coil Type: Aluminum Fin, Copper Tube
• Connection Size: 3/4 in
• Connection Type: MPT
• Fins per Inch: 6 FPI
• Frequency Rating: 60 Hz
• HP Rating: 1/20 hp
• Material: Stainless Steel
• Motor Number of Speeds: 2
• Phase: 1 ph
• Power Rating: 165 W
• Voltage Rating: 208 to 230 V
• Additional Information: Electric Defrost Style, 15 A Maximum Overcurrent Protection Device, 1.6 A Minimum Current Ampacity, 5/8 in Suction, 1/2 in Coil Inlet, 1/4 in External Equalizer
