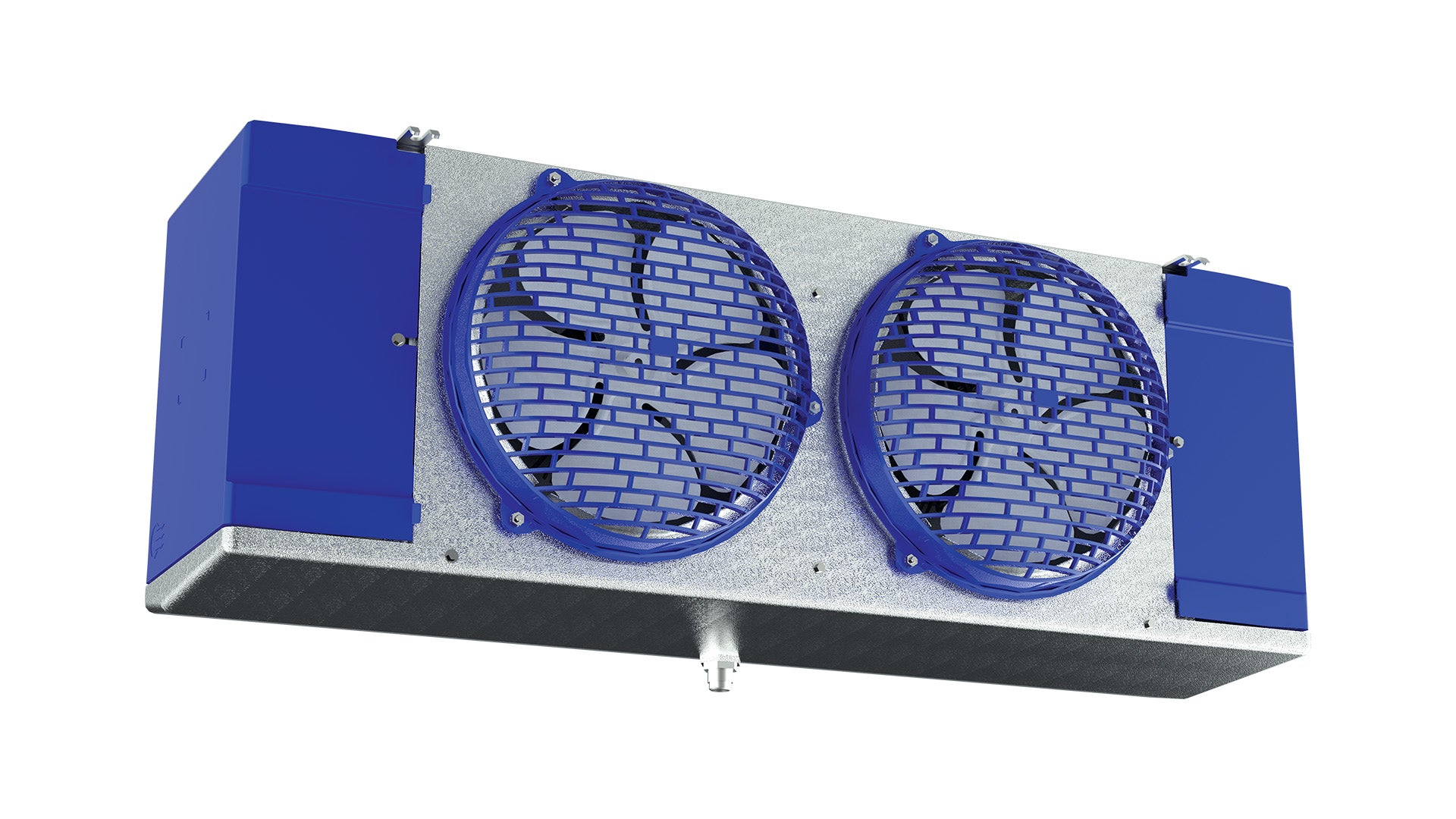

Bohn BEL0100BS6EMAB0200 Low Profile Unit Cooler 9,900 BTU

Product Description

The BOHN BEL0100BS6EMAB0200 is a low-profile unit cooler engineered for walk-in cooler applications. It features hinged and removable access panels and a hinged drain pan for ease of maintenance. The unit incorporates a 2-speed EC motor for improved air circulation. Designed with enhanced tubing and fin design for increased efficiency, it is suitable for use with R-448A refrigerant and includes an electric defrost system.

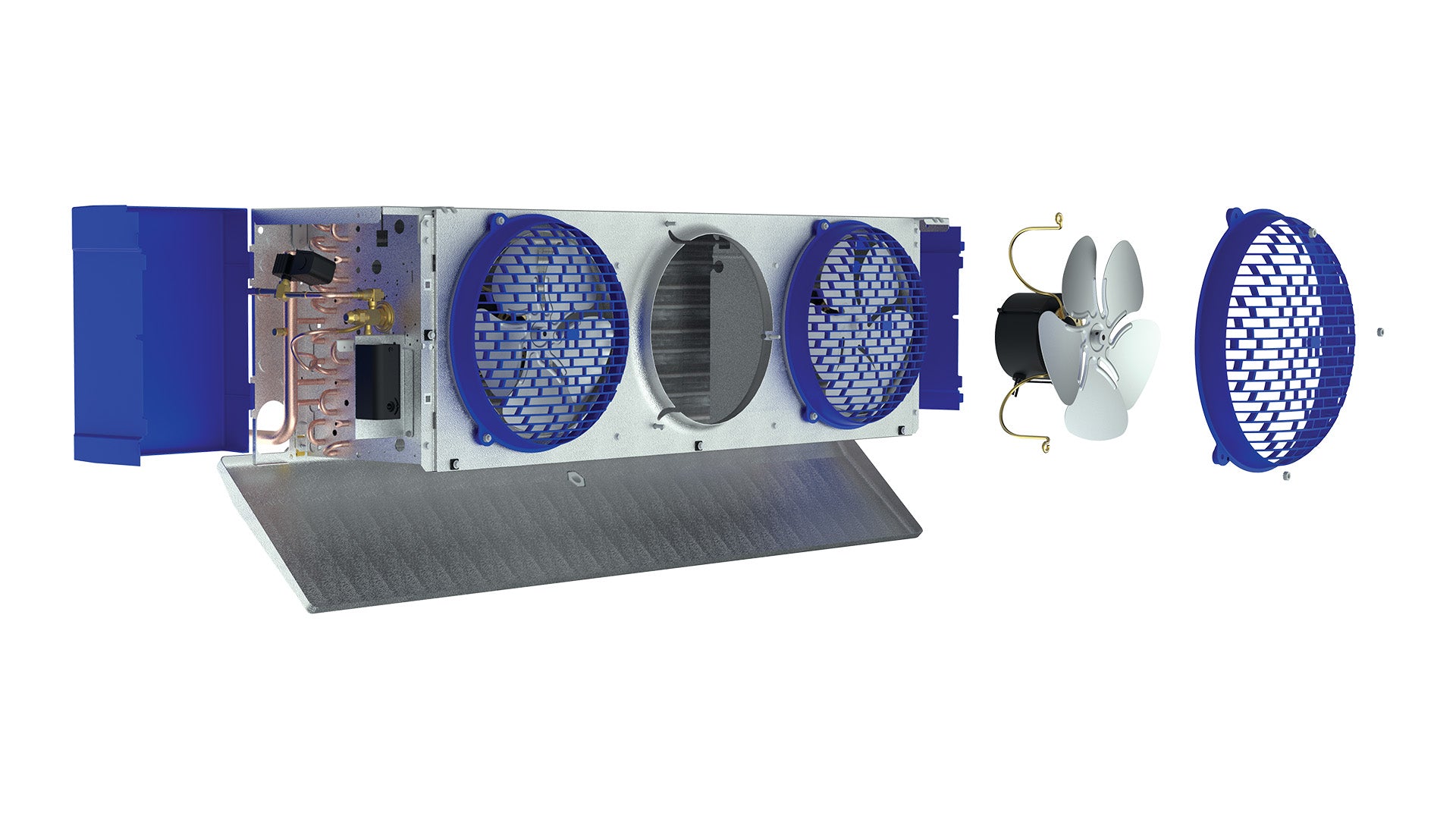

• Features hinged and removable access panels.
• Equipped with a 2-speed EC motor.
• Designed for walk-in cooler applications.

Product Highlights

The BOHN BEL0100BS6EMAB0200 low-profile unit cooler is ideal for walk-in cooler applications, offering ease of maintenance and improved air circulation.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BEL0100BS6EMAB0200

Technical Specifications

• Brand: Bohn
• MPN: BEL0100BS6EMAB0200
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Application: Cooler
• Voltage: 208-230/1/60
• Defrost Type: Electric Defrost
• Fins Per Inch: 6
• Refrigerant: R-448A
• Capacity BTUH: 9,900
• CFM: 1,281
• Height (In.): 16.4375
• Depth (In.): 13.25
• Length (In.): 45.5
• Motor Type: 2-Speed EC
• Number of Fans: 2
• Motor HP: 1/20
• Unit MCA: 1.1
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 110
• Motor Amps: 1
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 9.1
• Defrost Heater Watts: 2100
• Coil Inlet OD: 1/2
• Suction OD: 7/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4
• Tier: 2
• Voltage Rating: 208 to 230 V
• Amperage Rating: 1 A
• BTU Rating: 9900 Btu/hr
• CFM Rating: 1281 cfm
• Coil Type: Aluminum Fin, Copper Tube
• Connection Size: 3/4 in
• Connection Type: MPT
• Dimensions: 45-1/2 in L x 16-7/16 in H x 13-1/4 in D
• Frequency Rating: 60 Hz
• HP Rating: 1/20 hp
• Material: Stainless Steel
• Motor: ECM
• Number of Speeds: 2
• Phase: 1 ph
• Power Rating: 110 W
• Refrigerant Type: R-404A, R-448A, R-449A
• Temperature Rating: 10 to 25 deg F
• Additional Information: Electric Defrost Style, 15 A Maximum Overcurrent Protection Device, 1.1 A Minimum Current Ampacity, 5/8 in Suction, 1/2 in Coil Inlet, 1/4 in External Equalizer
