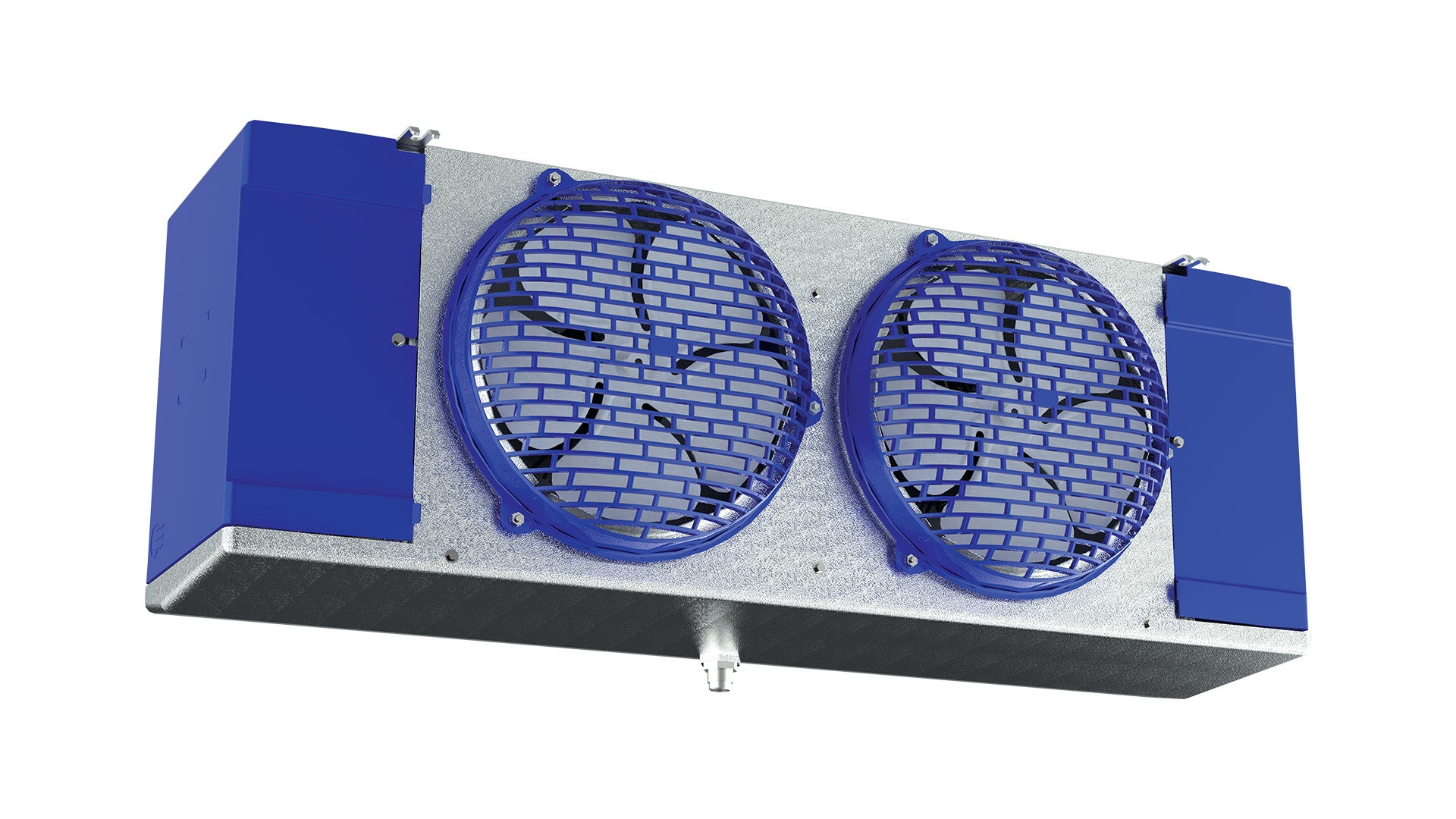

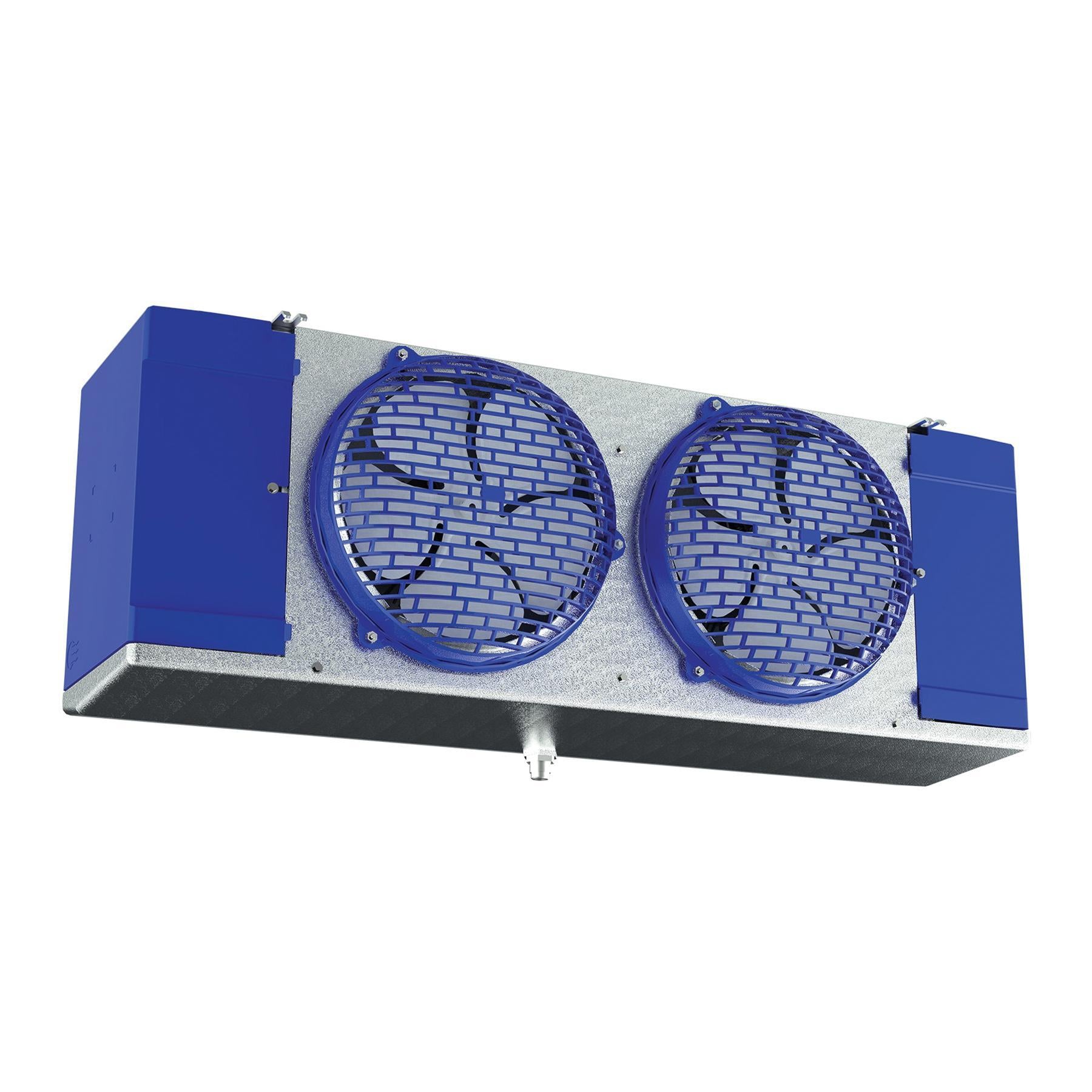

Bohn BEL0065BS6EMAB0000 Low Profile Walk-In Unit Cooler 7,200 BTU

Product Description

The BOHN BEL0065BS6EMAB0000 low profile walk-in unit cooler is engineered for efficiency and improved air circulation. Designed for freezer applications, it features hinged and removable access panels, a hinged drain pan, and an easy-service motor mount. It uses R-448A refrigerant and has an electric defrost type. Ideal for walk-in freezers requiring efficient cooling.

• Engineered for efficiency and improved air circulation

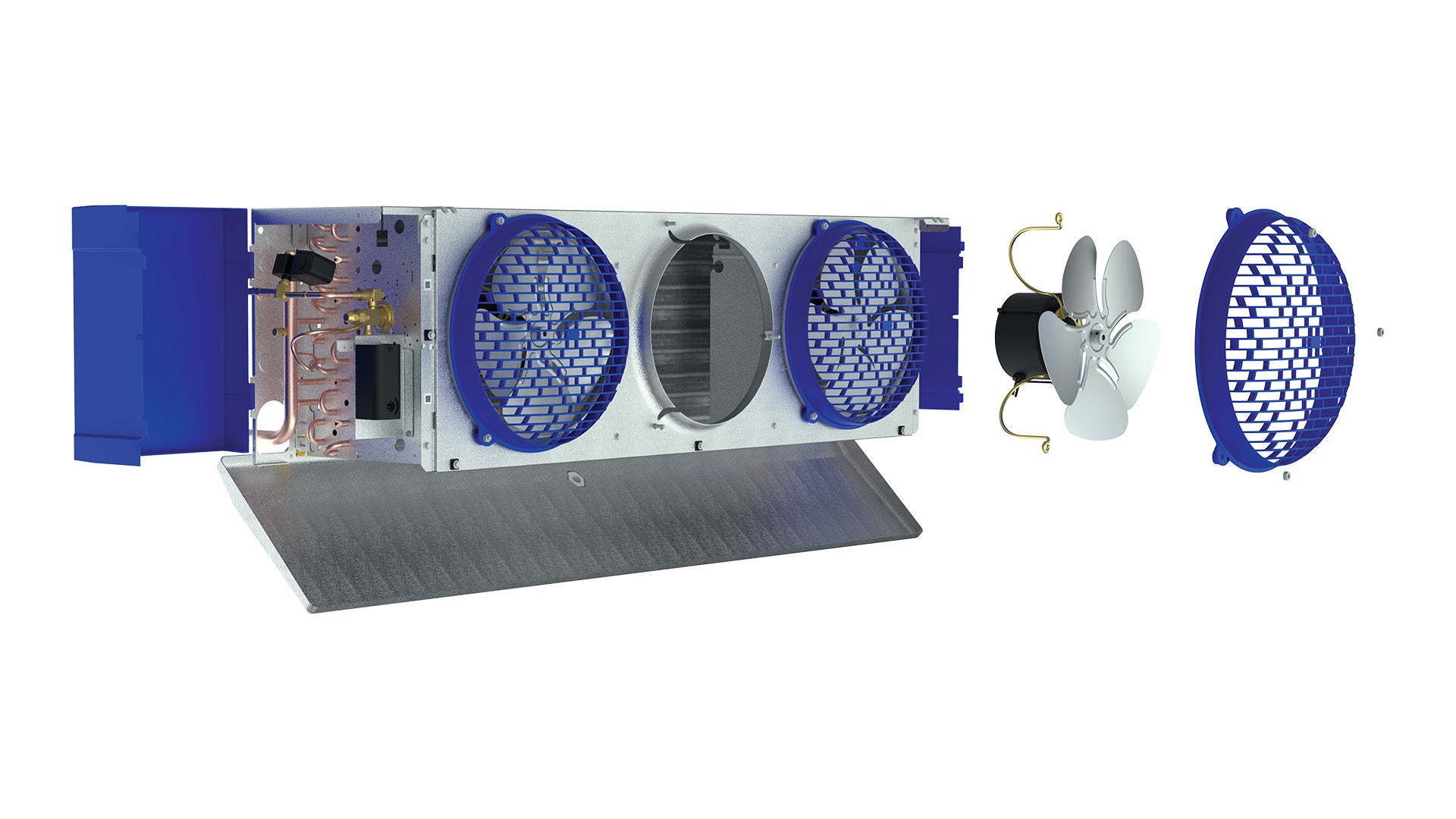

• Features hinged and removable access panels and a hinged drain pan
• Equipped with an easy service motor mount

Product Highlights

Efficient walk-in unit cooler with hinged access panels for freezers. Features electric defrost and easy motor mount.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BEL0065BS6EMAB0000

Technical Specifications

• Product Brand: Bohn
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Classification: current
• Application: Freezer
• Voltage: 208-230/1/60
• Defrost Type: Electric Defrost
• FPI: 6
• Dual Rated: true
• Rating Point F: 10°F TD -20°F SST
• Refrigerant: R-448A
• Capacity BTUH: 7,200
• CFM: 1,371
• Height (In.): 16.4375
• Depth In: 13.25
• Length (in.): 45.5
• Motor Type: ECM
• No Of Fans: 2
• Motor HP: 1/20
• Unit MCA: 1.1
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 110
• Motor Amps: 1
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 9.1
• Defrost Heater Watts: 2100
• Coil Inlet OD: 1/2
• Suction Od: 5/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4
• Coil Type: Aluminum Fin, Copper Tube
• Connection Size: 3/4 in
• Connection Type: MPT
• Fins per Inch: 6 FPI
• Frequency Rating: 60 Hz
• HP Rating: 1/20 hp
• Material: Stainless Steel
• Number of Fans: 2
• Number of Speeds: 2
• Phase: 1 ph
• Power Rating: 110 W
• Temperature Rating: -20 to 10 deg F
