Bohn BEL0045AS6AMAB0000 Low Profile Air Defrost Unit Cooler

Product Description

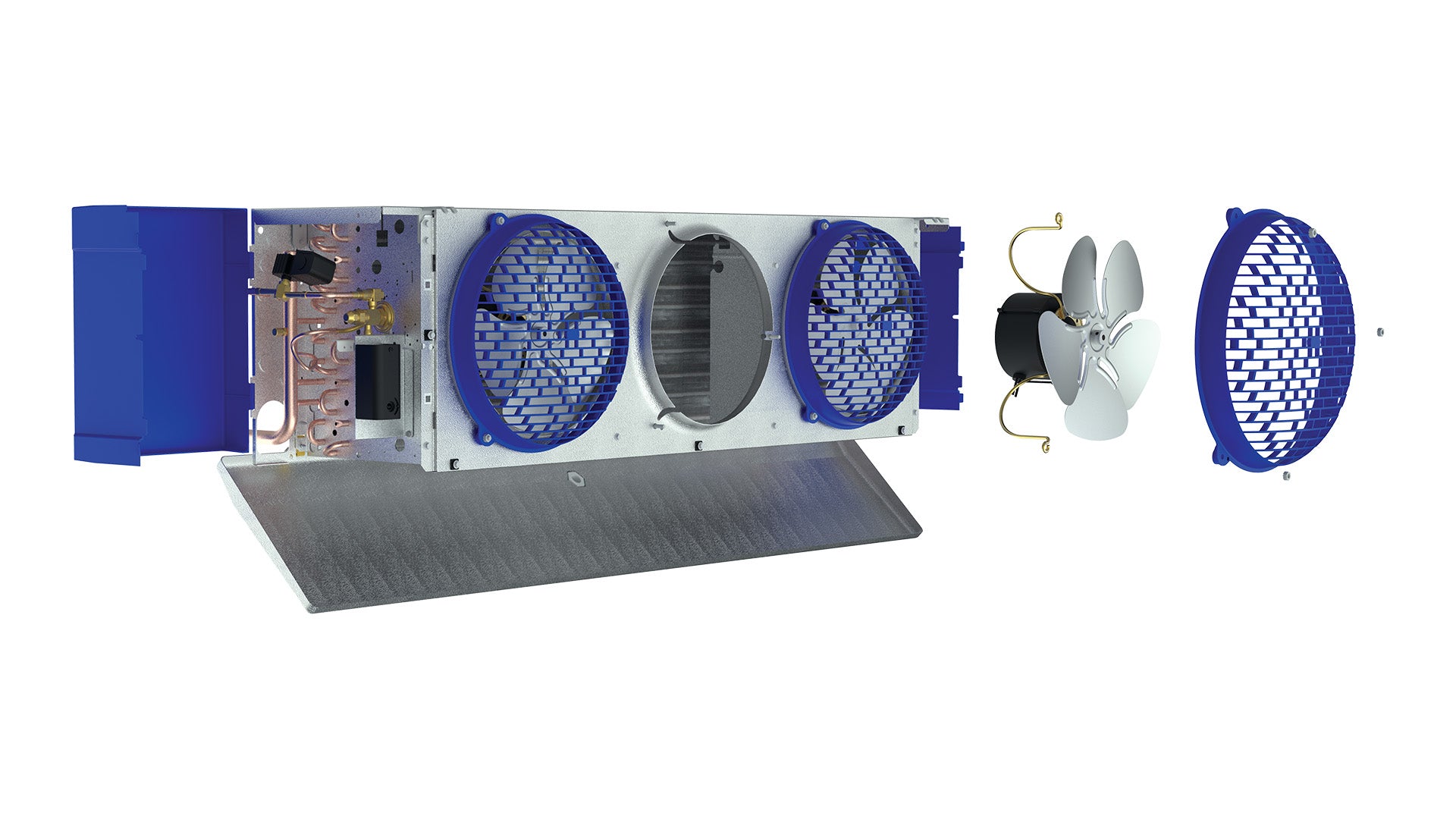

The BOHN BEL0045AS6AMAB0000 is a low-profile unit cooler designed for walk-in cooler applications. It features hinged, removable access panels for servicing electrical and refrigeration components. The unit utilizes a 2-speed EC motor and is designed for air defrost. It incorporates enhanced tubing and fin design for efficiency and improved air circulation.

• Hinged, removable access panels for easy maintenance.
• Equipped with a 2-speed EC motor.
• Designed for air defrost.

Product Highlights

This low-profile unit cooler is ideal for walk-in coolers, offering efficient air defrost and easy maintenance with its accessible design.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BEL0045AS6AMAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Bohn
• MPN: BEL0045AS6AMAB0000
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Classification: current
• Application: Cooler, Medium Temp, High Temp
• Defrost Type: Air Defrost
• Fins Per Inch: 6
• Refrigerant: R-448A, R404A, R449A, R407A, R407F, R407C
• Capacity BTUH: 4,600
• CFM: 653
• Height: 16.4375 in
• Depth: 13.25 in
• Length: 29.5 in
• Motor Type: 2-Speed EC
• Number of Fans: 1
• Motor Horsepower: 1/20
• Input Voltage: 115/1/60
• Unit MCA: 1.1
• Unit MOPD: 20
• Motor Voltage: 115/1/60
• Motor Watts: 55
• Motor Amps: 0.85
• Coil Inlet OD: 1/2
• Suction OD: 1/2
• External Equalizer OD: 1/4
• Drain MPT: 3/4
• UL Listed: Yes
• Voltage: 115 VAC
• Amps: 0.9
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• Phase: Single
• Prop 65: Yes
• Unit Cooler Type: Walk-In
• Minimum Circuit Ampacity (MCA): 1.1
• BTU Rating: 4600 Btu/hr
• CFM Rating: 653 cfm
• Coil Type: Aluminum Fin, Copper Tube
• Connection Type: MPT
• Frequency Rating: 60 Hz
• HP Rating: 1/20 hp
• Material: Stainless Steel
• Number of Speeds: 2
• Power Rating: 55 W
• Refrigerant Type: R-448A
• Temperature Rating: 10 to 25 deg F
