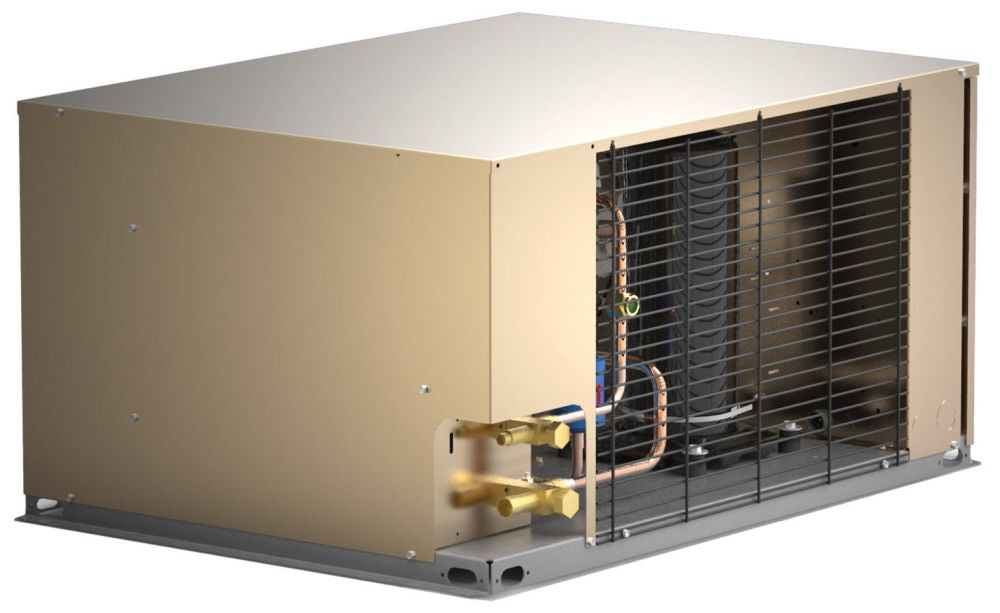

Bohn BCH0055MCACZA0000 Condensing Unit, 5.5 hp 208-230/3 Scroll 1/2 inches x 1-1/8 inches Air-Cooled

Product Description

The BOHN BCH0055MCACZA0000 is a condensing unit with a 5.5 hp motor designed for flexibility and serviceability. It is designed for medium or low temperature applications. Piping connections are externally-mounted, and cabinets are removable for easy access to service components. It operates at 208 to 230 V and delivers 44620 BTU/hr of cooling.

• Microchannel coil technology standard on all units
• Painted steel cabinets for superior strength and corrosion protection
• Heavy-duty, steel, 1-1/2 in tall-base

Product Highlights

This Bohn condensing unit features a Copeland scroll compressor, a standard base, and is suitable for outdoor use.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0055MCACZA0000
• Country of Origin: N/A

Technical Specifications

• Capacity: 44,620 BTUH
• Function: Cooler
• Open Temperature: 95F Ambient 25F SST
• Series-Brand: Bohn
• Type: Condensing Unit
• Voltage: 208-230V
• Additional Information: Medium Temperature, Copeland Scroll Compressor, Standard Base
• Amperage Rating: 27.5 A
• BTU Rating: 44620 Btu/hr
• Connection Size: 1/2 in Liquid, 1-1/8 in Suction
• Finish: Painted
• Frequency Rating: 60 Hz
• HP Rating: 5 hp
• Material: Steel
• Phase: 3 ph
• Refrigerant Type: R-404A
• Sound Level: 63 dBA
• Temperature Rating: 95 deg F
• Brand: Bohn
• Approval: UL (Canada and US)
• Cooling Capacity: 44620 BTU/Hour
• Enclosure Finish: Galvanized
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
• Power Rating: 5 HP
• Number of Phases: 3
