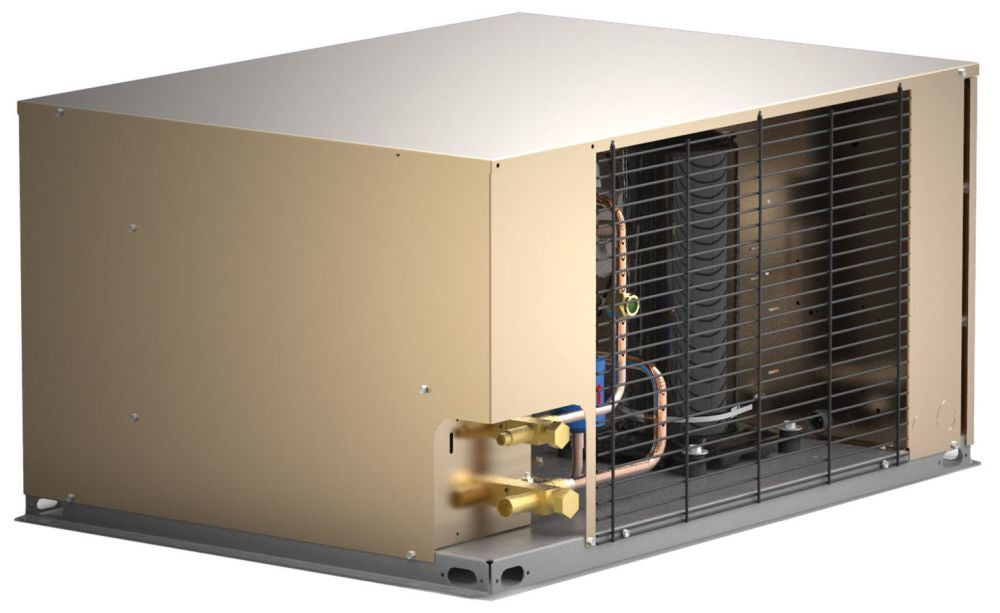

Bohn BCH0050MCACZA0000 Condensing Unit, 5 hp 208-230/3 Scroll 1/2 inches x 1-1/8 inches Air-Cooled

Product Description

The BOHN BCH0050MCACZA0000 is an air-cooled condensing unit with a 5 hp motor, designed for flexibility and serviceability. It features a Copeland hermetic scroll compressor and is suitable for medium temperature applications. The unit operates at 208 to 230 V, 28.5 A, and provides 42790 Btu/hr cooling. Piping connections are externally-mounted and cabinets are removable for easy access to service components.

• Microchannel coil technology standard on all units
• Painted steel cabinets for superior strength and corrosion protection
• Heavy-duty, steel, 1-1/2 in tall-base

Product Highlights

This Bohn condensing unit is energy efficient and approved for use with multiple refrigerants. It can be configured to meet minimum AWEF, Title 24 or other regulations.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0050MCACZA0000

Technical Specifications

• Amperage Rating: 28.5 A
• BTU Rating: 42790 Btu/hr
• Connection Size: 1/2 in Liquid, 1-1/8 in Suction
• Finish: Painted
• Frequency Rating: 60 Hz
• HP Rating: 5 hp
• Material: Steel
• Phase: 3 ph
• Refrigerant Type: R-404A
• Sound Level: 63 dBA
• Temperature Rating: 95 deg F
• Voltage Rating: 208 to 230 V
• Additional Information: Medium Temperature, Copeland Scroll Compressor, Standard Base
• Cooling Capacity: 42790 BTU/Hour
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
• Power Rating: 5 HP
• Type: Medium Temperature, Horizontal Air Discharge, Heavy Duty, Auto-Reset, Scroll Compressor
• Number of Phases: 3
• Approval: UL (Canada and US)
• Capacity: 42,790 BTUH
• Function: Cooler
• Open Temperature: 95F Ambient 25F SST
